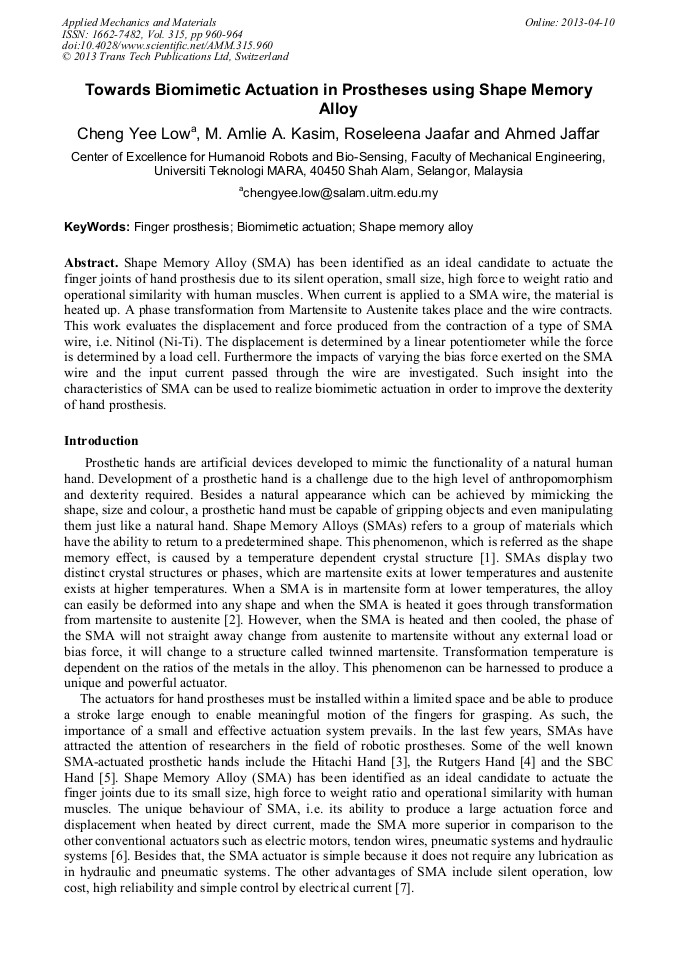

Towards Biomimetic Actuation in Prostheses Using Shape Memory Alloy

Abstract:

Shape Memory Alloy (SMA) has been identified as an ideal candidate to actuate the finger joints of hand prosthesis due to its silent operation, small size, high force to weight ratio and operational similarity with human muscles. When current is applied to a SMA wire, the material is heated up. A phase transformation from Martensite to Austenite takes place and the wire contracts. This work evaluates the displacement and force produced from the contraction of a type of SMA wire, i.e. Nitinol (Ni-Ti). The displacement is determined by a linear potentiometer while the force is determined by a load cell. Furthermore the impacts of varying the bias force exerted on the SMA wire and the input current passed through the wire are investigated. Such insight into the characteristics of SMA can be used to realize biomimetic actuation in order to improve the dexterity of hand prosthesis.

• Periodical: Applied Mechanics and Materials (Volume 315)
• Pages: 960-964
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.315.960
• Online since: April 2013
• Authors: Cheng Yee Low, M. Amlie A. Kasim, Roseleena Jaafar, Ahmed Jaffar
• Keywords: Biomimetic Actuation, Finger Prosthesis, Shape Memory Alloy (SMA)

References

[1] Ti-Ni Aerospace , Inc. Shape Memory Alloy 2235 Polvorosa Ave, San Leandro, LA 94577.

[2] A. B. Soares, Shape Memory Alloy Actuators for Upper Limb Prostheses, PhD Thesis: University of Edinburgh, (1997).

[3] N. Yoshiyuki et al., Hitashi's Robot Hand, Robotics Age 6 (1984).

[4] Kathryn J. De Laurentis and C. Mavroidis, Mechanical Design of a Shape Memory Alloy Actuated Prosthetic Hand, Technology and Health Care 10 (2002) 91–106.

DOI: 10.3233/thc-2002-10202

[5] Kyu-Jin Cho, Rosmarin, J., and Asada, H., SBC Hand: A Lightweight Robotic Hand with an SMA Actuator Array implementing C-segmentation, Robotics and Automation, IEEE International Conference (2007) 921 – 926.

DOI: 10.1109/robot.2007.363103

[6] K. D. Charles Pfeiffer and Constantinos Mavroidis, Shape Memory Alloy Actuated Robotic Prostheses: Initial Experiments, Robotics and Automation (1999).

DOI: 10.1109/robot.1999.770462

[7] V. Bundhoo, E. Haslam, B. Birch, and E. J. Park, A shape memory alloy based tendon-drive actuation system for biomimetic artificial fingers Part 1: Design and Evaluation, Cambridge Journals (2009).

DOI: 10.1017/s026357470800458x

[8] DYNALLOY, Inc. Maker of Dynamic Alloys, Technical Characteristics of Flexional.

[9] N. Ma and G. Song, Control of shape memory alloy actuator using pulse width modulation, Smart Materials and Structures 12(5) (2003) 712-719.

DOI: 10.1088/0964-1726/12/5/007
