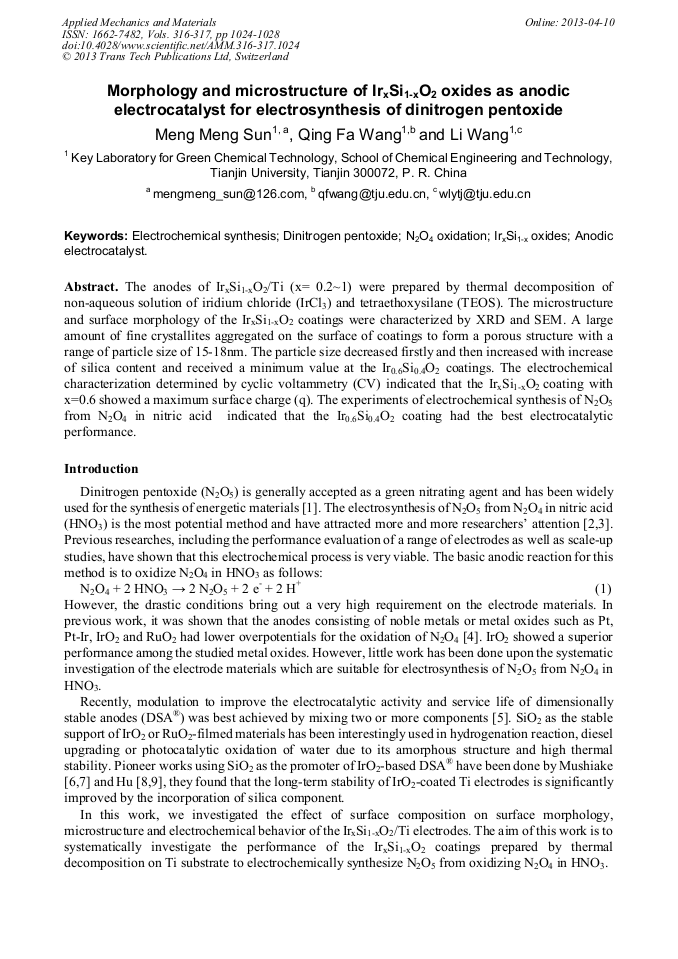

Morphology and Microstructure of Ir_xSi_1-xO₂ Oxides as Anodic Electrocatalyst for Electrosynthesis of Dinitrogen Pentoxide

Abstract:

The anodes of IrxSi1-xO2/Ti (x= 0.2~1) were prepared by thermal decomposition of non-aqueous solution of iridium chloride (IrCl3) and tetraethoxysilane (TEOS). The microstructure and surface morphology of the IrxSi1-xO2 coatings were characterized by XRD and SEM. A large amount of fine crystallites aggregated on the surface of coatings to form a porous structure with a range of particle size of 15-18nm. The particle size decreased firstly and then increased with increase of silica content and received a minimum value at the Ir0.6Si0.4O2 coatings. The electrochemical characterization determined by cyclic voltammetry (CV) indicated that the IrxSi1-xO2 coating with x=0.6 showed a maximum surface charge (q). The experiments of electrochemical synthesis of N2O5 from N2O4 in nitric acid indicated that the Ir0.6Si0.4O2 coating had the best electrocatalytic performance.

• Periodical: Applied Mechanics and Materials (Volumes 316-317)
• Pages: 1024-1028
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.316-317.1024
• Online since: April 2013
• Authors: Meng Meng Sun, Qing Fa Wang, Li Wang
• Keywords: Anodic Electrocatalyst, Dinitrogen Pentoxide, Electrochemical Synthesis, Ir_xSi_1-x Oxides, N₂O₄ Oxidation

References

[1] J.P. Agrawal, High Energy Materials Propellants, Explosives and Pyrotechnics, John Wiley Sons, Chichester, 2010.

[2] C.A.C. Sequeira, D.M.F. Santos, Electrochemical routes for industrial synthesis, J. Braz. Chem. Soc. 20 (2009) 387-406.

[3] G.E.G. Bagg, D.A. Salter, A.J. Sanderson, U.S. Patent 5,128,001 (1992).

[4] J.E. Harrar, R. Quong, L.P. Rigdon and R.R. McGuire, Scale-Up Studies of the Electrosynthesis of Dinitrogen Pentoxide in Nitric Acid, J. Electrochem. Soc. 144 (1997) 2032-2044.

DOI: 10.1149/1.1837739

[5] E. Guerrini, S. Trasatti, Recent developments in understanding factors of electrocatalysis, Russian J. Electrochem. 42 (2006) 1017-1025.

DOI: 10.1134/s1023193506100053

[6] K. Mushiake, K. Matsusaka, N. Masuko, Extension of Lifetime of IrO2/Ti Electrode through the Addition of Silica Sol to the Coating Solution of the Catalyst, J. Surf. Finish. Soc. Jan. 46 (1995) 70-74.

DOI: 10.4139/sfj.46.70

[7] K. Mushiake, Y. Mitsuda, A. Shida, M. Horiguchi, S. Yamashita and K. Matsusaka, Gradient of the silica content in IrO2-SiO2 catalyst layers stacked on a titanium substrate, Denki Kagaku 65 (1997) 1107-1109.

DOI: 10.5796/kogyobutsurikagaku.65.1107

[8] X.M. Wang, J.M. Hu, J.Q. Zhang, IrO2-SiO2 binary oxide films: Preparation, physiochemical characterization and their electrochemical properties, Electrochim. Acta 55(2010) 4587-4593.

DOI: 10.1016/j.electacta.2010.03.014

[9] J.J. Zhang, J.M. Hu, J.Q. Zhang and C. N. Cao, IrO2-SiO2 binary oxide films: geometric or kinetic interpretation of the improved electrocatalytic activity for the oxygen evolution reaction, Int. J. Hydrogen Energy. 36 (2011) 5218-5226.

DOI: 10.1016/j.ijhydene.2011.01.131

[10] F.I. Mattos-Costa, P. de Lima-Neto, S.A.S. Machado and L.A. Avaca, Characterisation of surfaces modified by sol-gel derived RuxIr1-xO2 coatings for oxygen evolution in acid medium, Electrochim. Acta 44 (1998) 1515-1523.

DOI: 10.1016/s0013-4686(98)00275-8

[11] Q. Wang, M. Su, X. Zhang, L. Wang, J. Wang and Z. Mi, Electrochemical synthesis of N2O5 by oxidation of N2O4 in nitric acid with PTFE membrane, Electrochimica Acta, 52(2007) 3667-3672.

DOI: 10.1016/j.electacta.2006.10.034
