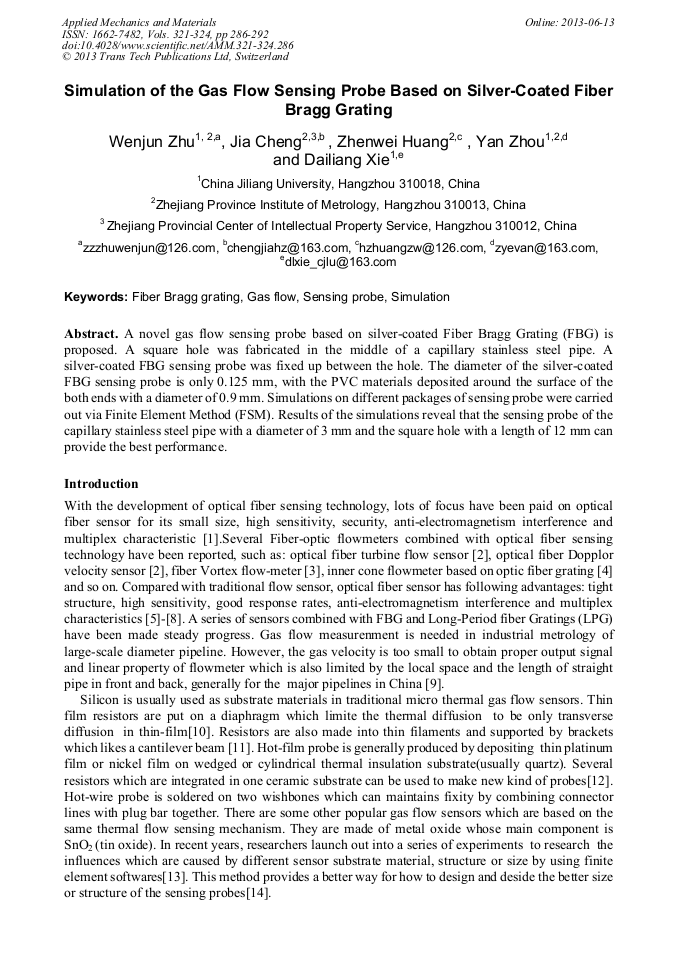

Simulation of the Gas Flow Sensing Probe Based on Silver-Coated Fiber Bragg Grating

Article Preview

Abstract:

A novel gas flow sensing probe based on silver-coated Fiber Bragg Grating (FBG) is proposed. A square hole was fabricated in the middle of a capillary stainless steel pipe. A silver-coated FBG sensing probe was fixed up between the hole. The diameter of the silver-coated FBG sensing probe is only 0.125 mm, with the PVC materials deposited around the surface of the both ends with a diameter of 0.9 mm. Simulations on different packages of sensing probe were carried out via Finite Element Method (FSM). Results of the simulations reveal that the sensing probe of the capillary stainless steel pipe with a diameter of 3 mm and the square hole with a length of 12 mm can provide the best performance.
