Study on the Influencing Factors of Gas Mixing Length in Nitrogen Displacement of Gas Pipeline

Abstract:

The gas pipeline commissioning replacement is a vital section before the pipes being put into operation. It is related to the gas mixture length of segment regardless the replacement method, the gas mixing length theory formula is derived based on diffusion theory and convection diffusion equation. Taking the impact factors of gas movement into account, with software FLUENT, this paper simulated different flow regimes, pipe length, diameter, velocity, back pressure and temperature to influence the gas mixing length, the general influence law of various factors is identified. That is the gas mixing length increases with the increasing of pipe length, diameter, velocity, back pressure and temperature, the corresponding mixing length and displacement time are longer at laminar flow. The research results provide theoretical basis for the natural gas pipeline commissioning replacement to determine reasonable parameters.

You might also be interested in these eBooks

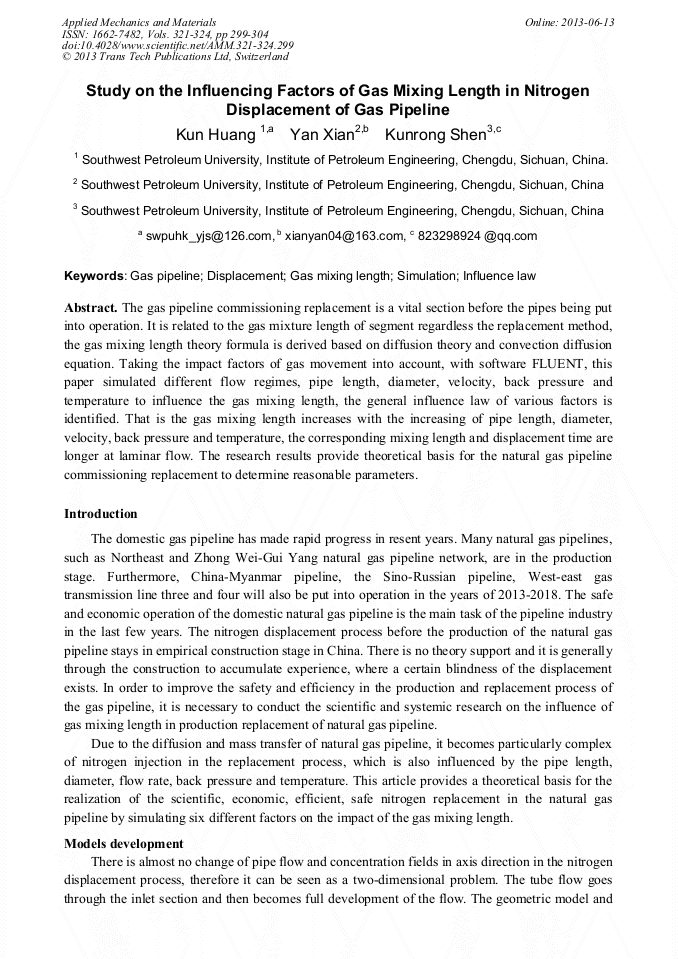

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 321-324)

Pages:

299-304

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.321-324.299

Citation:

Cite this paper

Online since:

June 2013

Authors:

Huang Kun, Yan Xian, Kun Rong Shen

Keywords:

Displacement, Gas Mixing Length, Gas Pipeline, Influence Law, Simulation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Fu ChunLi.( 2011) 'Influencing factors of gas-mixing length during nitrogen purging & packing course of gas pipeline', Journal of Oil and Gas Storage and Transportation, Vol. 30, pp.94-96.

Google Scholar

[2] Hu Qihui. (2006) 'Natural gas pipelines nitrogen replacement the mixed gas segment law research'. China University of Petroleum.

Google Scholar

[3] Duan wei etc. (2012) 'Study on Length of Gas Mixture Segment for Commissioning Replacement of Long-distance Gas Pipeline', Journal of Natural Gas and Oil, Vol. 30, pp.5-7.

Google Scholar

[4] Gao Wei. (2009) 'Purged with nitrogen gas mixing length of natural gas pipelines influencing factors'. Journal of Surface Engineering of Oil and Gas Fields, Vol. 28, pp.49-50.

Google Scholar

[5] Xue Jijun etc. (2006) 'Study on gas mixing regulation of gas displacement operation for gas transmission pipeline commissioning'. Journal of Natural Gas Industry, Vol. 26, pp.147-149.

Google Scholar

[6] Guo Yimin etc. (2006) 'Numerical simulation on gas mixing rule in course of nitrogen isolation gas displacement technology for commissioning of gas transmission pipeline.' Journal of Oil Field Equipment, Vol. 35, pp.31-34.

Google Scholar
