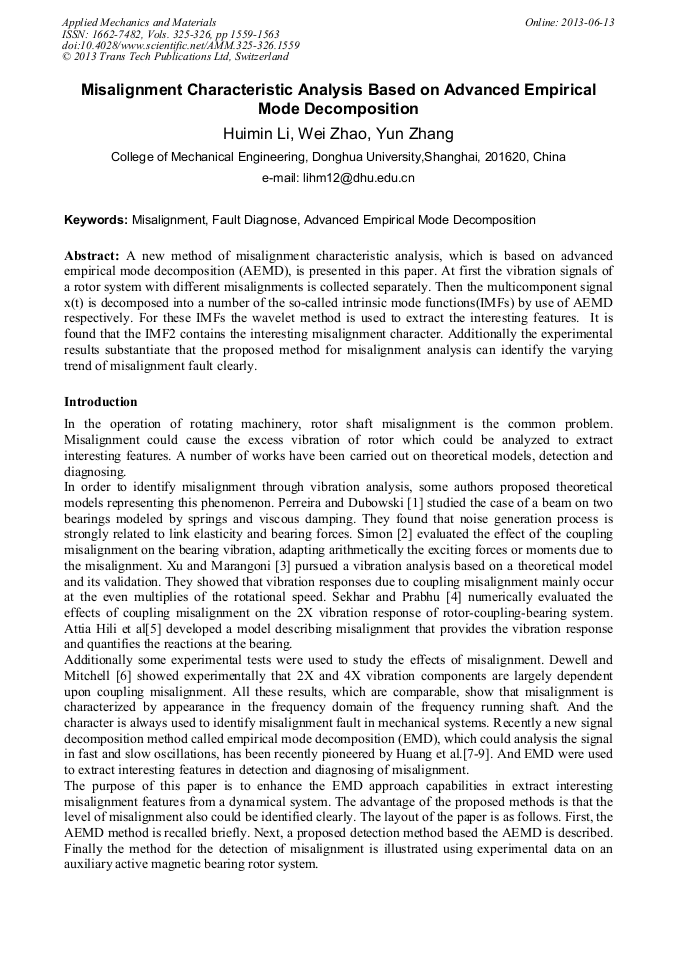

Misalignment Characteristic Analysis Based on Advanced Empirical Mode Decomposition

Abstract:

A new method of misalignment characteristic analysis, which is based on advanced empirical mode decomposition (AEMD), is presented in this paper. At first the vibration signals of a rotor system with different misalignments is collected separately. Then the multicomponent signal x (t) is decomposed into a number of the so-called intrinsic mode functions (IMFs) by use of AEMD respectively. For these IMFs the wavelet method is used to extract the interesting features. It is found that the IMF2 contains the interesting misalignment character. Additionally the experimental results substantiate that the proposed method for misalignment analysis can identify the varying trend of misalignment fault clearly.

• Periodical: Applied Mechanics and Materials (Volumes 325-326)
• Pages: 1559-1563
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.325-326.1559
• Online since: June 2013
• Authors: Hui Min Li, Wei Zhao, Yun Zhang
• Keywords: Advanced Empirical Mode Decomposition, Fault Diagnosis, Misalignment

References

[1] N.D. Perreira and S. Dubowsky, Analytical Method to Predict Noise Radiation from Vibrating Machine Systems. Journal of the Acoustical Society of America, Vol 67(1980), pp.551-563

DOI: 10.1121/1.383921

[2] Simon G, Prediction of vibration behavior of large turbo machinery on elastic foundation due to unbalance and coupling misalignment. Proc. of the Institution of Mechanical Engineers. J. Mech. Engr .206(1992), pp.29-39

DOI: 10.1243/pime_proc_1992_206_092_02

[3] M. xu and R.D. Marangoni, Vibration Analysis of a Motor-Flexible Coupling System Subject to a Misalignment and Unbalance, Part 1: Theoretical Mode and Analysis. Journal of Sound and Vibration, Vol 176(1994), pp.663-691

DOI: 10.1006/jsvi.1994.1405

[4] Sekhar AS and Prabhu BS, Effects of coupling misalignment on Vibrations of rotating machinery. Journal of Sound Vibration. Vol 185(1995), pp.655-671

DOI: 10.1006/jsvi.1995.0407

[5] T. Fakhfakh,M. Attia Hili, L. Hammami, and M. Haddar, Angular Misalignment Effect on Bearings Dynamical Behaviour. The Arabian Journal for Science and Engineering, Vol 29(2004), pp.69-80

[6] Dewell DL and Mitchell LD, Detection of a misaligned disk coupling using spectrum analysis. ASME Trans. J. Vibration, Acoustics, Stress & Reliability Design, Vol 106(1984), pp.9-16

DOI: 10.1115/1.3269161

[7] Huang, N., Shen, Z., Long, S.,Wu, M., Shih, H., Zheng, Q.,Yen, N.-C.,Tung, C., and Liu, H., The Empirical Mode Decompostion and the Hilbert Spectrum for Nonlinear and Non-Stationary Time Series Analysis. Proceedings of the Royal Society of London, Series A: Mathematical and Physical Sciences, Vol. 454(1998)，p.903–995

DOI: 10.1098/rspa.1998.0193

[8] Huang, N., Shen, Z., and Long, S., A New View of Nonlinear Water Waves: The Hilbert Spectrum.Annual Review of Fluid. Mechanics, Vol. 31(1999), p.417–457

DOI: 10.1146/annurev.fluid.31.1.417

[9] Huang, N.,Wu, M.-L., Long, S. R., Shen, S., Qu,W., Gloersen, P., and Fan, K., A Confidence Limit for the Empirical Mode Decomposition and Hilbert Spectral Analysis. roceedings of the Royal Society of London, Series A. Mathematical and Physical Sciences, Vol. 459(2003), p.2317–2345

DOI: 10.1098/rspa.2003.1123

[10] Young S. Lee, Stylianos Tsakirtzis-, Alexander F. Vakakis, Lawrence A.Bergman, and D. Michael McFarland, Physics-Based Foundation for Empirical Mode Decomposition. Vol,47(2009), pp.2938-2963

DOI: 10.2514/1.43207

[11] P.W. Tse, Y.H. Peng, R. Yam, Wavelet analysis and envelope detection for rolling element bearing for rolling element bearing fault diagnosis-their affectivities and flexibilities, Journal of Vibration and Acoustic 123 (2001), p.303–310.

DOI: 10.1115/1.1379745
