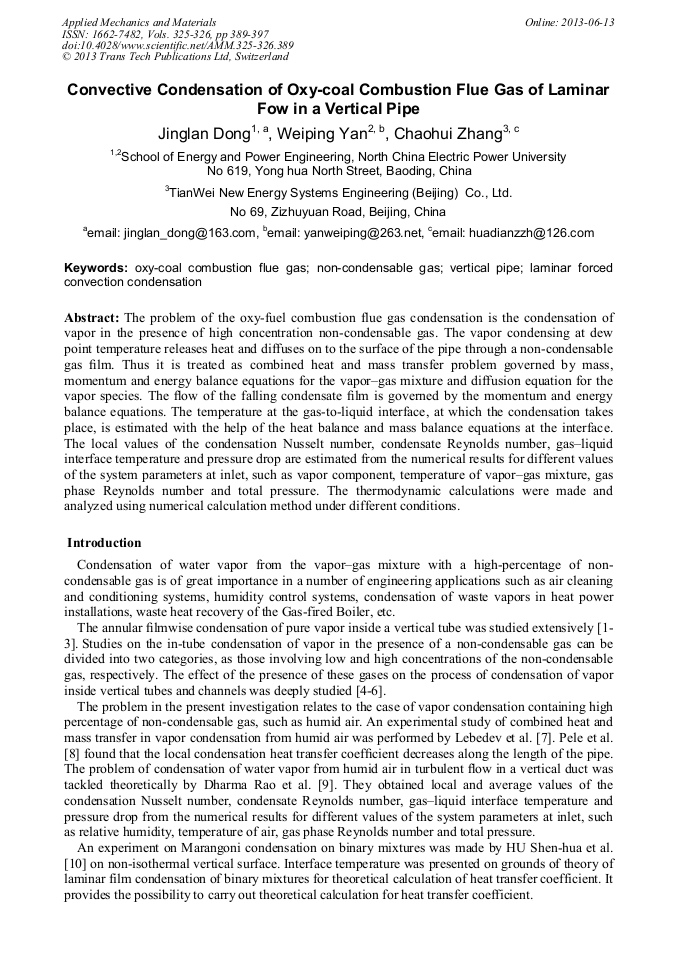

Convective Condensation of Oxy-Coal Combustion Flue Gas of Laminar Fow in a Vertical Pipe

Abstract:

The problem of the oxy-fuel combustion flue gas condensation is the condensation of vapor in the presence of high concentration non-condensable gas. The vapor condensing at dew point temperature releases heat and diffuses on to the surface of the pipe through a non-condensable gas film. Thus it is treated as combined heat and mass transfer problem governed by mass, momentum and energy balance equations for the vaporgas mixture and diffusion equation for the vapor species. The flow of the falling condensate film is governed by the momentum and energy balance equations. The temperature at the gas-to-liquid interface, at which the condensation takes place, is estimated with the help of the heat balance and mass balance equations at the interface. The local values of the condensation Nusselt number, condensate Reynolds number, gasliquid interface temperature and pressure drop are estimated from the numerical results for different values of the system parameters at inlet, such as vapor component, temperature of vaporgas mixture, gas phase Reynolds number and total pressure. The thermodynamic calculations were made and analyzed using numerical calculation method under different conditions.

• Periodical: Applied Mechanics and Materials (Volumes 325-326)
• Pages: 389-397
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.325-326.389
• Online since: June 2013
• Authors: Jing Lan Dong, Wei Ping Yan, Chao Hui Zhang
• Keywords: Laminar Forced Convection Condensation, Non-Condensable Gas, Oxy-Coal Combustion Flue Gas, Vertical Pipe

References

[1] E.F. Carpenter, A.P. Colburn, The effect of vapor velocity on condensation inside tubes, in: Proceedings of the General Discussion on Heat Transfer, IMechE/ASME (1951) 20–26.

[2] K. Lucas, B. Moser, Laminar film condensation of pure vapors in tubes[J].Heat Mass Transfer 22 (1979) 431–435.

DOI: 10.1016/0017-9310(79)90009-7

[3] F. Dobran, R.S. Thorsen, Forced flow laminar film wise condensation of a pure saturated vapor in a vertical tube[J]. Heat Mass Transfer 23 (1980) 161–177.

DOI: 10.1016/0017-9310(80)90194-5

[4] V.M. Borishansky, D.I. Volkov, N.I. Ivashchenko, Effects of non-condensable gas content on heat transfer in steam condensation in a vertical tube, Heat Transfer Sov. Res. 9 (1977) 35–42.

[5] T. Kageyama, P.F. Peterson, V.E. Schrock, Diffusion layer modeling for condensation in vertical tubes with non-condensable gases, Nucl. Eng. Des.141 (1993) 289–302.

DOI: 10.1016/0029-5493(93)90107-k

[6] H.A. Hasanein, M.S. Kazimi, M.W. Golay, Forced convection in-tube steam condensation in the presence of non-condensable gases[J]. Heat Mass Transfer 39 (1996) 2625–2639.

DOI: 10.1016/0017-9310(95)00373-8

[7] P.D. Lebedev, A.M. Baklastov, Zh.F. Sergazin, Aerodynamics, heat and mass transfer in vapor condensation from humid air on a flat plate in a longitudinal flow in asymmetrically cooled slot[J]. Heat Mass Transfer 12 (1969) 833–841.

DOI: 10.1016/0017-9310(69)90150-1

[8] C. Pele, B. Baudoin, J.P. Barrand, Effect of humid air flow rate on the film-wise condensation inside a vertical cooled pipe: numerical and experimental study[J].Heat Mass Transfer 37 (1994) 1829–1837.

DOI: 10.1016/0017-9310(94)90323-9

[9] V. Dharma Rao, V. Murali Krishna, K.V. Sharma, P.K. Sarma, A theoretical study on convective condensation of water vapor from humid air in turbulent flow in a vertical duct, ASME [J].Heat Transfer 129 (2007) 1627–1637.

DOI: 10.1115/1.2767678

[10] HU Shenhua ,YAN Junjie , LI Yang. Interface Temperature of Condensate for Binary Mixtures[J]. Proceedings of the CSEE, 31(2011)68-73.

[11] MA Kai, YAN Wei-ping, GAO Zheng-yang. Physical Properties and convective heat-transfer coefficients of flue gas from pressurized oxy-fuel combustion[J]. Journal of Power Engineering 29 (2007) 697-701.

[12] Jiang Weijun, Dai Youyuan, Gu Huijun. 2002. Principles of Chemical Engineering. M. Beijing, Tsinghua University Press,17-18.

[13] S.S. Sastry, Introductory Methods of Numerical Analysis, fourth ed., Prentice Hall of India Private Limited, New Delhi, (2006) 270–271.
