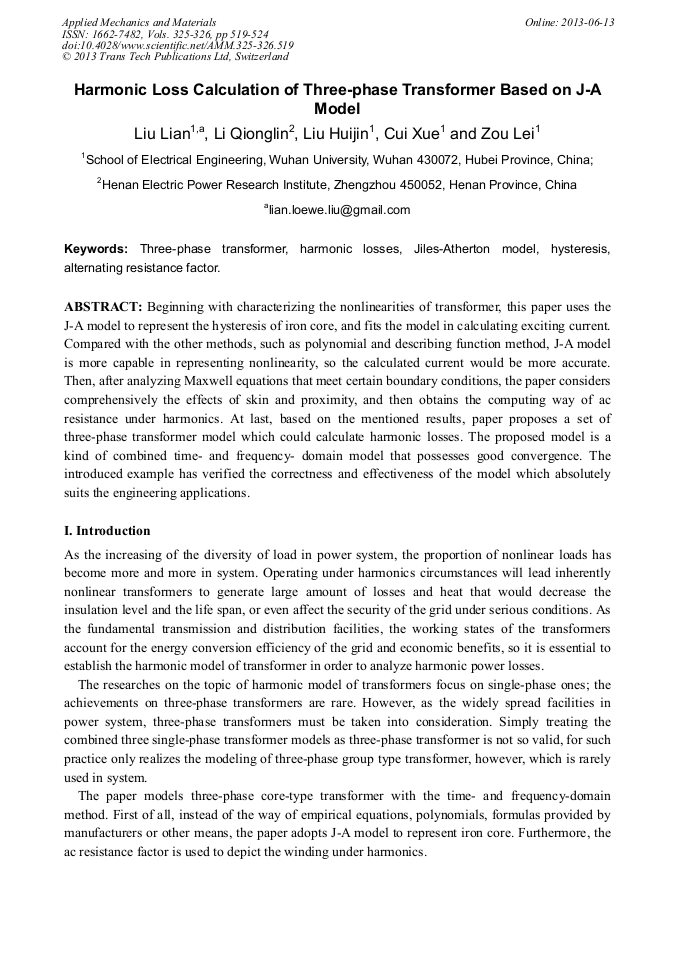

Harmonic Loss Calculation of Three-Phase Transformer Based on J-A Model

Abstract:

Beginning with characterizing the nonlinearities of transformer, this paper uses the J-A model to represent the hysteresis of iron core, and fits the model in calculating exciting current. Compared with the other methods, such as polynomial and describing function method, J-A model is more capable in representing nonlinearity, so the calculated current would be more accurate. Then, after analyzing Maxwell equations that meet certain boundary conditions, the paper considers comprehensively the effects of skin and proximity, and then obtains the computing way of ac resistance under harmonics. At last, based on the mentioned results, paper proposes a set of three-phase transformer model which could calculate harmonic losses. The proposed model is a kind of combined time-and frequency-domain model that possesses good convergence. The introduced example has verified the correctness and effectiveness of the model which absolutely suits the engineering applications.

• Periodical: Applied Mechanics and Materials (Volumes 325-326)
• Pages: 519-524
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.325-326.519
• Online since: June 2013
• Authors: Lian Liu, Qiong Lin Li, Hui Jin Liu, Xue Cui, Lei Zou
• Keywords: Alternating Resistance Factor, Harmonic Losses, Hysteresis, Jiles-Atherton Model, Three-Phase Transformer

References

[1] Ewald F. Fuchs, Mohammad A. S. Masoum. Power Quality in Power Systems and Electrical Machines [M]. ELSEIER, 2008.

[2] J. D. Greene, C. A. Gross. Nonlinear Modeling of Transformers [J]. IEEE Transactions on Industry Applications, 1988, 24(1): 434-438.

DOI: 10.1109/28.2892

[3] S. R. Huang, S. C. Chung, B. N. Chen, Y. H. Chen. A Harmonic Model for The Nonlinearities of Single-phase Transformer with Describing Functions [J]. IEEE Transactions on Power Delivery, 2003, 18(3): 815-820.

DOI: 10.1109/tpwrd.2003.813878

[4] Xu Zheng, Wu Dugui, A Research on Harmonic Model of Three Phase Multi-legged Transformer[J]. Power System Technology. 2003, 27(4): 15-21.

[5] Jiles, D. C, Atherton, D. L. Theory of Ferromagnetic Hysteresis (invited) [J]. Applied Physics, 1984, 55(6):2115 -2120.

DOI: 10.1063/1.333582

[6] J. V. Leite, N. Sadowski, P. Kuo-Peng, N. J. Batistela, and J. P. A. Bastos. The Inverse Jiles–Atherton Model Parameters Identification [J]. IEEE Transactions on Magnetics, 2003, 39(3): 1394-1400.

DOI: 10.1109/tmag.2003.810216

[7] D. C. Jiles, J. B. Thoelke. Numerical Determination of Hysteresis Parameters [J]. IEEE Transactions on Magnetics, 1992, 28(2):27-35.

DOI: 10.1109/20.119813

[8] D. C. Jiles, J. B. Thoelke. Theory of Ferromagnetic Hysteresis Determination of Model Parameters from Experimental Hysteresis Loops [J]. IEEE Transactions on Magnetics, 1989, 25(5): 3928-3930

DOI: 10.1109/20.42480

[9] William Gerard Hurley, Eugene Gath, John G. Breslin. Optimizing the AC Resistance of Multilayer Transformer Windings with Arbitrary Current Waveforms [J]. IEEE Transactions on Magnetics, 2000, 15(2): 369-376.

DOI: 10.1109/63.838110

[10] Jan A. Ferreira. Improved Analytical Modeling of Conductive Losses in Magnetic Components [J]. IEEE Transactions on Power Electronics, 1994, 9(1): 127-131.

DOI: 10.1109/63.285503

[11] V. Gourishankar, D. H. Kelly. Electromechanical Energy Conversion (Second Edition) [M]. Index Educational Publishers, 1973.

[12] D. C. Jiles. Modelling the Effects of Eddy Current Losses on Frequency Dependent Hysteresis in Electrically Conducting Media [J]. IEEE Transactions on Magnetics, 1994, 30(6): 4326-4328.

DOI: 10.1109/20.334076
