Pistol Ring Gap Inspection under Free State Based on Machine Vision

Abstract:

The traditional way is to put the ring into the standard ring gauge to inspect, but the process of this kind of method is complex, high cost and slow. The study has put forward a detection method based on machine vision technology for pistol ring under free state as the existing defects in inspecting ring gap. Pistol ring is imaged under free conditions. Edge detection technologies, sub-pixel and Gaussian filter, have been effectively adopted to extract the contour of pistol ring. Then perform curve fitting in section to work out the gap length of each segment when pistol is circle. From the experiment, methods in this study are pertinent to the number of the segments. Proper segments can ensure gap length can be rightly calculated out when meeting the required accuracy. Sub-pixel edge detection is proposed in the application of piston ring detection in this study, and it improved the previous algorithm toimprove the efficiency ,reduced the process complexity, saved the cost.

You might also be interested in these eBooks

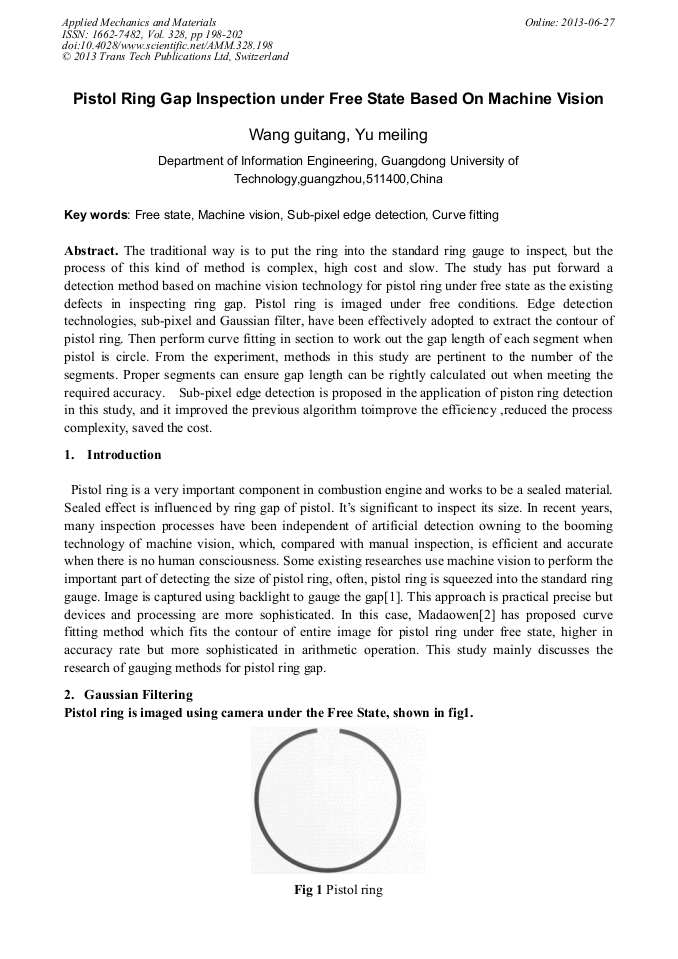

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 328)

Pages:

198-202

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.328.198

Citation:

Cite this paper

Online since:

June 2013

Authors:

Gui Tang Wang, Mei Ling Yu

Keywords:

Curve Fitting, Free State, Machine Vision, Sub-Pixel Edge Detection

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Wangguitang,Zhumiaoxian, etc. Automatic inspection for pistol ring gap based on machine vision , Modern manufacturing engineering,2005（11）：80-82

Google Scholar

[2] Madaowen,Research on gauging system of pistol ring gap based on machine vision ,(2003)

Google Scholar

[3] Carsten Steger, Markus Ulrich,Christian Wiedemann,Machine Vision Algorithms and Applications, BeiJing:Publishing House of Tsinghua University,(2008)

Google Scholar

[4] Chenjing,Shangyaceng, etc. Fast edge detection algorithm based on polynomial fitting for sub-pixel, Applied optics, 2011,32（1）：91-95

Google Scholar

[5] Rafael C.Gonzalez,Richard E.Woods,Steven L.Eddins, Digital Image Processing Using MATLAB, BeiJing: Publishing House of Electronics Industry, (2007)

Google Scholar

[6] Luojun, Houyan, Fuli, An improved gray moments sub-pixel edge deection algorithm [J],Journal in Chongqing University, 2008.31（5）：549-551

Google Scholar

[7] Shangyaceng, Chenjing,Tianjunwei,Gaussian fitting sub-pixel edge detection algorithm [J], Applied computer, 2011,31（1）：179-181

Google Scholar
