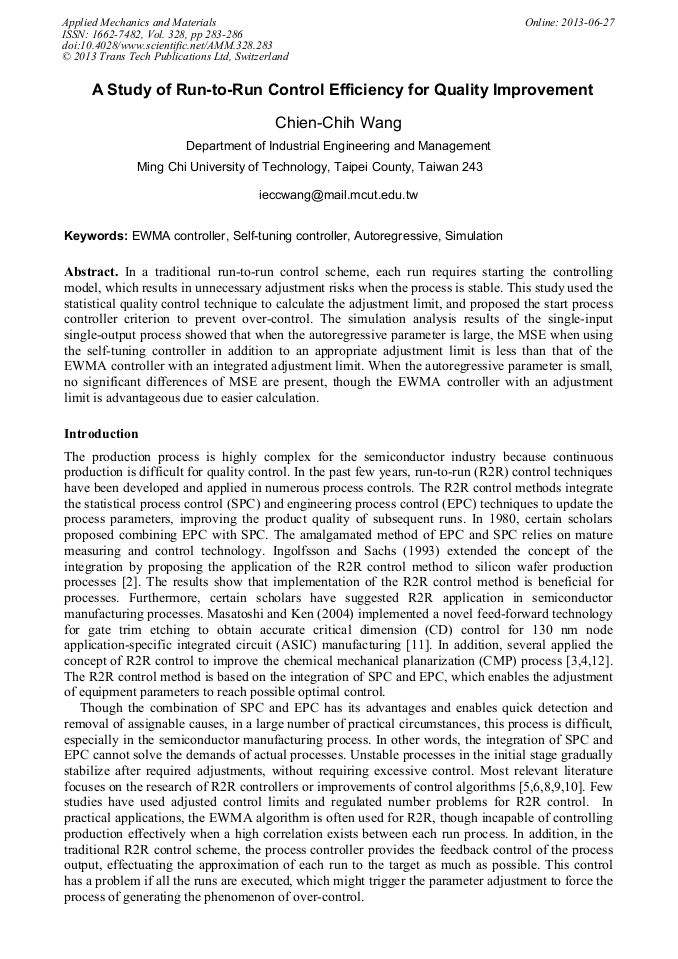

A Study of Run-to-Run Control Efficiency for Quality Improvement

Abstract:

In a traditional run-to-run control scheme, each run requires starting the controlling model, which results in unnecessary adjustment risks when the process is stable. This study used the statistical quality control technique to calculate the adjustment limit, and proposed the start process controller criterion to prevent over-control. The simulation analysis results of the single-input single-output process showed that when the autoregressive parameter is large, the MSE when using the self-tuning controller in addition to an appropriate adjustment limit is less than that of the EWMA controller with an integrated adjustment limit. When the autoregressive parameter is small, no significant differences of MSE are present, though the EWMA controller with an adjustment limit is advantageous due to easier calculation.

• Periodical: Applied Mechanics and Materials (Volume 328)
• Pages: 283-286
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.328.283
• Online since: June 2013
• Authors: Chien Chih Wang
• Keywords: Autoregressive, EWMA Controller, Self-Tuning Controller, Simulation

References

[1] Del Castillo, A multivariate self-tuning controller for run-to run process control under shift and trend disturbances, IIE Transactions, Vol. 28 (1996), pp.1011-1021.

DOI: 10.1080/15458830.1996.11770756

[2] Ingolfsson, A. and Sacha, E., Stability and Sensitivity of an EWMA Controller, Journal of Quality Technology, Vol. 25, No.4, (1993), pp.271-287.

DOI: 10.1080/00224065.1993.11979473

[3] Guo, R. S., Chen, A. and Chen, J. J., Run-to-run control schemes for CMP process subject to deterministic drifts, Semiconductor Manufacturing Technology Workshop, (2000) pp.251-258.

DOI: 10.1109/smtw.2000.883103

[4] Jen, C. H., Jiang, B. C. and Fan, S. K. S., General run-to-run (R2R) control framework using self-tuning control for multiple-input multiple-output (MIMO) processes, International Journal of Production Research, Vol. 42, No. 20, (2004), pp.4249-4270.

DOI: 10.1080/00207540410001708498

[5] Jiang, B. C., Wang, C. C., Lu, John., Jen, C. H., and Fan, S. K., Using Simulation Techniques to Determine Optimal Operational Region for Multi-Responses Problems, International Journal of Production Research, Vol. 47, No. 12(2009), pp.3219-3230.

DOI: 10.1080/00207540701823227

[6] Jiang, B. C., Wang, C. C, Jen, C. H and Wu, M. Y., A Run-to-Run Controller Using Fuzzy Neural Network Techniques for SISO Process, Expert System with Application, Vol. 36, (2009), pp.12044-12048.

DOI: 10.1016/j.eswa.2009.03.011

[7] Jiang, B. C., Wang, C. C., Jen, C. H and Luo, L.C., Combining EWMA Control Chart to Reduce Process Control Frequency for Run-to-Run (R2R), Journal of Quality, Vol. 16, No.4, (2009), pp.233-243.

[8] Jen, C. H. and Jiang, B. C., Combining On-line Experiment and Process Control Methods for Changes in a Dynamic Model, International Journal of Production Research, Vol. 46, No. 13, 2008, pp.3665-3682.

DOI: 10.1080/00207540601120476

[9] Jen, C. H., Jiang, B. C., and Wang, C. C., Integration R2R control schemes and on-line experiment for dealing with the changes in semiconducting dynamic processes, International Journal of Production Research, Vol. 49, (2011), pp.5657-5678.

DOI: 10.1080/00207543.2010.518999

[10] Jen, C. H., Lin, K. P., Wu Wen and Chou, C. C., Using LDA with on-line experiment methods for coping with changes in MIMO Dynamic Model, Expert System with Application, Vol. 38 (2011), pp.983-989.

DOI: 10.1016/j.eswa.2010.07.101

[11] Masatoshi, N. and Ken, T., Advanced Gate Etching for Accurate CD Control for 130-nm Node ASIC Manufacturing. IEEE Transactions on Semiconductor Manufacturing, Vol. 17, (2004), pp.281-285.

DOI: 10.1109/tsm.2004.831932

[12] Patel, N. S. and Jenkins, S. T., Adaptive optimization of run-to-run controllers: the EWMA example, IEEE Transactions on Semiconductor Manufacturing, Vol. 13, No.1 (2000), pp.97-107.

DOI: 10.1109/66.827349
