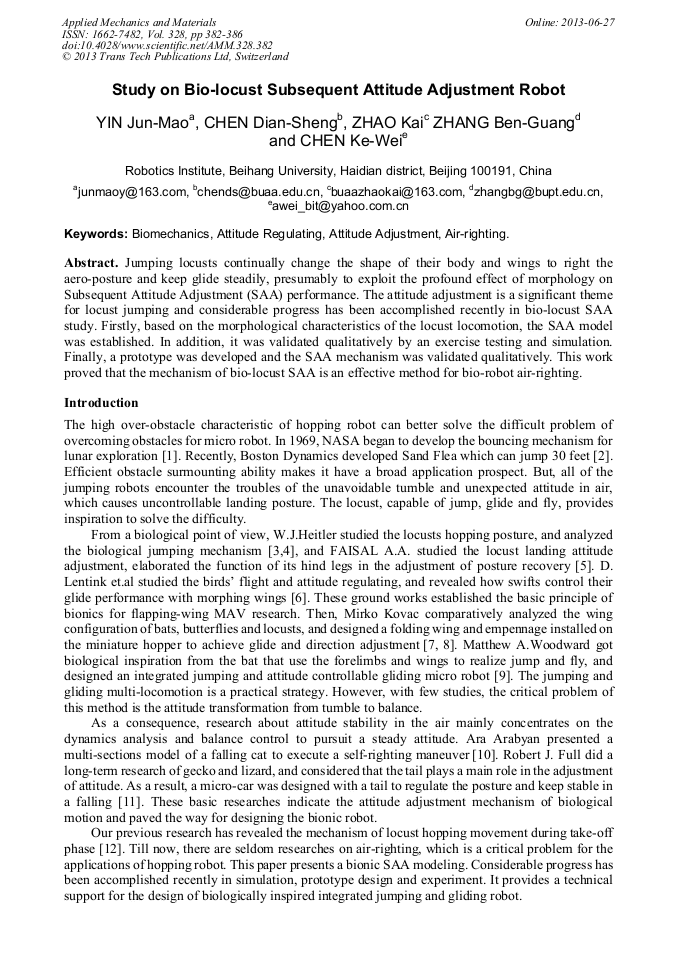

Study on Bio-Locust Subsequent Attitude Adjustment Robot

Abstract:

Jumping locusts continually change the shape of their body and wings to right the aero-posture and keep glide steadily, presumably to exploit the profound effect of morphology on Subsequent Attitude Adjustment (SAA) performance. The attitude adjustment is a significant theme for locust jumping and considerable progress has been accomplished recently in bio-locust SAA study. Firstly, based on the morphological characteristics of the locust locomotion, the SAA model was established. In addition, it was validated qualitatively by an exercise testing and simulation. Finally, a prototype was developed and the SAA mechanism was validated qualitatively. This work proved that the mechanism of bio-locust SAA is an effective method for bio-robot air-righting.

• Periodical: Applied Mechanics and Materials (Volume 328)
• Pages: 382-386
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.328.382
• Online since: June 2013
• Authors: Jun Mao Yin, Dian Sheng Chen, Kai Zhao, Ben Guang Zhang, Ke Wei Chen
• Keywords: Air-Righting, Attitude Adjustment, Attitude Regulating, Biomechanics

References

[1] Kaplan M H, Seifert H. Hopping transporters for lunar exploration. Journal of Spacecraft and Rockets, Vol.6, No.3 (1969), pp.917-922.

DOI: 10.2514/3.29727

[2] Information on http://www.bostondynamics.com/robot_sandflea.html [2012-07]

[3] D. Cofer, G. Cymbalyuk, W. J. Heitler, et.al. Control of tumbling during the locust jump. The Journal of Experimental Biology, Vol.213 (2010), pp.3378-3387.

DOI: 10.1242/jeb.046367

[4] W. J. Heitler. The locust jump. III. Structural specializations of the metathoracic tibiae. J. Exp. Biol., Vol.67 (1977), pp.29-36.

[5] Faisal A.A., Matheson T.. Coordinated righting behaviour in locusts. Journal of Experimental Biology, Vol.204 (2001), pp.637-648.

DOI: 10.1242/jeb.204.4.637

[6] D. Lentink, U.K. Muller, E. J. Stamhuis, et.al. How swifts control their glide performance with morphing wings. Nature, Vol.446 (2007), pp.1082-1085.

DOI: 10.1038/nature05733

[7] M.Kovac, Bioinspired jumping locomotion for miniature robotics. Ph.D.dissertation, Ecole Polytechnique Federale de Lausanne (EPFL), 2010.

DOI: 10.3940/rina.innovsail.2010.14

[8] Mirko Kovac, Wassim-Hraiz, Oriol Fauria, et.al. The EPFL jumpglider: A hybrid jumping and gliding robot with rigid or folding wings. IEEE Robotics and Biomimetics conference 2011.

DOI: 10.1109/robio.2011.6181502

[9] Matthew A. Woodward and Metin Sitti. Design of a Miniature Integrated Multi-Modal Jumping and Gliding Robot. International Conference on Intelligent Robots and Systems, 2011, pp.556-561.

[10] Ara Arabyan, Derliang Tsai. A distributed control model for the air-righting reflex of a cat. Biol. Cybern. Vol.79(1998), P393-401.

DOI: 10.1007/s004220050488

[11] Thomas Libby, Talia Y. Moore, Evan Chang-Siu, et.al. Tail-assisted pitch control in lizards, robots and dinosaurs. Nature, Vol.481 (2012), pp.181-184.

DOI: 10.1038/nature10710

[12] Diansheng Chen, Junmao Yin, Kai Zhao, et.al. Bionic Mechanism and Kinematics Analysis of Hopping Robot Inspired by Locust Jumping.Journal of Bionics Engineering, Vol.8(4) (2011), P429-439.

DOI: 10.1016/s1672-6529(11)60048-6
