Study of Cd_xZn_1-xTe Thin Films with Cu Layers

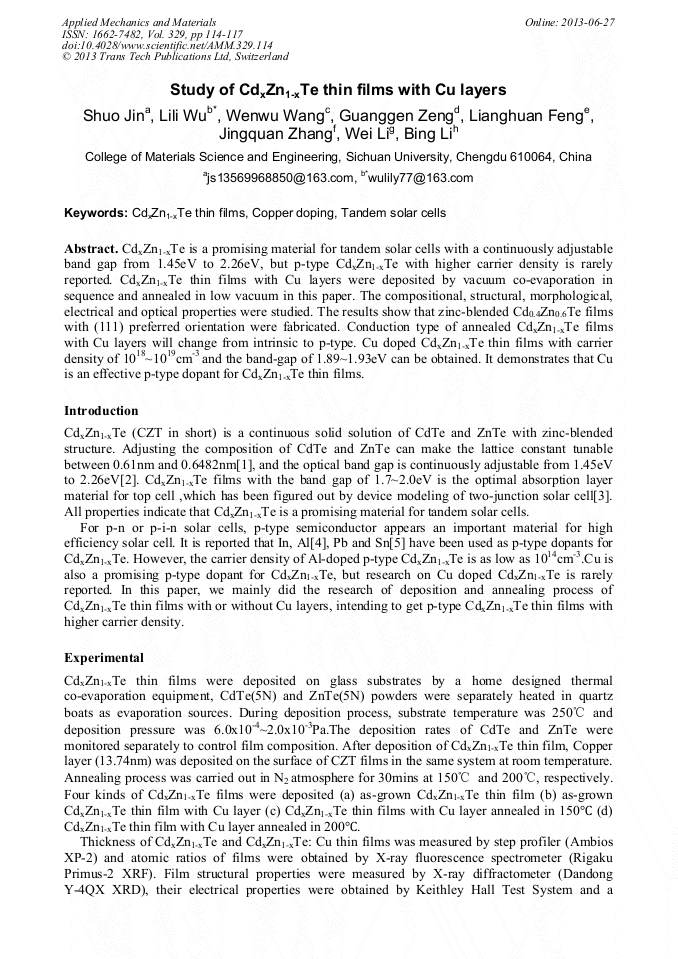

Abstract:

Cd_xZn_1-xTe is a promising material for tandem solar cells with a continuously adjustable band gap from 1.45eV to 2.26eV, but p-type Cd_xZn_1-xTe with higher carrier density is rarely reported. Cd_xZn_1-xTe thin films with Cu layers were deposited by vacuum co-evaporation in sequence and annealed in low vacuum in this paper. The compositional, structural, morphological, electrical and optical properties were studied. The results show that zinc-blended Cd_0.4Zn_0.6Te films with (111) preferred orientation were fabricated. Conduction type of annealed Cd_xZn_1-xTe films with Cu layers will change from intrinsic to p-type. Cu doped Cd_xZn_1-xTe thin films with carrier density of 10¹⁸~10¹⁹cm^-3and the band-gap of 1.89~1.93eV can be obtained. It demonstrates that Cu is an effective p-type dopant for Cd_xZn_1-xTe thin films.

You might also be interested in these eBooks

Advanced Technologies on Measure and Diagnosis, Manufacturing Systems and Environment Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 329)

Pages:

114-117

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.329.114

Citation:

Cite this paper

Online since:

June 2013

Authors:

Shuo Jin, Li Li Wu, Wen Wu Wang, Guang Gen Zeng, Liang Huan Feng, Jing Quan Zhang, Wei Li, Bing Li

Keywords:

Cd_xZn_1-xTe Thin Films, Copper Doping, Tandem Solar Cells

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] K.Y. Liu and J.Y. Wang: The Growth Research of CdZnTe Crystal for the Epitaxy Substrate of HgCdTe, Laser & Infrared, Vol. 27 (1997), p.215 (In Chinese).

Google Scholar

[2] G.G. Rusu, M. Rusu and M. Girtan: Optical characterization of vacuum evaporated CdZnTe thin films deposited by a multilayer method, Vacuum, Vol. 81 (2007), p.1476.

DOI: 10.1016/j.vacuum.2007.04.003

Google Scholar

[3] T.J. Coutts, J.S. Ward and D.L. Young: Critical Issues in the Design of Polycrystalline Thin-film Tandem Solar Cells, Res.Appl, Vol. 11 (2003), p.359.

DOI: 10.1002/pip.491

Google Scholar

[4] X.Q . Wang, W.Q. Jie and H.Y. Li: Effects of low-temperature annealing on Ohmic contact of Au/p-CdZnTe, Nuclear Instruments and Methods in Physics Research A, Vol. 560 (2006), p.409.

DOI: 10.1016/j.nima.2005.12.251

Google Scholar

[5] Q. Li, W.Q. Jie and F. Li: Metal–CdZnTe contact and its annealing behaviors, Applied Surface Science, Vol. 253 (2006), p.1190.

DOI: 10.1016/j.apsusc.2006.01.058

Google Scholar
