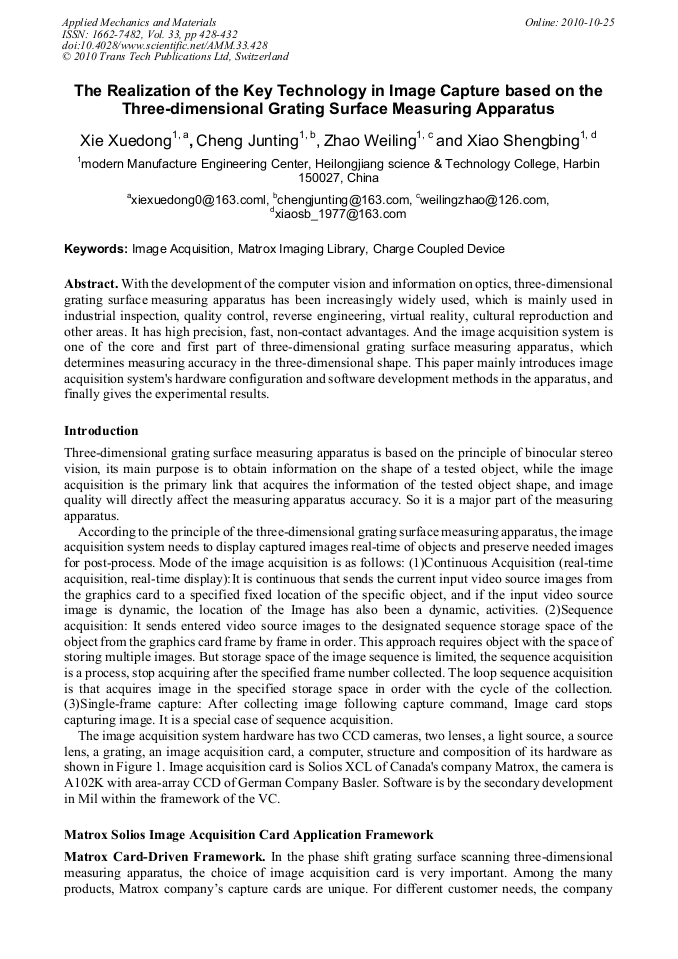

The Realization of the Key Technology in Image Capture Based on the Three-Dimensional Grating Surface Measuring Apparatus

Abstract:

With the development of the computer vision and information on optics, three-dimensional grating surface measuring apparatus has been increasingly widely used, which is mainly used in industrial inspection, quality control, reverse engineering, virtual reality, cultural reproduction and other areas. It has high precision, fast, non-contact advantages. And the image acquisition system is one of the core and first part of three-dimensional grating surface measuring apparatus, which determines measuring accuracy in the three-dimensional shape. This paper mainly introduces image acquisition system's hardware configuration and software development methods in the apparatus, and finally gives the experimental results.
