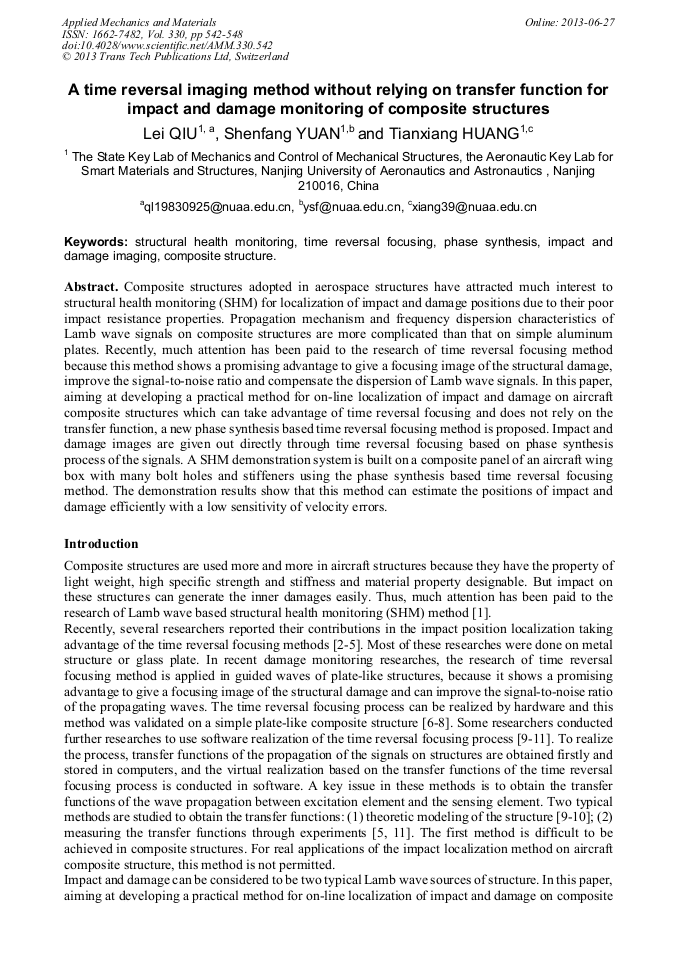

A Time Reversal Imaging Method without Relying on Transfer Function for Impact and Damage Monitoring of Composite Structures

Abstract:

Composite structures adopted in aerospace structures have attracted much interest to structural health monitoring (SHM) for localization of impact and damage positions due to their poor impact resistance properties. Propagation mechanism and frequency dispersion characteristics of Lamb wave signals on composite structures are more complicated than that on simple aluminum plates. Recently, much attention has been paid to the research of time reversal focusing method because this method shows a promising advantage to give a focusing image of the structural damage, improve the signal-to-noise ratio and compensate the dispersion of Lamb wave signals. In this paper, aiming at developing a practical method for on-line localization of impact and damage on aircraft composite structures which can take advantage of time reversal focusing and does not rely on the transfer function, a new phase synthesis based time reversal focusing method is proposed. Impact and damage images are given out directly through time reversal focusing based on phase synthesis process of the signals. A SHM demonstration system is built on a composite panel of an aircraft wing box with many bolt holes and stiffeners using the phase synthesis based time reversal focusing method. The demonstration results show that this method can estimate the positions of impact and damage efficiently with a low sensitivity of velocity errors.

• Periodical: Applied Mechanics and Materials (Volume 330)
• Pages: 542-548
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.330.542
• Online since: June 2013
• Authors: Lei Qiu, Shen Fang Yuan, Tian Xiang Huang
• Keywords: Composite Structure, Damage Imaging, Impact, Phase Synthesis, Structural Health Monitoring (SHM), Time Reversal Focusing

References

[1] Staszewski W, Boller C, Tomlinson Geof. Health Monitoring of Aerospace Structure. Wiley Inter science, Join-Wiley & Sons, Inc. (2004).

[2] Ing, R. K., Quieffin, N., Cathelinea, S. and Fink, M. In Solid Localization of Finger Impacts Using Acoustic Time-Reversal Process. Applied Physics Letters, 87(20):204104.1-204104.3 (2005).

DOI: 10.1063/1.2130720

[3] Ribay, G., Catheline, S., Clorennec, D., Ing, R.K., Quieffin,N. and Fink, M. Acoustic Impact Localization in Plates: Properties and Stability to Temperature Variation. IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control, 54(2):378-385 (2007).

DOI: 10.1109/tuffc.2007.251

[4] Chen, C. and Yuan, F.G. Impact Source Identification in Finite Isotropic Plates Using a Time-Reversal Method: Theoretical Study. Smart Materials and Structures, 19(10):105028.1-105028.11 (2010).

DOI: 10.1088/0964-1726/19/10/105028

[5] Meo, M. and Ciampa, F. Impact Detection in Anisotropic Materials Using a Time Reversal Approach. Structural Health Monitoring, 11(1):43-49 (2011).

DOI: 10.1177/1475921710395815

[6] Wang, C., Rose, J. T. and Chang, F. K. A Synthetic Time-Reversal Imaging Method for Structural Health Monitoring. Smart Materials and Structures, 13(2):415-423 (2004).

DOI: 10.1088/0964-1726/13/2/020

[7] Wang, Q. and Yuan, S. F. Baseline-Free Imaging Method Based on New PZT Sensor Arrangements. Journal of intelligent Material Systems and Structures, 20(14):1663-1673 (2009).

DOI: 10.1177/1045389x09105232

[8] Park, H.W., Kim, S.B. and Sohn, H. Understanding a Time Reversal Process in Lamb Wave Propagation. Wave Motion, 46(7):451-467 (2009).

DOI: 10.1016/j.wavemoti.2009.04.004

[9] Wang, L. and Yuan, F.K. Damage Identification in a Composite Plate Using Pre-Stack Reverse-Time Migration Technique. Structural Health Monitoring, 4(3):195-211 (2005).

DOI: 10.1177/1475921705055233

[10] Derveauxa, G., Papanicolaou, G. and Tsogka, C. Time Reversal Imaging for Sensor Networks with Optimal Compensation in Time. Journal of Acoustical Society of America, 121(4):2071-2085 (2007).

DOI: 10.1121/1.2536888

[11] Cai, J., Shi, L.H., Yuan, S.F. and Shao, Z.X. High Spatial Resolution Imaging for Structural Health Monitoring Based on Virtual Time Reversal. Smart Materials and Structures, 20(5):055018.1-055018.11 (2011).

DOI: 10.1088/0964-1726/20/5/055018

[12] Fink, M. Time-Reversed Acoustics. Scientific American, 281 (5): 91-97 (1999).

[13] Núñez, I. and Negreira, C. Efficiency Parameters in Time Reversal Acoustics: Applications to Dispersive Media and Multimode Wave Propagation. Journal of Acoustical Society of America, 117(3):1202-1209 (2005).

DOI: 10.1121/1.1856272

[14] Qiu, L. and Yuan S.F. On development of a Multi-Channel PZT Array Scanning System and Its Evaluating Application on UAV Wing Box. Sensors and Actuators A: Physical, 151(2): 220-230 (2009).

DOI: 10.1016/j.sna.2009.02.032

[15] Qiu, L., Yuan S.F, Shi, X.L. and Huang, T.X. Design of Piezoelectric Transducer Layer with Electromagnetic Shielding and High Connection Reliability. Smart Materials and Structures, 21(7):075032.1-075032.14 (2012).

DOI: 10.1088/0964-1726/21/7/075032
