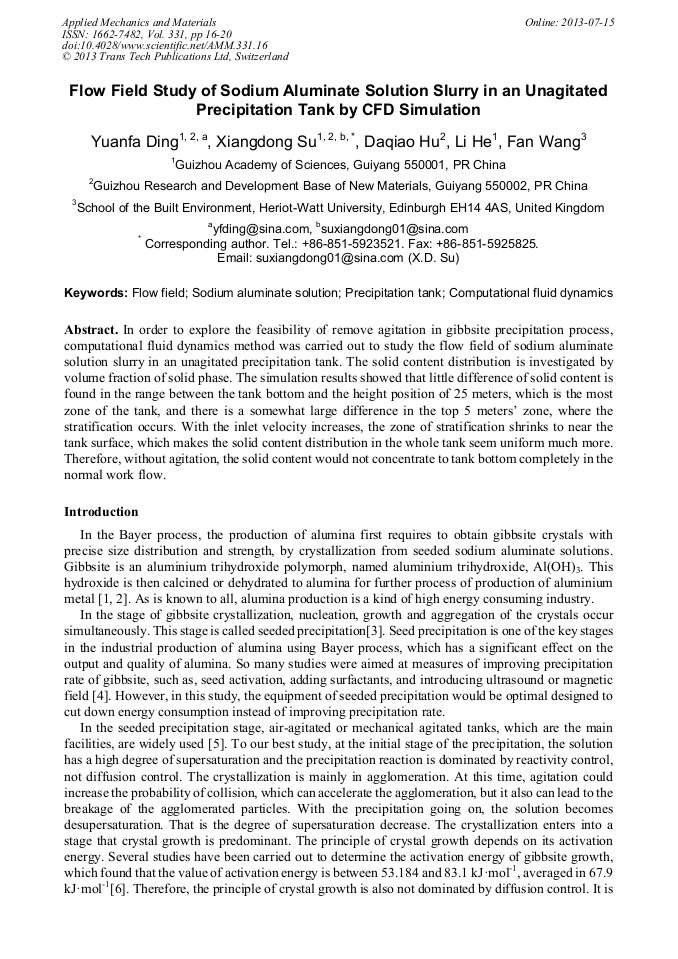

Flow Field Study of Sodium Aluminate Solution Slurry in an Unagitated Precipitation Tank by CFD Simulation

Abstract:

In order to explore the feasibility of remove agitation in gibbsite precipitation process, computational fluid dynamics method was carried out to study the flow field of sodium aluminate solution slurry in an unagitated precipitation tank. The solid content distribution is investigated by volume fraction of solid phase. The simulation results showed that little difference of solid content is found in the range between the tank bottom and the height position of 25 meters, which is the most zone of the tank, and there is a somewhat large difference in the top 5 meters zone, where the stratification occurs. With the inlet velocity increases, the zone of stratification shrinks to near the tank surface, which makes the solid content distribution in the whole tank seem uniform much more. Therefore, without agitation, the solid content would not concentrate to tank bottom completely in the normal work flow.

• Periodical: Applied Mechanics and Materials (Volume 331)
• Pages: 16-20
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.331.16
• Online since: July 2013
• Authors: Yuan Fa Ding, Xiang Dong Su, Da Qiao Hu, Li He, Fan Wang
• Keywords: Computational Fluid Dynamics (CFD), Flow Field, Precipitation Tank, Sodium Aluminate Solution

References

[1] I. Seyssiecq, S. Veesler, R. Boistelle, J.M. Lamérantt, Agglomeration of gibbsite Al(OH)3 crystals in Bayer liquors. Influence of the process parameters, Chemical Engineering Science 53 (1998) 2177-2185.

DOI: 10.1016/s0009-2509(98)00032-3

[2] B. Dash, B.C. Tripathy, I.N. Bhattacharya, S.C. Das, C.R. Mishra, B.K. Mishra, Precipitation of boehmite in sodium aluminate liquor, Hydrometallurgy 95 (2009) 297-301.

DOI: 10.1016/j.hydromet.2008.07.002

[3] B. Dash, B.C. Tripathy, I.N. Bhattacharya, S.C. Das, C.R. Mishra, B.K. Mishra, Effect of temperature and alumina/caustic ratio on precipitation of boehmite in synthetic sodium aluminate liquor, Hydrometallurgy 88 (2007) 121-126.

DOI: 10.1016/j.hydromet.2007.02.011

[4] Y. Zhang, S.L. Zheng, H. Du, H.B. Xu, S.N. Wang, Y. Zhang, Improved precipitation of gibbsite from sodium aluminate solution by adding methanol, Hydrometallurgy 98 (2009) 38-44.

DOI: 10.1016/j.hydromet.2009.03.014

[5] Q.P. Chen, H.J. Yan, S.H. Ge, J.M. Zhou, Experimental verification of mathematical model for multiphase flow in air-agitated seed precipitation tank, Trans. Nonferrous Met. Soc. China 21 (2011) 1680-1684.

DOI: 10.1016/s1003-6326(11)60914-x

[6] J.Q. Chen, P.M. Zhang, G.Y. Gan, Z.L. Yin, Q.Y. Chen, Kinetics of crystal growth on seeded precipitation of sodium aluminate solutions with new device, Trans. Nonferrous Met. Soc. China 14 (2004) 824-828.

[7] T.S. Li, I. Livk, D. Ilievski, Supersaturation and temperature dependency of gibbsite growth in laminar and turbulent flows, Journal of Crystal Growth 258 (2003) 409-419.

DOI: 10.1016/s0022-0248(03)01557-4

[8] E.S. Szalai, P. Arratia, K. Johnson, F.J. Muzzio, Mixing analysis in a tank stirred with Ekato Intermig® impellers, Chemical Engineering Science 59 (2004) 3793-3805.

DOI: 10.1016/j.ces.2003.12.033

[9] M. Schäfer, B. Karasözen, Y. Uludağ, K. Yapıcı, Ö. Uğur, Numerical method for optimizing stirrer configurations, Computers and Chemical Engineering 30 (2005) 183-190.

DOI: 10.1016/j.compchemeng.2005.08.016

[10] L.C. Wang, Y.F. Zhang, X.G. Li, Y. Zhang, Experimental investigation and CFD simulation of liquid–solid–solid dispersion in a stirred reactor, Chemical Engineering Science (2010) 5559-5572.

DOI: 10.1016/j.ces.2010.08.002

[11] O.P. Klenov, A.S. Noskov, Solid dispersion in the slurry reactor with multiple impellers, Chemical Engineering Journal 176– 177 (2011) 75-82.

DOI: 10.1016/j.cej.2011.07.056

[12] B.N. Murthy, R.S. Ghadge, J.B. Joshi, CFD simulations of gas–liquid–solid stirred reactor: Prediction of critical impeller speed for solid suspension, Chemical Engineering Science 62 ( 2007) 7184-7195.

DOI: 10.1016/j.ces.2007.07.005

[13] V.V. Ranade, Numerical simulation of dispersed gas–liquid flows, Sādhanā 17 (1992) 237-273.

DOI: 10.1007/bf02812053

[14] M. Ljungqvist, A. Rasmuson, Numerical simulation of the two-phase flow in an axially stirred vessel, Chemical Engineering Research and Design 79 (2001) 533–546.

DOI: 10.1205/02638760152424307

[15] D.J. Vojir, E.E. Michaelides, Effect of the history term on the motion of rigid spheres in a viscous fluid, Journal of Multiphase Flow 20 (1994) 547-556.

DOI: 10.1016/0301-9322(94)90028-0
