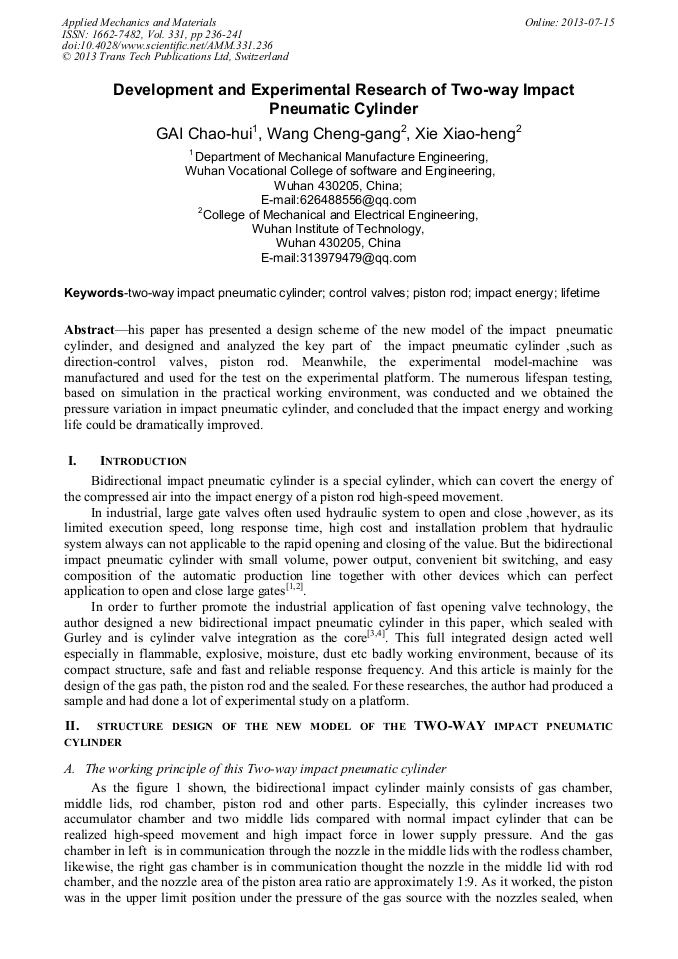

Development and Experimental Research of Two-Way Impact Pneumatic Cylinder

Abstract:

Abstract—his paper has presented a design scheme of the new model of the impact pneumatic cylinder, and designed and analyzed the key part of the impact pneumatic cylinder ,such as direction-control valves, piston rod. Meanwhile, the experimental model-machine was manufactured and used for the test on the experimental platform. The numerous lifespan testing, based on simulation in the practical working environment, was conducted and we obtained the pressure variation in impact pneumatic cylinder, and concluded that the impact energy and working life could be dramatically improved.

• Periodical: Applied Mechanics and Materials (Volume 331)
• Pages: 236-241
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.331.236
• Online since: July 2013
• Authors: Chao Hui Gai, Cheng Gang Wang, Xiao Heng Xie
• Keywords: Control Valves, Impact Energy, Lifetime, Piston Rod, Two-Way Impact Pneumatic Cylinder

References

[1] Xu WC. The impact pneumatic of the cylinder design and application [J].Chinese Hydraulics & Pneumatics, 1984, 2:8-12.

[2] Li XM, Zhen DH, Ding F, The design and application of impact pneumatic cylinder [J]. Chinese Hydraulics & Pneumatics, 2005, 3: 65-66.

[3] KANG Lei, XIE yingiun . Simulation of the Inject Molding Machine Hydraulic System Based on High-speed on/off Valva Pilot Control [J]. Machine tool &hydraulics. 2011, 39(15): 99-101.

[4] Yukio Kawakmi, Yoshihiko Masuda, Sunao Kawai. Some considerations on the position control of pneumatic cylinder [J]. Fluid Power, ISBN 041919003, 1993.

[5] Wang H. A Thesis Submitted in Partial of Fulfillment of the Requir- ements for the Degree of Master of Engineering [M]. Huazhong University of Science &Technology, 2005.

[6] Paolillo R, Clouds D, de Jong F, et al. Advanced seal rig experiments and analysis. AIAA-2005-4150, 2005.

[7] Yu Jiuyang, Gao Jiuyang, Wang Cheng,gang, Yang Xia, Zheng Xianzhong, Xu Jianmin, Chang Yue. Analysis of Sealing Performance of O-ring with Different Structure for Piston Rod of Rapping Device [J]. LUBRICATION ENGINEERING, 2010, 35(3):65-68.

[8] Cynthia L Lach. Effect of temperature and gap opening mte on the resiliency of candidate Solid rocket booster o-ring materials [J]. NASATeehniealPaPer3226, 1996.1-1.

[9] Yang Gaopin, Luo Yongbiao, Xie Pengcheng, Li Fangjun, Ding Yumei, Yang Weimin. Optimization Analysis for Y-type Seal-ring of Hydraulic Prop with Water Medium with CAE [J]. LUBRICATION ENGINEERING, 2006, 12:139-142.

[10] Chen Yi-wen, YU Jiu-yang, XIE Hong-bo, ZHENG Xiao-tao, NIE Si-hao. Comparative analysis and selection for sealing structure between piston and rod of rapping device [J]. J. Wuhan Inst. Tech.2011, 33(10):81-85.

[11] Sun W, Ye Q, Xie WH, Song HZ. Experimental Study on Properties of High-speed Impact Pneumatic Cylinder [J]. Chinese Hydraulics & Pneumatics.2009.12:59-61.

[12] Escobar, L.A, & Meeker, W.Q. "Planning Accelerated Life Tests with Two or More Experimental Factors". Techno metrics. 1995.

[13] Chen Juan, Wang Zhanlin, Wang Shaoping. Constant stress accelerates life test method for pneumatic cylinders [J].Chinese Journal of Scientific Instrument.2006, 27(6):91-92.

[14] Du Xiaojun, Li Suyou, Zhang Wei. Research of control and DAQ in experiment of impact vibration [J]. Research and Development. 2007,26(2):31-34.
