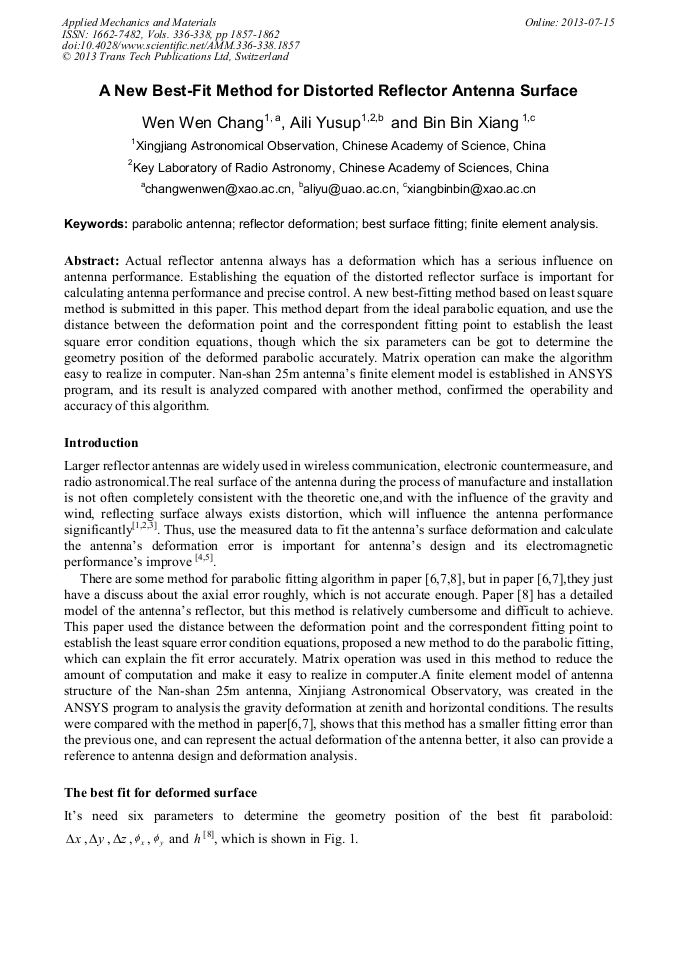

A New Best-Fit Method for Distorted Reflector Antenna Surface

Abstract:

Actual reflector antenna always has a deformation which has a serious influence on antenna performance. Establishing the equation of the distorted reflector surface is important for calculating antenna performance and precise control. A new best-fitting method based on least square method is submitted in this paper. This method depart from the ideal parabolic equation, and use the distance between the deformation point and the correspondent fitting point to establish the least square error condition equations, though which the six parameters can be got to determine the geometry position of the deformed parabolic accurately. Matrix operation can make the algorithm easy to realize in computer. Nan-shan 25m antennas finite element model is established in ANSYS program, and its result is analyzed compared with another method, confirmed the operability and accuracy of this algorithm.

• Periodical: Applied Mechanics and Materials (Volumes 336-338)
• Pages: 1857-1862
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.336-338.1857
• Online since: July 2013
• Authors: Wen Wen Chang, Ai Li Yusup, Bin Bin Xiang
• Keywords: Best Surface Fitting, Finite Element Analysis (FEA), Parabolic Antenna, Reflector Deformation

References

[1] Otto Hachenberg, Bernd H. Grahl and Richard Wielebinski: Proceedings of the IEEE, 1973, 61(9): 1288-1295.

[2] MichaelBrenner, MichaelJ. Britcliffe and William A. lmbriale: submitted to Journal of Antenna's and Propagation Magazine. 2002, 44(6): 187-192.

[3] S. von Hoerner: submitted to Journal of Structural Division Proc. ASCE , 93: 461-486, (1967).

[4] S. von Hoerner, Woon-Ying Wong: submitted to Journal of IEEE Transactions on Antenna and Propagation, vol. 23, no. 5, pp.689-695, (1975).

[5] David Woody, Eugene Serabyn, and Anthony Schinckel: submitted to Journal of Advanced Technology MMW, Radio, and Terahertaz Telescope, 1998-7-13(474).

[6] Hua Mulin: submitted to Journal of Modern Rader, 1994, 1(16): 75-82, (In Chinese).

[7] Wang Congsi, DUAN Baoyan and QIN yuanying: submitted to Journal of Modern Rader, 2004, 26(10): 52-55, (In Chinese).

[8] Ye Shanghui, Li Zaigui, in: Antenna Structure Design. (Xidian University press, Xian, 1986, pp.62-66), (In Chinese).

[9] WANG Wei, DUAN Baoyan: International Conference on Mechatronics and Automation, 2007-7-8, 1-4244-0828.

[10] Cheng Baolin, in: Optimization theory and algorithms. (Tsinghua University press, Beijing, 2005, pp.26-35) , (In Chinese).
