Sensitivity and Response of a Triple-Axis Thermal MEMS-Based Acceleration Sensor

Abstract:

This paper investigates numerically the sensitivity and response of a novel tripleaxis thermal MEMSbased acceleration sensor. In this novel sensor, the heater forms an open ring on the top of a cavity, which improves the variation of temperature in the region just above the cavity center with vertical acceleration. By placing a temperature detector in this region, the sensitivity of vertical measurement is significantly improved and comparable with that of horizontal measurement whose detectors are outside the heater loop. Furthermore, the mutual effect is dramatically reduced. For instance, at the supplied power of 15mW to the heater, the sensitivity for the vertical measurement attains 0.062°C/g (g is gravity) while those for the horizontal measurements are 0.29°C/g, and cross sensitivities are less than 5%, for acceleration within 10g. The numerical analysis of response of the sensor shows that the sensor frequency bandwidth at 3 dB is about 70 Hz.

You might also be interested in these eBooks

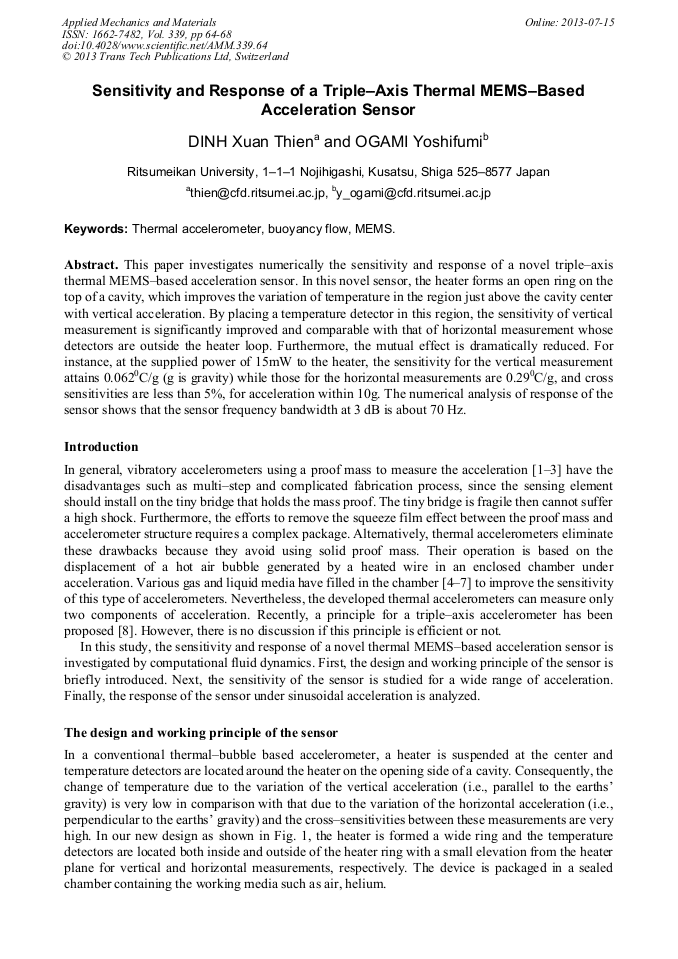

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 339)

Pages:

64-68

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.339.64

Citation:

Cite this paper

Online since:

July 2013

Authors:

Xuan Thien Dinh, Yoshifumi Ogami

Keywords:

Buoyancy Flow, MEMS, Thermal Accelerometer

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] U.A. Dauderstadt, P.M. Sarro and P.J. French: Sens. Actuators A Vol. 66 (1998), p.244.

Google Scholar

[2] A. Partridge, J. K. Reynolds, B.W. Chui, E.M. Chow, A.M. Fitzgerald, L. Zhang, N.I. Maluf and T.W. Kenny: Microelectromech. Syst. Vol. 9 (2000), p.58

DOI: 10.1109/84.825778

Google Scholar

[3] E. Belloy, A. Sayah and M.A.M. Gijs: Microelectromech. Syst. Vol. 11 (2002), p.85

Google Scholar

[4] X.B. Luo, Z.X. Li, Z.Y. Guo and Y.J. Yang: Heat Mass Transfer Vol. 38 (2002), p.705

Google Scholar

[5] S. Billat, H. Glosch, M. Kunze, F. Hedrich, J. Frech, J. Auber, H. Sandmaier, W. Wimmer and W Lang: Sens. Actuators A Vol. 97–98 (2002), p.125

DOI: 10.1016/s0924-4247(01)00824-x

Google Scholar

[6] K.M. Liao, R. Chen and B.C.S Chou: Sensor Actuator A Vol. 130–131 (2006), p.282

Google Scholar

[7] F. Mailly, A. Giani, A. Martinez, R. Bonnot, P. Temple–Boyer and A. Boyer: Sensor Actuator A Vol. 103 (2003), p.359

DOI: 10.1016/s0924-4247(02)00428-4

Google Scholar

[8] Y. Hua, L. Jiang, Y. Cai, A. Leung and Y. Zhao: US Patent 0101813 A1 (2007)

Google Scholar

[9] T.X. Dinh and Y. Ogami: IMECE2011 63420 (2011)

Google Scholar
