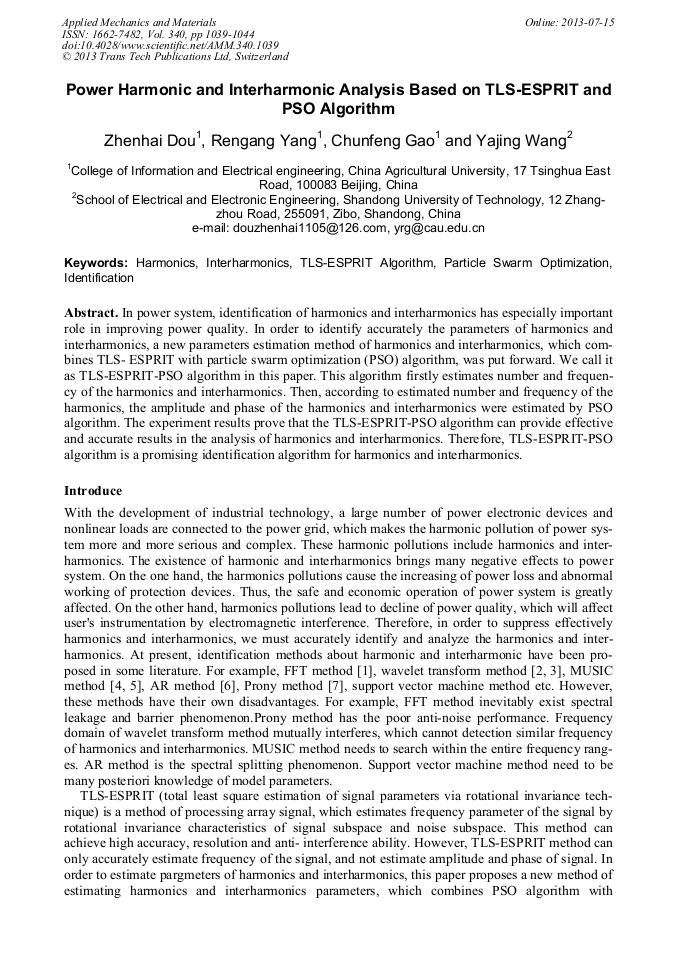

Power Harmonic and Interharmonic Analysis Based on TLS-ESPRIT and PSO Algorithm

Abstract:

In power system, identification of harmonics and interharmonics has especially important role in improving power quality. In order to identify accurately the parameters of harmonics and interharmonics, a new parameters estimation method of harmonics and interharmonics, which combines TLS-ESPRIT with particle swarm optimization (PSO) algorithm, was put forward. We call it as TLS-ESPRIT-PSO algorithm in this paper. This algorithm firstly estimates number and frequency of the harmonics and interharmonics. Then, according to estimated number and frequency of the harmonics, the amplitude and phase of the harmonics and interharmonics were estimated by PSO algorithm. The experiment results prove that the TLS-ESPRIT-PSO algorithm can provide effective and accurate results in the analysis of harmonics and interharmonics. Therefore, TLS-ESPRIT-PSO algorithm is a promising identification algorithm for harmonics and interharmonics.

• Periodical: Applied Mechanics and Materials (Volume 340)
• Pages: 1039-1044
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.340.1039
• Online since: July 2013
• Authors: Zhen Hai Dou, Ren Gang Yang, Chun Feng Gao, Ya Jing Wang
• Keywords: Harmonics, Identification, Interharmonics, Particle Swarm Optimization (PSO), TLS-ESPRIT Algorithm

References

[1] Zhao W. C, Ma W. M, Hu A: FFT algorithm with high accuracy for harmonic analysis in the electric machine (in Chinese) Proceedings of the CSEE. 21(12), 83-87 (2001).

[2] Xue H, Yang R. G: Morlet wavelet based detection of noninteger harmonics (in Chinese). Power System Technology. 26, (12): 41-44 (2002).

[3] Hong F, Shan R. Z, Wang H. Z, et al: a novel dual buck full bridge three- level inverter (in Chinese). Proceeding of the CSEE. 28(12), 55-59 (2008).

[4] Shi M, Wu Z. G, Yin W. M: Inter-harmonic parameter estimation based on multi-signal classification and prony method (in Chinese). Power System Technology. 29(15), 81-84 (2005).

[5] Gao P. S, Gu X. W, Wu W: LHarmonic and interharmonic spectrum estimation based on root MUSIC and GA (in Chinese). Transactions of China Electrotechnical Society. 23(6), 109-113 (2008).

[6] Ma B. W, Zhou L, Diao J. W: Interharmonics measurement using modern spectral estimation method (in Chinese) Relay. 33(3), 25-27 (2005).

[7] Ding Y. F, Cheng H. Z: Spectrum estimation of harmonics and interharmonics based on prony algorithm (in Chinese) Transactions of China Electrotechnical Society. 20(10), 94-97 (2005).
