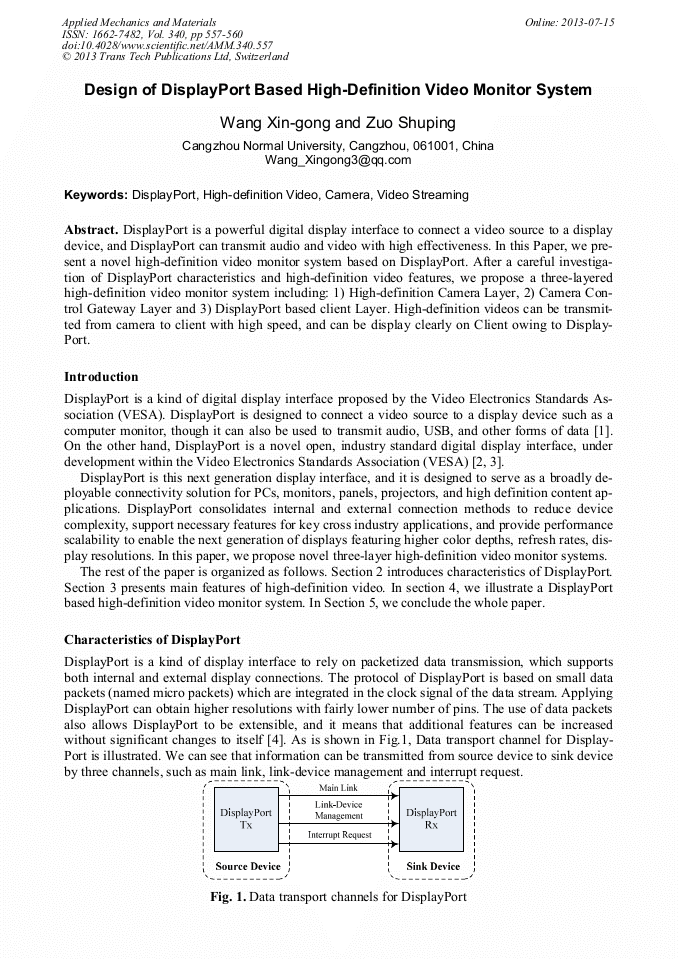

Design of DisplayPort Based High-Definition Video Monitor System

Abstract:

DisplayPort is a powerful digital display interface to connect a video source to a display device, and DisplayPort can transmit audio and video with high effectiveness. In this Paper, we present a novel high-definition video monitor system based on DisplayPort. After a careful investigation of DisplayPort characteristics and high-definition video features, we propose a three-layered high-definition video monitor system including: 1) High-definition Camera Layer, 2) Camera Control Gateway Layer and 3) DisplayPort based client Layer. High-definition videos can be transmitted from camera to client with high speed, and can be display clearly on Client owing to DisplayPort.

• Periodical: Applied Mechanics and Materials (Volume 340)
• Pages: 557-560
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.340.557
• Online since: July 2013
• Authors: Xin Gong Wang, Shu Ping Zuo
• Keywords: Camera, DisplayPort, High-Definition Video, Video Streaming

References

[1] Kyungyoul Min, and Changsik Yoo (2010) A 1. 62/2. 7Gbps Clock and Data Recovery with Pattern Based Frequency Detector for DisplayPort. IEEE Transactions on Consumer Electronics 56(4): 2032-(2036).

DOI: 10.1109/tce.2010.5681067

[2] VESA (2008) VESA DisplayPort Standard, Version 1(11): 46-58.

[3] VESA (2007) DisplayPort Link Layer Compliance Test Standard, 10(14): 56-62.

[4] Chien, C.D. and Lin, C.C., et al (2007) A 252kgate/71mW Multi-Standard Multi-Channel Video Decoder for High Definition Video Applications. IEEE ISSCC 7(5): 282-303.

DOI: 10.1109/isscc.2007.373404

[5] Zhang Chengbin (2007) The Design of a Digital Video Surveillance System, Nanjing University of Science and Technology 12(4): 57-62.

[6] Xu Dan (2008) Design of Video Acquisition Card Based on DSP and PCI. Xidian University 16(7): 88-94.

[7] Lv Xing (2007) The Research of Intelligent Video Monitor System Based On DirectShow, Northwestern Polytechnical University 13(5): 57-62.

[8] Yang Liang (2010) A Research and Implementation of Campus Monitoring System Based on DS4004HC and Wireless Sensor Technology, Shandong University of Technology 52(7): 46-55.

[9] Phillippe F, Meney M, Larrazet F, et al (2006) Effects of video information in patients undergoing coronary angiography. Arch Mal Coeur Vaiss 99(7): 95-100.

[10] Cowan EA, Calderon Y, Gennis P, et al (2007) Spanish and English videoassisted informed consent for intravenous contrast administration in the emergency department: A randomized controlled trial. Ann Emerg Med 49(5): 231-233.

DOI: 10.1016/j.annemergmed.2006.07.934

[11] Agre P, Kurtz RC, Krauss BJ (1994) A randomized trial using videotape to present consent information for colonoscopy. Gastrointest Endosc 40(5): 271-276.

DOI: 10.1016/s0016-5107(94)70054-0

[12] Rossi M, McClellan R, Chou L, et al (2004) Informed consent for ankle fracture surgery: Patient comprehension of verbal and videotaped information. Foot Ankle Int 25(3): 756-762.

DOI: 10.1177/107110070402501011
