Numerical Simulation of the Three-Dimensional Turbulent Flow in Roto-Jet Pump

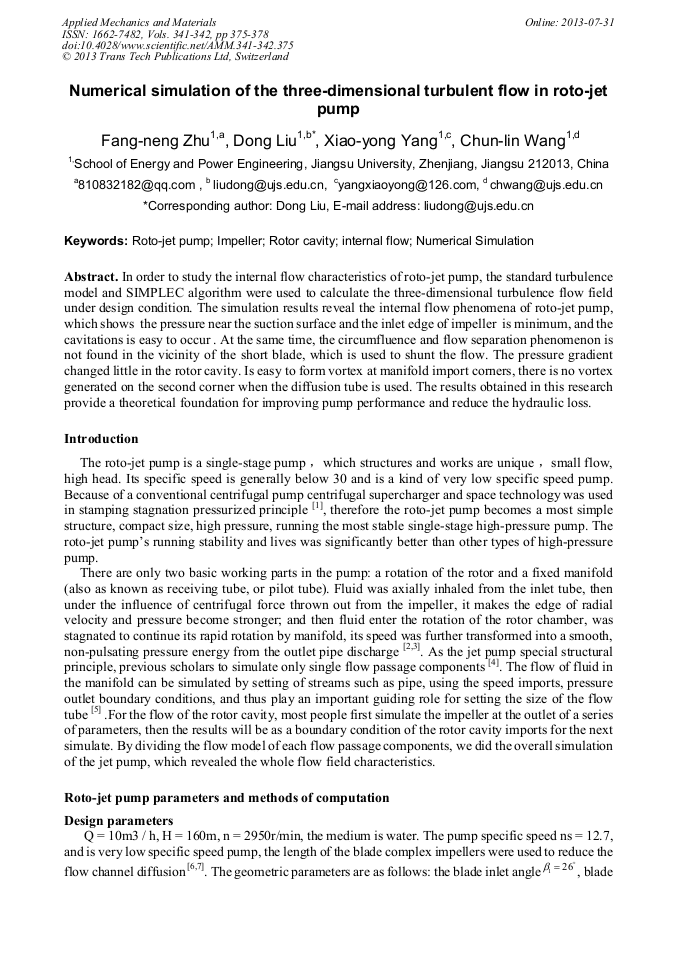

Article Preview

Abstract:

In order to study the internal flow characteristics of roto-jet pump, the standard turbulence model and SIMPLEC algorithm were used to calculate the three-dimensional turbulence flow field under design condition. The simulation results reveal the internal flow phenomena of roto-jet pump, which shows the pressure near the suction surface and the inlet edge of impeller is minimum, and the cavitations is easy to occur . At the same time, the circumfluence and flow separation phenomenon is not found in the vicinity of the short blade, which is used to shunt the flow. The pressure gradient changed little in the rotor cavity. Is easy to form vortex at manifold import corners, there is no vortex generated on the second corner when the diffusion tube is used. The results obtained in this research provide a theoretical foundation for improving pump performance and reduce the hydraulic loss.
