HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 344Number Modeling of Forming Behavior for Al-Based...

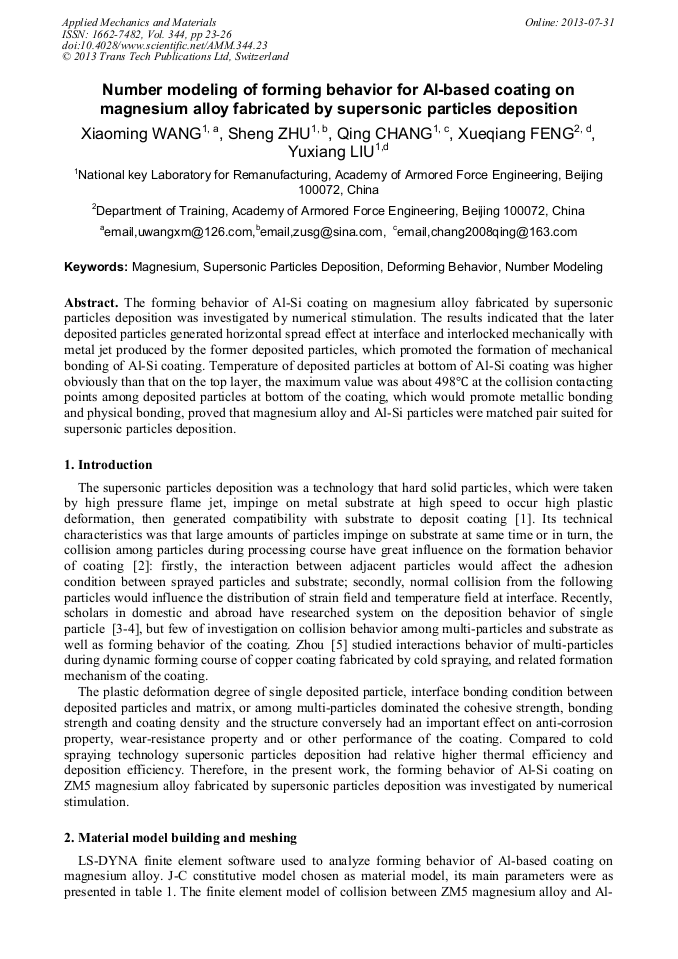

Number Modeling of Forming Behavior for Al-Based Coating on Magnesium Alloy Fabricated by Supersonic Particles Deposition

Abstract:

The forming behavior of Al-Si coating on magnesium alloy fabricated by supersonic particles deposition was investigated by numerical stimulation. The results indicated that the later deposited particles generated horizontal spread effect at interface and interlocked mechanically with metal jet produced by the former deposited particles, which promoted the formation of mechanical bonding of Al-Si coating. Temperature of deposited particles at bottom of Al-Si coating was higher obviously than that on the top layer, the maximum value was about 498°C at the collision contacting points among deposited particles at bottom of the coating, which would promote metallic bonding and physical bonding, proved that magnesium alloy and Al-Si particles were matched pair suited for supersonic particles deposition.

You might also be interested in these eBooks

Advanced Research on Applied Mechanics, Mechatronics and Intelligent System

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 344)

Pages:

23-26

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.344.23

Citation:

Cite this paper

Online since:

July 2013

Authors:

Xiao Ming Wang, Sheng Zhu, Qing Chang, Xue Qiang Feng, Yu Xiang Liu

Keywords:

Deforming Behavior, Magnesium, Number Modeling, Supersonic Particles Deposition

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Li Tiefan, Wang Kai and Wu Jie, Research Progress on Cold Spraying Device, Thermal Spraying Technology, vol. 3, pp.16-31, February (2011).

Google Scholar

[2] Zhou Xianglin, Zhang Jishan, Wu Xiangkun, Advanced Cold Spraying Technology and Application, Beijing: Mechanical Industrial Press, (2011).

Google Scholar

[3] Guo Huihua, Zhou Xianglin and Wu Xiangkun, Preparation andSimulation of Cold Sprayed Copper Coatings on Metal Substrate, Transactions of Materials and Heat Treatment, vol. 30, pp.158-159, June (2009).

Google Scholar

[4] Zhang Huabing, Zhang Junbao and Shan Aiding, Effects of Gas Temperature on Bonding and Deformation Behavior of Cold-sprayed Ni Particles, Acta Metallurgica Sinica, vol. 43, pp.823-828, August (2007).

Google Scholar

[5] Zhou X, Wu X and Wang J, Investigation on Multi-particle Deposition Behavior during Cold Spraying, International Journal of Minerals, Metallurgical and Materials, vol. 17, pp.635-640, May (2010).

Google Scholar
