Study on Virtual Material Method for Dynamic Features Analysis of Crank Connecting Rod Mechanism

Abstract:

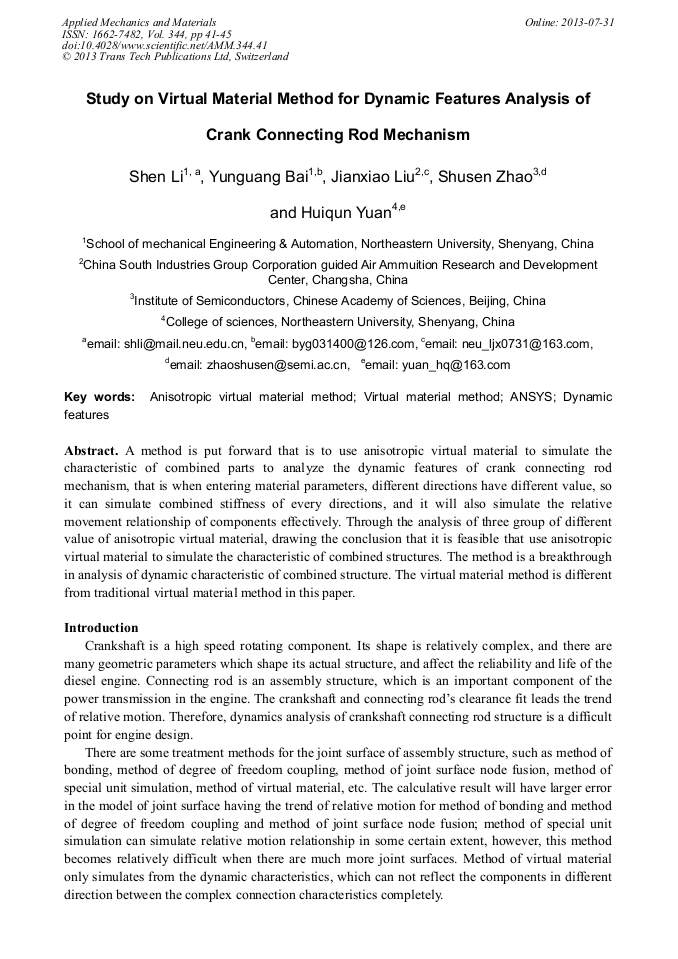

A method is put forward that is to use anisotropic virtual material to simulate the characteristic of combined parts to analyze the dynamic features of crank connecting rod mechanism, that is when entering material parameters, different directions have different value, so it can simulate combined stiffness of every directions, and it will also simulate the relative movement relationship of components effectively. Through the analysis of three group of different value of anisotropic virtual material, drawing the conclusion that it is feasible that use anisotropic virtual material to simulate the characteristic of combined structures. The method is a breakthrough in analysis of dynamic characteristic of combined structure. The virtual material method is different from traditional virtual material method in this paper.
