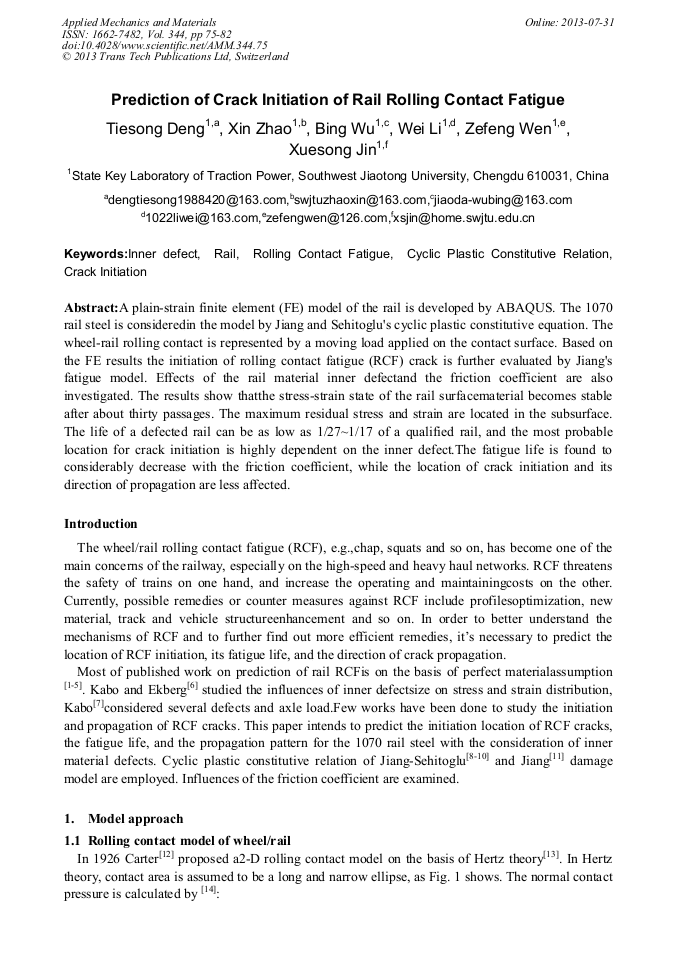

Prediction of Crack Initiation of Rail Rolling Contact Fatigue

Abstract:

A plain-strain finite element (FE) model of the rail is developed by ABAQUS. The 1070 rail steel is considered in the model by Jiang and Sehitoglu's cyclic plastic constitutive equation. The wheel-rail rolling contact is represented by a moving load applied on the contact surface. Based on the FE results the initiation of rolling contact fatigue (RCF) crack is further evaluated by Jiang's fatigue model. Effects of the rail material inner defect and the friction coefficient are also investigated. The results show that the stress-strain state of the rail surface material becomes stable after about thirty passages. The maximum residual stress and strain are located in the subsurface. The life of a defected rail can be as low as 1/27~1/17 of a qualified rail, and the most probable location for crack initiation is highly dependent on the inner defect. The fatigue life is found to considerably decrease with the friction coefficient, while the location of crack initiation and its direction of propagation are less affected.

• Periodical: Applied Mechanics and Materials (Volume 344)
• Pages: 75-82
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.344.75
• Online since: July 2013
• Authors: Tie Song Deng, Xin Zhao, Bing Wu, Wei Li, Ze Feng Wen, Xue Song Jin
• Keywords: Crack Initiation, Cyclic Plastic Constitutive Relation, Inner Defect, Rail, Rolling Contact Fatigue (RCF)

References

[1] Tyfour WR, Beynon JH, Kapoor A. Deterioration of rolling contact fatigue life of pearlitic rail steel due to dry-wet rolling-sliding line contact[J]. Wear 1996, 197: 255~65.

DOI: 10.1016/0043-1648(96)06978-5

[2] J.W. Ringsberg, M. Loo-Morrey, B.L. Josefson. Prediction of fatigue crack initiation for rolling contact fatigue[J]. InternationalJournal of Fatigue, 2000, 22: 205~215.

DOI: 10.1016/s0142-1123(99)00125-5

[3] Liu Jiangfeng, Wei Qingchao. High railway fatigue life prediction of the rail[J]. Journal of Railway Engineering Society, 2000, 6: 66.

[4] Wang Jiangxi, XuYude, LianSongliang. Simulation of Predicting RCF Crack Initiation Life of Rails under Random Wheel rail Forces[J]. Journal of Railway Engineering Society 2010, 32(3).

[5] Jin Xuesong, Zhang Jiye, Wen Zefeng et al. Overview of Phenomena of Rolling Contact Fatigue of Wheel/Rail[J]. Journal of Mechanical Strength, 2002, 24(2): 250~257.

[6] ElennaKabo, Anders Ekberg. Material Defects In Rolling Contact Fatigue of Railway Wheels-The Influence of Defect Size[J]. Science Direct, 2005: 1194~1200.

DOI: 10.1016/j.wear.2004.03.070

[7] Elena Kabo. Material Defects In Rolling Contact Fatigue of Railway Wheels- The Influence of Overloads and Defect Clusters[J]. Journal of Mechanical Strength, 2002, 24: 887~894.

DOI: 10.1016/s0142-1123(01)00193-1

[8] Jiang Y, Sehitoglu H. Rolling contact stress analysis with the application of a new plasticity model[J]. Wear, 1996, 191: 35~44.

DOI: 10.1016/0043-1648(95)06663-2

[9] Jiang Y, Sehitoglu H. Modeling of cyclic ratchetting plasticity, part I: development of constitutive relations[J]. Trans ASME, J ApplMech, 1996, 63: 720~5.

DOI: 10.1115/1.2823355

[10] Jiang Y, Sehitoglu H. Modeling of cyclic ratchetting plasticity, part II: comparison of model simulations with experiments[J]. Trans ASME, J ApplMech, 1996, 63: 726~33.

DOI: 10.1115/1.2823356

[11] Jiang Y. A fatigue criterion for general multiaxialloading[J]. Fat FractEngng Mater Struct, 2000, 23: 19~32.

[12] CarterFW. On the action of a Loeomotive driving wheel[J]. Proeeedings of the Royal Soeiety of London, 1926, 112: 151~157.

[13] Hertz, H. Uber die Beruhrung fester elastieherKurper[J]. Journal fur reine and angewandte Mathematik, 1882, 92: 156~173.

DOI: 10.1515/9783112342404-004

[14] K. L. Johnson. Contact Mechanics[M]. Cambridge: Cambridge University Press, (1985).

[15] Bower AF. Some AsPect of Plastic flow, Residual Stress and Fatigue due to Rolling and Sliding Coniact[D]. Emmanuel College, DePartment of Engineering University of Cambridge, (1987).

[16] Bower AF. Cyelie Hardening ProPerties of Hard Drawn CoPPer and Rail Stress[J]. J. Meeh. Phys. Solids, 1989, 37: 455~481.

[17] G. Glinka, G. Shen and A. Plumtree (1995) A multi-axial fatigue strain energy density parameter related to the critical fracture plane[J]. Fatigue Fract. Engng Mater. Struct, 18, 37~46.

DOI: 10.1111/j.1460-2695.1995.tb00140.x

[18] G. Glinka, G. Wang and A. Plumtree (1995) Mean stress effects in multi-axial fatigue[J]. Fatigue Fract. Engng Mater. Struct, 18, 755~764.

DOI: 10.1016/0142-1123(96)82754-x

[19] Jin Xuesong, Liu Qiyue. Tribology of Wheel and Rail[M]. Bei Jing: China Railway Publishing House, 2004, 3: 62~63.

[20] ZhuangLijian. Rolling Contact Fatigue Life Predictions of 1070 Steel[D]. Zhe Jiang: Zhe Jiang University of Technology, (2007).
