Algorithm of the Workpiece's Contour in Inner Spiral Curved Surface of Spiral Stator Using Circular Blade Disc Cutter

Abstract:

For the cutting process of the inner spiral curved surface on the spiral stator which has large pitch, this article puts forward a new technological process using a circular blade disc cutter mill the inner spiral curved surface. By studying the spiral feeding motion trajectory of the cutter and on the basis of the theory of planar envelope curves and the judgment rule of its existence, the transformation method of the graphics, this article deduced the mathematics model based on numerical algorithm of the calculation of the workpieces contour shape. The relationship between the workpieces contour shape and the geometric parameter of the cutter has been revealed. It provides the theoretical basis for the error analysis in the cutting process of the stators contour and the appropriative tooling layout.

You might also be interested in these eBooks

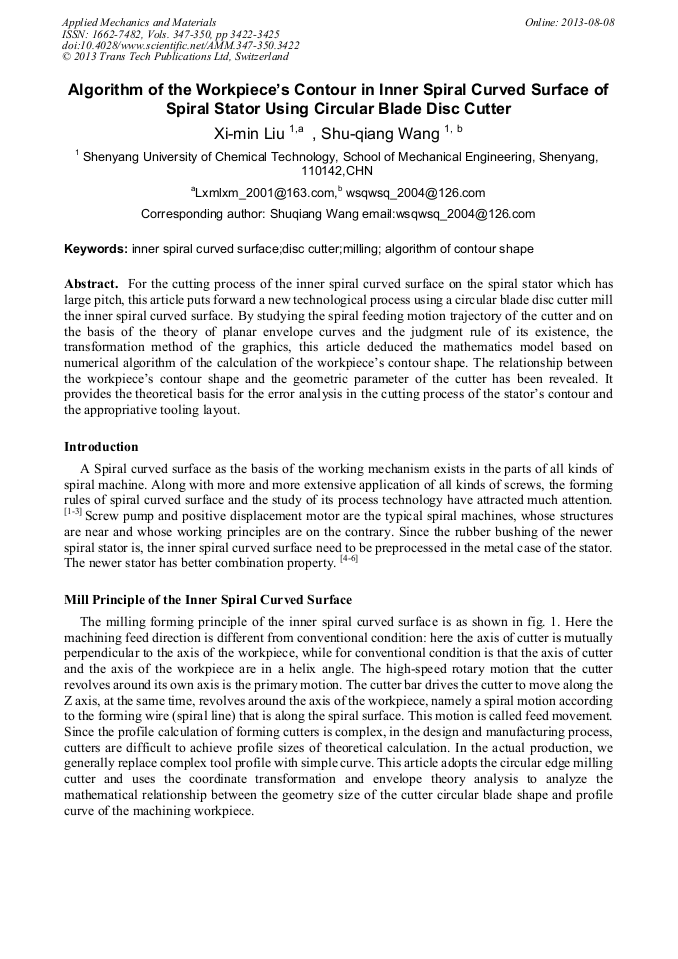

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 347-350)

Pages:

3422-3425

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.347-350.3422

Citation:

Cite this paper

Online since:

August 2013

Authors:

Xi Min Liu, Shu Qiang Wang

Keywords:

Algorithm of Contour Shape, Disc Cutter, Inner Spiral Curved Surface, Milling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] LIU Cheng-lin, WANG Shi-jie: Linear design of long single-screw. Machinery Design & Manufacture, 2010(1), pp.36-38.

Google Scholar

[2] SUN Xingwei, WANG Xu, WANG Ke: Research on Enveloping Boring Method for inner spiral surface of single screw pump stator. Manufacturing Technology & Machine Tool, 2007 (8), pp.85-87.

Google Scholar

[3] Chen Jian, Zheng Hua-lin, HE Wei, Peng Gang: Computer Aided Design of Screwdrill Stator's Cathode in Electrochemical Machining. Oil Field Equipment, 2010, 39 (7), pp.42-44.

Google Scholar

[4] QIU Ya-ling, YANG De-sheng, HAN Chuan-jun, HE Min. Designs for Broach on Spiral Groove of Stator Uniform Wall Thick PDM. Oil Field Equipment, 2008, 37(5), pp.56-58.

Google Scholar

[5] Zhang Jin, Zhang Shicheng. FEM Analysis for an Iso-wall Thickness PCP's Stator. China Mechanical Engineering, 2004, 16(8), pp.1462-1465.

Google Scholar

[6] Wu-qin, RUI Zhi-yuan, YANG Jian-jun: Design on Contour of Milling Cutter in Machining Complex Spiral Curved Surfaces, Modular Machine Tool & Automatic Manufacturing Technique, 2009(7), pp.78-81.

Google Scholar
