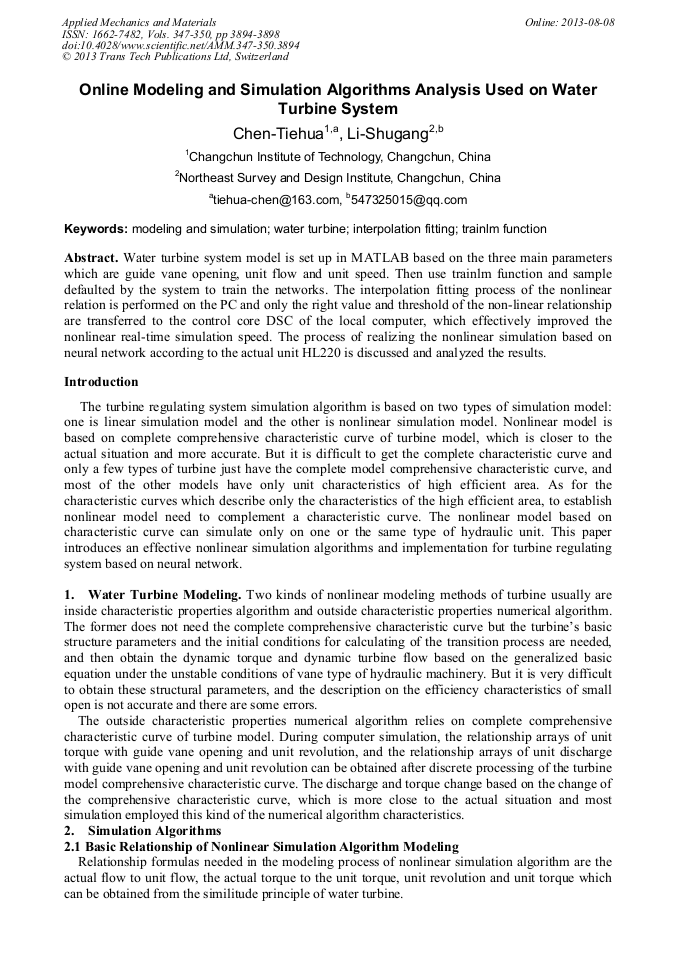

Online Modeling and Simulation Algorithms Analysis Used on Water Turbine System

Abstract:

Water turbine system model is set up in MATLAB based on the three main parameters which are guide vane opening, unit flow and unit speed. Then use trainlm function and sample defaulted by the system to train the networks. The interpolation fitting process of the nonlinear relation is performed on the PC and only the right value and threshold of the non-linear relationship are transferred to the control core DSC of the local computer, which effectively improved the nonlinear real-time simulation speed. The process of realizing the nonlinear simulation based on neural network according to the actual unit HL220 is discussed and analyzed the results.

• Periodical: Applied Mechanics and Materials (Volumes 347-350)
• Pages: 3894-3898
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.347-350.3894
• Online since: August 2013
• Authors: Tie Hua Chen, Shu Gang Li
• Keywords: Interpolation Fitting, Simulation, Trainlm Function, Water Turbine

References

[1] Shen zuyi. Water Turbine Regulation [M]. Beijing: Hydraulic and Electric Press, (1988).

[2] Xu fangtong, Li zhixi. Hydropower station unit control computer simulation [M]. Beijing: Hydraulic and Electric Press, (1994).

[3] Jiao lichen. Neural network system theory [M]. Xi'an: Xi'an university of electronic science and technology press, (1990).

[4] Zhang changqi. Turbine principle and mathematical model [M]. Wuhan: Huazhong University of Science and Technology Press, (1989).

[5] Xue dingyu. Control system computer aided design-Matlab language and application [M]. Beijing: Tsinghua University Press, (1996).

[6] Chang jiang, Chen guangda. Neural network modeling and nonlinear simulation for Kaplan Type Hydro Generating Unit [J]. China Rural Water and Hydropower, 2004, 25(7) : 82-85.
