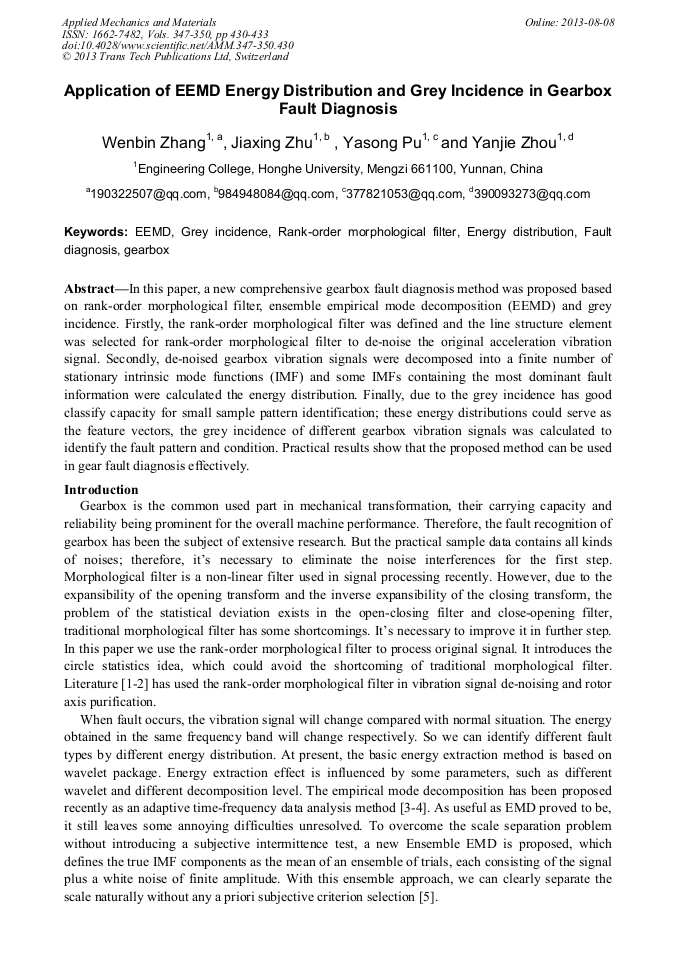

Application of EEMD Energy Distribution and Grey Incidence in Gearbox Fault Diagnosis

Abstract:

In this paper, a new comprehensive gearbox fault diagnosis method was proposed based on rank-order morphological filter, ensemble empirical mode decomposition (EEMD) and grey incidence. Firstly, the rank-order morphological filter was defined and the line structure element was selected for rank-order morphological filter to de-noise the original acceleration vibration signal. Secondly, de-noised gearbox vibration signals were decomposed into a finite number of stationary intrinsic mode functions (IMF) and some IMFs containing the most dominant fault information were calculated the energy distribution. Finally, due to the grey incidence has good classify capacity for small sample pattern identification; these energy distributions could serve as the feature vectors, the grey incidence of different gearbox vibration signals was calculated to identify the fault pattern and condition. Practical results show that the proposed method can be used in gear fault diagnosis effectively.

• Periodical: Applied Mechanics and Materials (Volumes 347-350)
• Pages: 430-433
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.347-350.430
• Online since: August 2013
• Authors: Wen Bin Zhang, Jia Xing Zhu, Ya Song Pu, Yan Jie Zhou
• Keywords: EEMD, Energy Distribution, Fault Diagnosis, Gearbox, Grey Incidence, Rank-Order Morphological Filter

References

[1] W. B. Zhang, H. J. Wang, R. J. Teng and S. K. Xu. Application of rank-order morphological filter in vibration signal de-noising[C]. Proceedings of the 2010 3rd International Congress on Image and Signal Processing, 2010. 4025-4027.

DOI: 10.1109/cisp.2010.5648096

[2] W. B. Zhang, Y. P. Su, Y. J. Zhou, R. J. Teng and S. K. Xu. Application of rank-order morphological filter in refinement of rotor center's orbit g[C]. Proceedings of the 2011 4th International Congress on Image and Signal Processing, 2011. 2250-2252.

DOI: 10.1109/cisp.2011.6100539

[3] N. E. Huang Z. Shen, S. R. Long, M. C. Wu, H. H. Shih, Q. N. Zheng, N. C. Yen, C. C. Tung and H. H. Liu. The empirical mode decomposition and the hilbert spectrum for nonlinear and non-stationary time and analysis[J]. Proc. R. Soc. Lond. A, Mar. 1998. 903-995.

DOI: 10.1098/rspa.1998.0193

[3] Z. H. Wu and N. E. Huang. A study of the characteristics of white noise using the empirical mode decomposition method[J]. Proc R Soc Lond: A, 2004(460). 1579-1611.

[4] Z. H. Wu and N. E. Huang. Ensemble empirical mode decomposition: a noise-assisted data analysis method[J]. Advances in Adaptive Data Analysis, 2009(2). 1-41.

DOI: 10.1142/s1793536909000047

[5] L. Shen, X. J. Zhou, W. B. Zhang and Z. G. Zhang. Fault diagnosis of rolling element bearing based on morphological filter and grey incidence[J]. Journal of Vibration and Shock, 2009 (28). 17-20.
