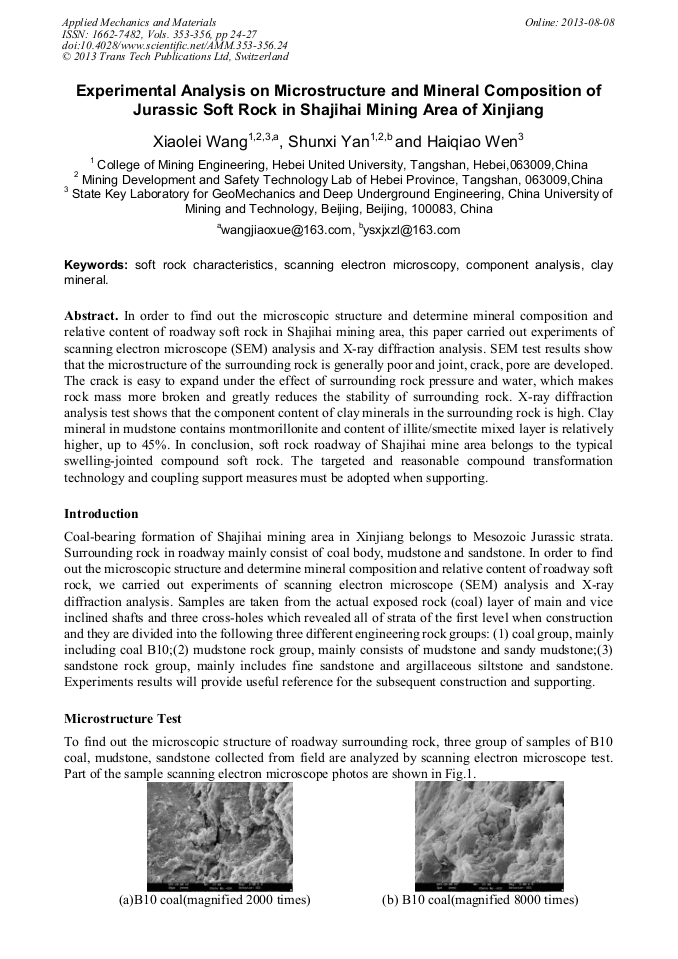

Experimental Analysis on Microstructure and Mineral Composition of Jurassic Soft Rock in Shajihai Mining Area of Xinjiang

Abstract:

In order to find out themicroscopic structure and determine mineral composition and relative content ofroadway soft rock in Shajihai mining area, this paper carried out experimentsof scanning electron microscope (SEM) analysis and X-ray diffraction analysis.SEM test results show that the microstructure of the surrounding rock isgenerally poor and joint, crack, pore are developed. The crack is easy toexpand under the effect of surrounding rock pressure and water, which makesrock mass more broken and greatly reduces the stability of surrounding rock.X-ray diffraction analysis test shows that the component content of clayminerals in the surrounding rock is high. Clay mineral in mudstone containsmontmorillonite and content of illite/smectite mixed layer is relativelyhigher, up to 45%. In conclusion, soft rock roadway of Shajihai mine areabelongs to the typical swelling-jointed compound soft rock. The targeted andreasonable compound transformation technology and coupling support measuresmust be adopted when supporting.

• Periodical: Applied Mechanics and Materials (Volumes 353-356)
• Pages: 24-27
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.353-356.24
• Online since: August 2013
• Authors: Xiao Lei Wang, Shun Xi Yan, Hai Qiao Wen
• Keywords: Clay Mineral, Component Analysis, Scanning Electron Microscope (SEM), Soft Rock Characteristics

References

[1] Junhua Li, Wei Wu. Study on Determining the Content of All Kinds of Composition in the Natural Rock by Near Infrared Reflectance Spectroscopy[J]. Spectroscopy and Spectral Analysis, 2013 (1): 85-88. (in Chinese).

[2] Jingang He, Yili Kang. Effects of Mineral Composition and Microstructure on Stress-sensitivity of Mudrocks[J]. Natural Gas Geoscience, 2012(1): 129-134. (in Chinese).

[3] Xiaohua Wang, Hongjun Liu. The research on the mineral characteristics of sediment and the responce to the hydrodynamic conditions of the tidal flat, at the northern Yellow River Delta[J]. Marine Sciences, 2008(2): 42-46. (in Chinese).

[4] Shujing Jiao, Hui Han, Qingping Weng. Scanning electron microscope analysis of porosity in shale[J]. Journal of Chinese Electron Microscopy, 2012(5): 432-436. (in Chinese).

[5] Yuanyuan Hu, Zaiyuan Hu. the Application of SEM to the Study of Clay Minerals from Clastic Rock Reservoir[J]. Acta Geologica Sichuan, 2012(1): 25-28. (in Chinese).

[6] Li Zhou, Hengda Yu, Haitao Yang. SEM-EDS analysis of deep soft rock for Xing'an mine[J]. Journal of Heilongjiang Institute of Science and Technology, 2012(2): 148-153. (in Chinese).

[7] Yuping Wang, Baolong Zhu. Research on Soft Clay by Using Scanning Electron Microscopy and X-ray Spectrometer[J]. Journal of Xihua University(Natural Science Edition), 2010(5): 63-65. (in Chinese).
