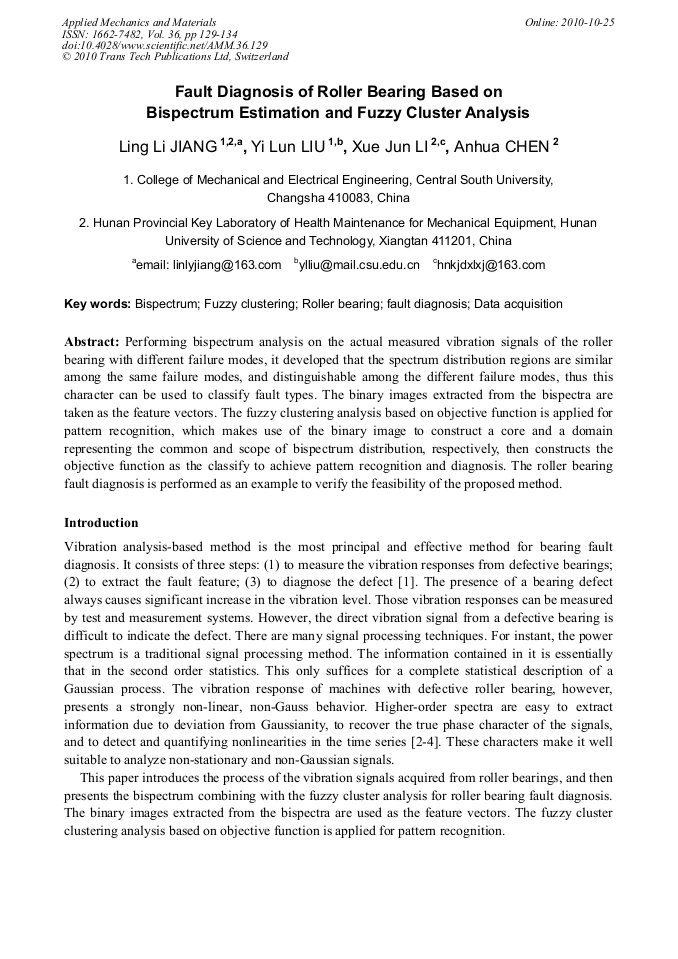

Fault Diagnosis of Roller Bearing Based on Bispectrum Estimation and Fuzzy Cluster Analysis

Abstract:

Performing bispectrum analysis on the actual measured vibration signals of the roller bearing with different failure modes, it developed that the spectrum distribution regions are similar among the same failure modes, and distinguishable among the different failure modes, thus this character can be used to classify fault types. The binary images extracted from the bispectra are taken as the feature vectors. The fuzzy clustering analysis based on objective function is applied for pattern recognition, which makes use of the binary image to construct a core and a domain representing the common and scope of bispectrum distribution, respectively, then constructs the objective function as the classify to achieve pattern recognition and diagnosis. The roller bearing fault diagnosis is performed as an example to verify the feasibility of the proposed method.

• Periodical: Applied Mechanics and Materials (Volume 36)
• Pages: 129-134
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.36.129
• Online since: October 2010
• Authors: Ling Li Jiang, Yi Lun Liu, Xue Jun Li, Anhua Chen
• Keywords: Bispectrum, Data Acquisition (DAQ), Fault Diagnosis, Fuzzy Clustering, Roller Bearing

References

[1] A. K. S. Jardine, D. Lin and D. Banjevic: Mechanical Systems and Signal Processing 20(2006), pp.1483-1450.

[2] M. A. A. S. Choudhury, S. L. Shah and N. F. Thornhill: Automatica, 40(2004), pp.1719-1728.

[3] D. M. Yang, A. F. Stronach and P. MacConnell: Mechanical Systems and Signal Processing, 16(2-3)(2002), pp.361-411.

[4] F. E. H. Montero and O. C. Medina: Mechanical Systems and Signal Processing, 22(3)(2008), pp.588-596.

[5] T. S. Qiu and X. X. Zhang: Publishing Housing of Electronics Industry, Beijing, (2004).

[6] H. Ji, J. Li snd W. Xie: Proceedings of ICSP'98, pp.419-422.

[7] X. B. Gao: Xi'an Electronic Science and Technology University Press, (2004).

[8] J. V. Oliveira and W. Pedrycz: John Wiley & Sons Inc, (2007).

[9] C. Fernando and W. Richard: Fuzzy sets and system, 150(2005), p.267~284.

[10] N. Tandon and A. Choudhury: Tribology International, 32(1999), pp.469-480.

[11] P. Stepanic, L. V. Latinovic and Z. Djurovic: Int J Adv Manuf Technol 45 (2009), pp.91-100.

[12] B. M. Sadler, G. B. Giannakis and K. S. Lii: IEEE Transactions on Signal Processing, 42(10)(1994), pp.2729-2741.

DOI: 10.1109/78.324738
