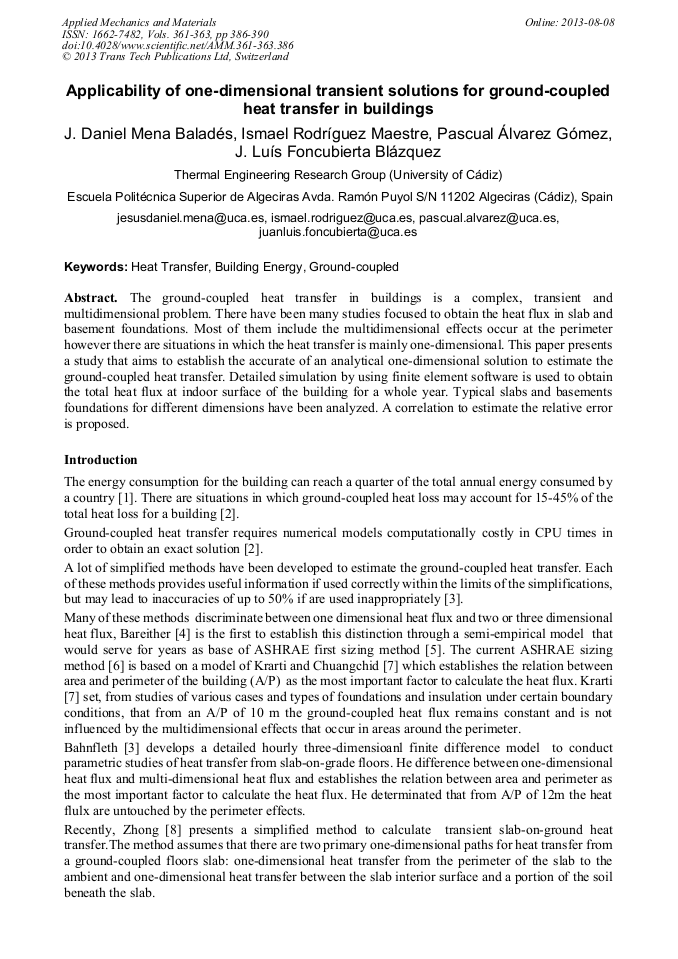

Applicability of One-Dimensional Transient Solutions for Ground-Coupled Heat Transfer in Buildings

Abstract:

The ground-coupled heat transfer in buildings is a complex, transient and multidimensional problem. There have been many studies focused to obtain the heat flux in slab and basement foundations. Most of them include the multidimensional effects occur at the perimeter however there are situations in which the heat transfer is mainly one-dimensional. This paper presents a study that aims to establish the accurate of an analytical one-dimensional solution to estimate the ground-coupled heat transfer. Detailed simulation by using finite element software is used to obtain the total heat flux at indoor surface of the building for a whole year. Typical slabs and basements foundations for different dimensions have been analyzed. A correlation to estimate the relative error is proposed.

• Periodical: Applied Mechanics and Materials (Volumes 361-363)
• Pages: 386-390
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.361-363.386
• Online since: August 2013
• Authors: J Daniel Mena Baladés, Ismael Rodríguez Maestre, Pascual Álvarez Gómez, J. Luis Foncubierta Blázquez
• Keywords: Building Energy, Ground-Coupled, Heat Transfer

References

[1] IEA, Key World Energy Statics, (2012).

[2] J. Neymark and R. Judkoff, International Energy Agency Building Energy Simulation Test and Diagnostic Method (IEA BESTEST). In-Depth Diagnostic Cases for Ground Coupled Heat Transfer Related to Slab-on-Ground Construction, (2008).

DOI: 10.2172/937333

[3] W. Bahnfleth, Three-Dimensional Modeling of Heat Transfer From Slab Floors, (1989).

[4] H. Bareither, A. Fleming and B. Alberty, Temperature and Heat Loss Characteristics of Concrete Floor Laid on the Ground, (1948).

[5] ASHRAE, ASHRAE Handbook of Fundamentals, Atlanta, GA: American Society of Heating Refrigeration and Air Conditioning Engineers, (1985).

[6] R. Henninger and M. Witte, ASHRAE Handbook-Foundamentals (SI), Atlanta: ASHRAE, 2005, p.32. 7-32. 9.

[7] M. Krarti y P. Chuangchid, «Cooler floor heat gain for refrigerated structures. ASHRAE Research Project TRP 953, » ASHRAE, (1999).

[8] Z. Zhong and J. Braun, A simple method for estimating transient heat transfer in slab-on-ground floors, Building and Environment, vol. 42, pp.1071-1080, (2007).

DOI: 10.1016/j.buildenv.2005.01.030

[9] ANSYS, Inc, ANSYS Mechanical APDL Basis Analysis Guide, Canonsburg, PA: ANSYS, Inc, (2010).

DOI: 10.1016/b978-0-12-811768-2.00022-5

[10] J. Carmody, J. Christian and K. Labs, Builder's Foundation Handbook, Tennessee: Oak Ridge National Laboratory (ORNL), (1991).

[11] EnergyPlus, «EnergyPlus, Weather Data, » U.S. Departament of Energy, 2012. Available: http: /apps1. eere. energy. gov/buildings/energyplus/cfm/weather_data2. cfm.

[12] M. S. El-Din, On the heat flow into the ground, Renewable Energy, vol. 18, pp.473-490, (1999).
