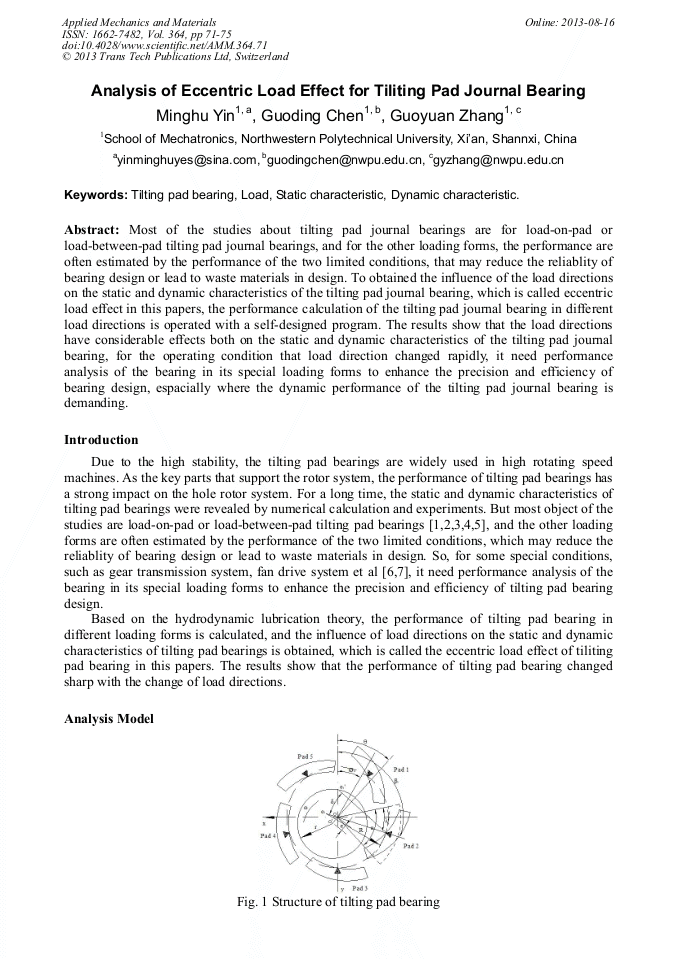

Analysis of Eccentric Load Effect for Tiliting Pad Journal Bearing

Abstract:

Most of the studies about tilting pad journal bearings are for load-on-pad or load-between-pad tilting pad journal bearings, and for the other loading forms, the performance are often estimated by the performance of the two limited conditions, that may reduce the reliablity of bearing design or lead to waste materials in design. To obtained the influence of the load directions on the static and dynamic characteristics of the tilting pad journal bearing, which is called eccentric load effect in this papers, the performance calculation of the tilting pad journal bearing in different load directions is operated with a self-designed program. The results show that the load directions have considerable effects both on the static and dynamic characteristics of the tilting pad journal bearing, for the operating condition that load direction changed rapidly, it need performance analysis of the bearing in its special loading forms to enhance the precision and efficiency of bearing design, espacially where the dynamic performance of the tilting pad journal bearing is demanding.

• Periodical: Applied Mechanics and Materials (Volume 364)
• Pages: 71-75
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.364.71
• Online since: August 2013
• Authors: Ming Hu Yin, Guo Ding Chen, Guo Yuan Zhang
• Keywords: Dynamic Characteristic, Load, Static Characteristic, Tilting Pad Bearing

References

[1] Lund J W.: Spring and Damping Coeff icients for the Tilting Pad Journal Bearing, Trans ASME, Vol. 7 (1964), pp.342-352.

[2] Ettles C M M.: The Analysis and Performance of Pivoted Pad Journal Bearings Considering Thermal and Elastic Effects, ASME J Lub Tech, Vol. 102 (1980), pp.182-192.

DOI: 10.1115/1.3251467

[3] Brockwell K, Kl einbub D, Dmochowski W.: Measurement and Calculation of the Dynamic Operating Characteristics of the Five Shoes Tilting Pad Journal Bearing, Tribo Trans, Vol. 33 (1990), pp.481-492.

DOI: 10.1080/10402009008981979

[4] Waldemar Dmochowski: Dynamic Properties of Tilting-Pad Journal Bearings: Experimental and Theoretical Investigation of Frequency Effects due to Pivot Flexibility, Journal of Engineering for Gas Turbines and Power, ASME, Vol. 129 (2007), pp.79-84.

DOI: 10.1115/1.2436574

[5] XU Hua, JIANG Ge-dong, CONG Hong etc.: Experimental Investigation on the Dynamic Properties ofTilting Pad Journal Bearing, Tribology, Vol. 21(5) (2001), pp.385-389.

[6] Hu Weilin: Performace Analysis of High Speed, Heavy Load Gear Transmission Bearing, Drive System Technique, Vol. 3 (1994), pp.24-31.

[7] ZHANG Suo-huai, GUO Jun: Research on the Model of Blade Bearing Loads of the Wind Turbine, Machine Design and Research, Vol. 25(4) (2000), pp.116-119.

[8] Yu Lie, Liu Heng: Bearing-rotor Dynamics (Xi'an Jiaotong University Press, China, 2001).
