Spraying Pattern Overlap and Movement Design of Automatic Electrostatic Top Spraying Machine

Abstract:

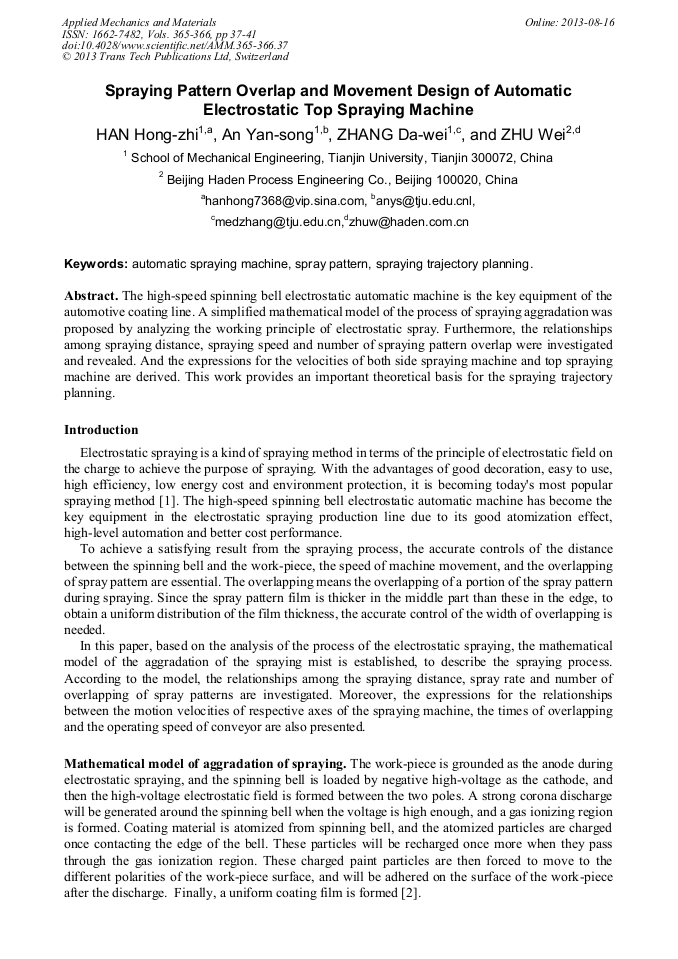

The high-speed spinning bell electrostatic automatic machine is the key equipment of the automotive coating line. A simplified mathematical model of the process of spraying aggradation was proposed by analyzing the working principle of electrostatic spray. Furthermore, the relationships among spraying distance, spraying speed and number of spraying pattern overlap were investigated and revealed. And the expressions for the velocities of both side spraying machine and top spraying machine are derived. This work provides an important theoretical basis for the spraying trajectory planning .
