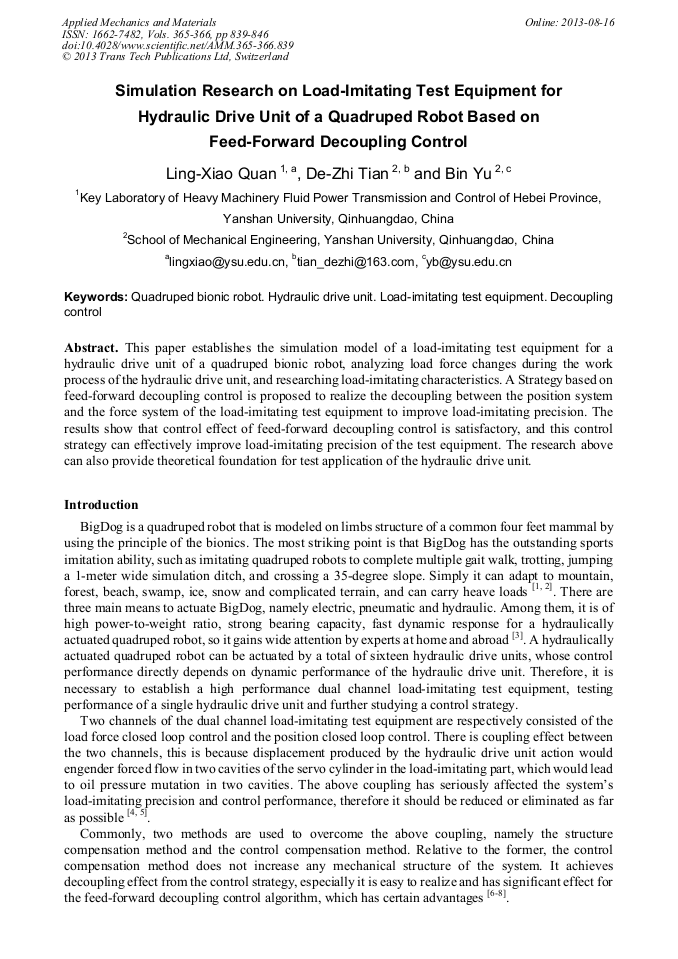

Simulation Research on Load-Imitating Test Equipment for Hydraulic Drive Unit of a Quadruped Robot Based on Feed-Forward Decoupling Control

Abstract:

This paper establishes the simulation model of a load-imitating test equipment for a hydraulic drive unit of a quadruped bionic robot, analyzing load force changes during the work process of the hydraulic drive unit, and researching load-imitating characteristics. A Strategy based on feed-forward decoupling control is proposed to realize the decoupling between the position system and the force system of the load-imitating test equipment to improve load-imitating precision. The results show that control effect of feed-forward decoupling control is satisfactory, and this control strategy can effectively improve load-imitating precision of the test equipment. The research above can also provide theoretical foundation for test application of the hydraulic drive unit.

• Periodical: Applied Mechanics and Materials (Volumes 365-366)
• Pages: 839-846
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.365-366.839
• Online since: August 2013
• Authors: Ling Xiao Quan, De Zhi Tian, Bin Yu
• Keywords: Decoupling Control, Hydraulic Drive Unit, Load-Imitating Test Equipment, Quadruped Bionic Robot

References

[1] DING Liang-hong, WANG Run-xiao, FENG Hua-shan, Li Jun, Brief Analysis of a BigDog Quadruped Robot, China Mechanical Engineering, Number 5, (2012).

[2] VO Gia Loc, Ig Mo Koo, Tran Duc Trong, etc, Sensing and Control of Quadruped Walking and Climbing Robot over Complex Environment, 2008 IEEE/RSJ International Conference on Intelligent Robots and Systems, Nice, 22-26 September 2008, pp.3884-3889.

DOI: 10.1109/iros.2008.4650786

[3] Claudio Semini, HyQ - Design and Development of a Hydraulically Actuated Quadruped Robot, Ph.D. Thesis, University of Genoa, Italy, (2010).

[4] CUI Hua-yang, Electro-Hydraulic Actuator Load Simulation Control System, M.E. Thesis, Northwestern Polytechnical University, Xi'an, (2006).

[5] WANG Shu-yuan, Research on Structure Invariance Principle in Loading Simulator of Fin Stabilizer, M.E. Thesis, Harbin Engineering University, Harbin, (2005).

[6] SHANG Yao-xing, Study on Ultimate Performance of Electro-Hydraulic Load Simulator, Eng.D. Thesis, Beijing University of Aeronautics & Astronauticsv, Beijing, (2008).

[7] LIANG Li-hua, LIU Qiang, ZHAO Lin-lin, Research on Feed-forward Compensation Decoupling Control for the Electro-hydraulic Load Simulator of Fin Stabilizer, China Mechanical Engineering, Volume 18, Number 4, (2007).

[8] Chen Xue-dong, Guo Hong-xun, Keigo Watanabe, Direct Kinematics Analysis of Crawl Gait for a Quadruped Robot, Chinese Journal of Mechanical Engineering, Volume 39, Number 2, (2003).

DOI: 10.3901/jme.2003.02.008
