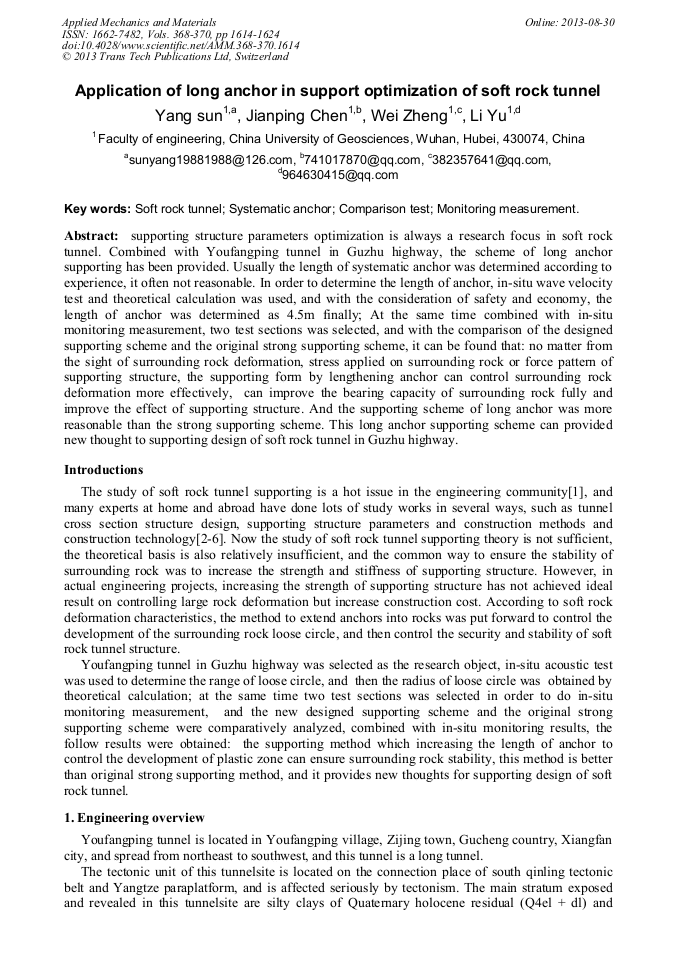

Application of Long Anchor in Support Optimization of Soft Rock Tunnel

Abstract:

supporting structure parameters optimization is always a research focus in soft rock tunnel. Combined with Youfangping tunnel in Guzhu highway, the scheme of long anchor supporting has been provided. Usually the length of systematic anchor was determined according to experience, it often not reasonable. In order to determine the length of anchor, in-situ wave velocity test and theoretical calculation was used, and with the consideration of safety and economy, the length of anchor was determined as 4.5m finally; At the same time combined with in-situ monitoring measurement, two test sections was selected, and with the comparison of the designed supporting scheme and the original strong supporting scheme, it can be found that: no matter from the sight of surrounding rock deformation, stress applied on surrounding rock or force pattern of supporting structure, the supporting form by lengthening anchor can control surrounding rock deformation more effectively, can improve the bearing capacity of surrounding rock fully and improve the effect of supporting structure. And the supporting scheme of long anchor was more reasonable than the strong supporting scheme. This long anchor supporting scheme can provided new thought to supporting design of soft rock tunnel in Guzhu highway.

• Periodical: Applied Mechanics and Materials (Volumes 368-370)
• Pages: 1614-1624
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.368-370.1614
• Online since: August 2013
• Authors: Yang Sun, Jian Ping Chen, Wei Zheng, Li Yu
• Keywords: Comparison Test, Monitoring Measurement, Soft Rock Tunnel, Systematic Anchor

References

[1] Xiexing Miu, Zhichun Chen. Soft rock mechanics[M]. Xuzhou: China University of Mining and Technology Press, (1995).

[2] Yun Jian, Yonglin Li, Tianbin Li, et al. Study of the Classifide System of Types and Mechanism of Great Distortion in Tunnel and Underground Engineering[J]. Journal of Geological Hazards and Environment Preservation, 2004(4): 46-51.

[3] Jun Lei, Jinzhu Zhang, Chuannian Lin. Analysis of Stress and Deformation Site-monitoring in Fault Zone of Wushaoling Tunnel under Complex Geological Conditions[J]. Rock and Soil Mechanics, 2008, 29(5): 1367-1371.

[4] Junfeng Xie, Jianping Chen. Features and Mechanism of Large Deformation of Huocheling Tunnel[J]. Journal of Wuhan University of Science and Technology: Natural Science Edition , 2007, 30(6): 647-651.

[5] Yanchun Li. Large Deformation Control Technology for Maoyushan Tunnel in Soft Rock under High in-situ Stresses[J]. Modern Tunnelling Technology, 2011, 48(2): 59-67.

[6] Zhichun Liu, Wenjiang Li, Minglei Sun, et al. Monitoring and Comprehensive Analysis in Section F4 of Wushaoling Tunnel[J]. Chinese Journal of Rock Mechanics and Engineering, 2006, 25(7): 1502-1511.

[7] Qiangang Zhou, Junbo Fang. Rapid Tunnel Construction Technology to Control Huge Deformation of Phyllite Ground: Case Study on Ridge Section of Wushaoling Tunnel[J]. Tunnel Construction, 2007, 27(4): 43-47.

[8] Zhidao Zhang. Discussion and Study on Large Deformation of Tunnel in Squeezing Ground[J]. Modern Tunnelling Technology, 2003, 40(2): 5-12.

[9] Jianxun Chen, Jiu-chun Jiang, Mengshu Wang. Function of Rock of Lattice Girder and Shotcrete Support Structure in Loess Tunnel[J]. China Journal of Highway and Transport, 2007, 20(3): 72-75.

[10] Ruigeng Han. New Austrian Tunneling Method of Underground Projects[M]. Science Press, (1987).

[11] Shixiong Zhang, Song Zhang, Kelie zhao. Ultrasonic Test and Analysis of Loose Circle of Gypsum Mine Roadway in Xinglong[J]. Copper Engineering, 2005(1): 18-21.

[12] Jianwu Gong, Caichu Xia, Hehua Zhu. Measurement and Analysis on Releasing Zone of Surrounding Rock in Heshang Tunnel[J]. China Journal of Underground Space and Engineering, 2007, 3(3): 475-478.

[13] Shixiong Zhang, Song Zhang, Gaofeng Ren. Ultrasonic Test of Loose Circle of Surrounding Rock in Chamber Roadway[J]. West-china Exploration Engineering, 2005(1): 99-100.

[14] Gang Liu. Study on the distribution law of the broken rock zone in mine square type roadway[D] . Xuzhou: China University of Mining and Technology , (2000).

[15] Xisheng Zhou, Hongwei Song. TheoryResearch on Loose Circle of Surrounding Rock Abroad[J]. Mine Construction Technology, 1994(Z1): 67-69.

[16] Youcai Sun, Jingshan Bo, Chao Sun. Study Method and Status of Loose Circle of Underground Cavity[J]. J. of Institute of Disaster-Prevention Science and Technology, 2009, 11(2): 13-17.

[17] Zhongsheng Tan, Yu Yu, Mingnian Wang, et al. Experimental Research on Bolt Effect on anchorage Effect on Large-section Deep-buried Tunnel inLoess[J]. Chinese Journal of Rock Mechanics and Engineering, 2008, 27(8): 1618-1625.

[18] Zhongsheng Tan, Yu Yu, Mingnian Wang, et al. Experimental Study on Bolt Effect on Large Section Shallow DepthLoess Tunnels[J]. Rock and Soil Mechanics, 2008, 29(2): 491-495.
