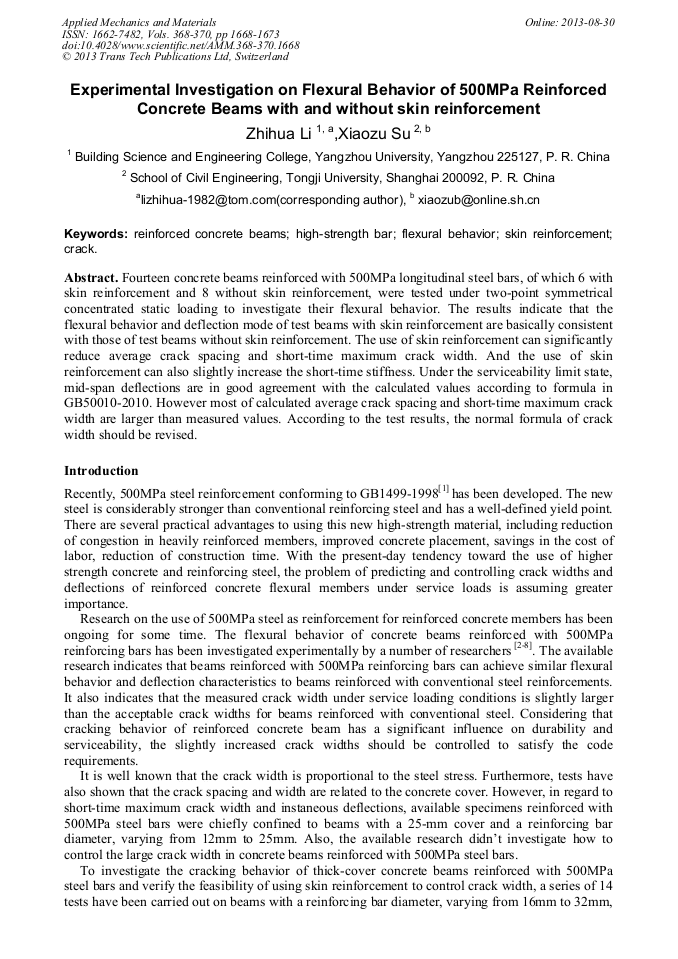

Experimental Investigation on Flexural Behavior of 500MPa Reinforced Concrete Beams with and without Skin Reinforcement

Abstract:

Fourteen concrete beams reinforced with 500MPa longitudinal steel bars, of which 6 with skin reinforcement and 8 without skin reinforcement, were tested under two-point symmetrical concentrated static loading to investigate their flexural behavior. The results indicate that the flexural behavior and deflection mode of test beams with skin reinforcement are basically consistent with those of test beams without skin reinforcement. The use of skin reinforcement can significantly reduce average crack spacing and short-time maximum crack width. And the use of skin reinforcement can also slightly increase the short-time stiffness. Under the serviceability limit state, mid-span deflections are in good agreement with the calculated values according to formula in GB50010-2010. However most of calculated average crack spacing and short-time maximum crack width are larger than measured values. According to the test results, the normal formula of crack width should be revised.

• Periodical: Applied Mechanics and Materials (Volumes 368-370)
• Pages: 1668-1673
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.368-370.1668
• Online since: August 2013
• Authors: Zhi Hua Li, Xiao Zu Su
• Keywords: Crack, Flexural Behavior, High-Strength Bar, Reinforced Concrete (RC) Beam, Skin Reinforcement

References

[1] Standards China. (1998). Hot ribbed bar of reinforced concrete(GBl499-1998). Beijing: China Building Industry Press. (In Chinese).

[2] Jiwei Zhang, Wenjie Ge, Huang Dai, Yongming Tu. Experimental study on the flexural behavior of concrete beam reinforced with HRBF500 steel bars. Advanced Material Research, Vol. 168-170 (2011), pp.1518-1523.

DOI: 10.4028/www.scientific.net/amr.168-170.1518

[3] Ting Zhang. (2004). Experimental research on the performance of flexural members reinforced with 500MPa steel bars. MSc thesis, Zhengzhou University. (In Chinese).

[4] Jinjie Zhao. (2008). Experimental investigation of flexural performance of concrete beams with HRBF500 bars. MSc thesis, Beijing Industrial University. (In Chinese).

[5] Tiecheng Wang, Yanyan Li, Xian Rong. Test for bending behavior of reinforced concrete beam with 500Mpa steel bar. Journal of Tian Jin University, Vol. 40 (2007), pp.507-511. (In Chinese).

[6] Qiong Li. (2009). Experimental and theoretical study on crack widths of full scale reinforced concrete beams with HRB500 Bars. MSc thesis, Hunan University. (In Chinese).

[7] Mingping Wang, Ziqiong Zhang, Shujiang Geng. Experimental of reinforced concrete simply supported beam with 500Mpa ribbed carbon bars under bending. Industrial Building, Vol. 37 (2007), pp.39-42. (In Chinese).

[8] Fei Chen. (2009). Experimental research on the short-time crack width formulae of concrete beams reinforced with 500MPa steel bars. MSc thesis, Tongji University. (In Chinese).

[9] Standards China. (2010). Code for design of concrete structures(GB50010-2010). Beijing: China Building Industry Press. (In Chinese).
