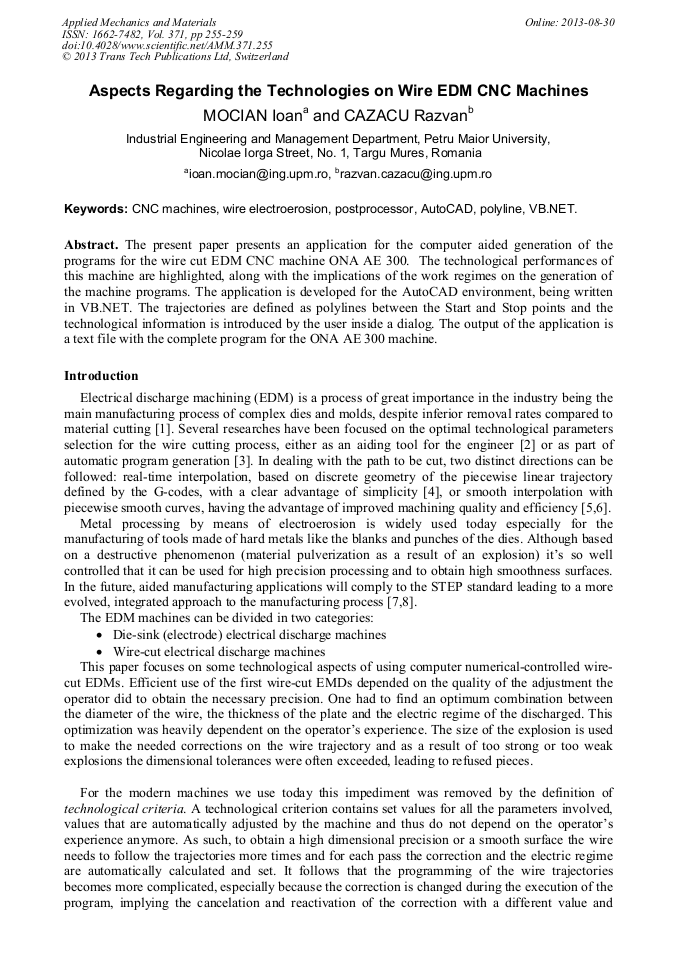

Aspects Regarding the Technologies on Wire EDM CNC Machines

Abstract:

The present paper presents an application for the computer aided generation of the programs for the wire cut EDM CNC machine ONA AE 300. The technological performances of this machine are highlighted, along with the implications of the work regimes on the generation of the machine programs. The application is developed for the AutoCAD environment, being written in VB.NET. The trajectories are defined as polylines between the Start and Stop points and the technological information is introduced by the user inside a dialog. The output of the application is a text file with the complete program for the ONA AE 300 machine.

• Periodical: Applied Mechanics and Materials (Volume 371)
• Pages: 255-259
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.371.255
• Online since: August 2013
• Authors: Ioan Mocian, Razvan Cazacu
• Keywords: Auto CAD, CNC Machines, Polyline, Postprocessor, VB.net, Wire Electroerosion

References

[1] M.S. Popa, New technologies and applications of EDM process, International Journal of Material Forming. 2, 1 Supplement (2009) 633-636.

[2] A. Manna, B. Bhattacharyya, Taguchi and Gauss elimination method: A dual response approach for parametric optimization of CNC wire cut EDM of PRAlSiCMMC, The International Journal of Advanced Manufacturing Technology. 28, 1-2 (2006) 67-75.

DOI: 10.1007/s00170-004-2331-0

[3] T. T. El-Midany, A. Elkeran, H. T. Radwan, CNC Automatic Programming System for Wire-EDM, Lecture Notes in Computer Science. 1611 (1999) 889-896.

DOI: 10.1007/978-3-540-48765-4_94

[4] H. Li, R.T. Farouki, D. Wang, Foreword to the Special Focus on Mathematics and Algorithms for CAM and CNC, Mathematics in Computer Science. 6, 3 (2012) 267-268.

DOI: 10.1007/s11786-012-0122-9

[5] M. -Y. Yang, J. -H. Park, A Study on an Open Architecture CNC System with a NURBS Interpolator for WEDM, The International Journal of Advanced Manufacturing Technology. 19, 9 (2002) 664-668.

DOI: 10.1007/s001700200111

[6] J. Li, T. Zhang, Z. Li, An adaptive off-line NURBS interpolator for CNC machining, The International Journal of Advanced Manufacturing Technology. 63, 5-8 (2012) 719-729.

DOI: 10.1007/s00170-012-3936-3

[7] X.W. Xu, S.T. Newman, Making CNC machine tools more open, interoperable and intelligent - a review of the technologies, Computers in Engineering. 57, 2 (2009) 141–152.

DOI: 10.1016/j.compind.2005.06.002

[8] V.K. Nguyen, J. Stark, STEP-compliant CNC Systems, Present and Future Directions in Advanced Design and Manufacturing Based on STEP, Springer Series in Advanced Manufacturing, 2009, pp.215-231.

DOI: 10.1007/978-1-84882-739-4_10

[9] I. Mocian, R. Cazacu, New advances in application development for AutoCAD environment, Proceedings of the 9-th International Conference MTeM, 2009, pp.181-186.

[10] I. Mocian, Computer Aided Technology in machine building (in Romanian), Editura Universitatii Petru Maior, Targu Mures, (1999).

[11] AutoCAD Developer Documentation website (online), 2012, available at: http: /usa. autodesk. com/adsk/servlet/index?siteID=123112&id=1911627 accessed 20. 12. (2012).

[12] VB. NET Documentation website (online), 2008, available at: http: /msdn. microsoft. com/en-us/library/2x7h1hfk%28v=vs. 90%29 accessed 20. 12. (2012).
