Position Control of 3-DOF Underactuated Manipulators with Last Passive Joint Using Fuzzy Logic Control

Abstract:

Underactuated manipulator is one kind of second order nonholonomic dynamics systems. How to control this system is still an open problem. This paper proposes a fuzzy strategy to control three DOF underactuated manipulator with a last passive joint. Four measures are selected to construct the fuzzy logic controller. The four measures are divided into two classes; one class is concerning first link, another class concerning the second link. Four fuzzy logic processors are designed to deal with the measure errors, respectively. The four fuzzy logic processors are also divided into two classes according to the two measure classes. Then, the processed results from the four processors are composed to produce control signs to compensate the errors occurring in the manipulator motion. This method simplifies the design of the fuzzy logic controller. Finally, numerical simulation verifies the fuzzy controller.

You might also be interested in these eBooks

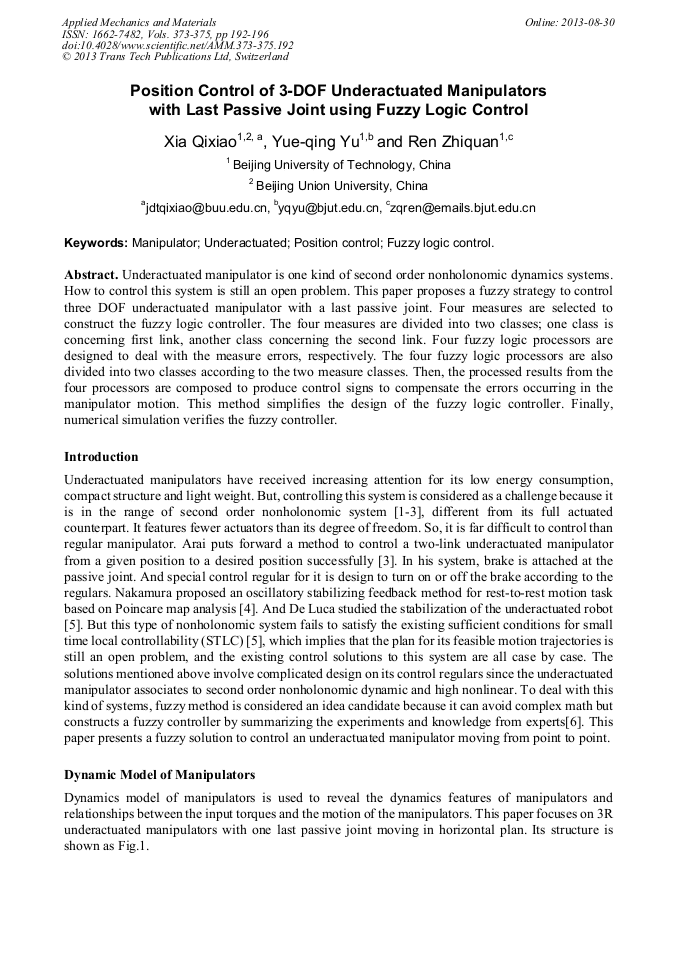

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 373-375)

Pages:

192-196

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.373-375.192

Citation:

Cite this paper

Online since:

August 2013

Authors:

Qi Xiao Xia, Yue Qing Yu, Zhi Quan Ren

Keywords:

Fuzzy Logic Control, Manipulator, Position Control, Underactuated

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Jain A, Rodriguez G: An analysis of kinematics and dynamics of under-actuated manipulators IEEE Transaction on Robotics and Automation Vol. 9(1993), pp.411-422.

Google Scholar

[2] Bergman M, Xu Y S: Optimal control of under-actuated manipulators: analysis and implementation IEEE Transaction on Robotics and Automation Vol. 10(1994), pp.925-931.

Google Scholar

[3] Arai H, Tanie K: Time-scaling control of an under-actuated manipulator Journal of Robotic Systems Vol. 15(1998), pp.525-536.

DOI: 10.1002/(sici)1097-4563(199809)15:9<525::aid-rob4>3.0.co;2-m

Google Scholar

[4] Nakamura Y, Suzuki T: Nonlinear behavior and control of a nonholonomic free-joint manipulator IEEE Trans Robotics and Automation Vol. 6(1997), pp.853-862.

DOI: 10.1109/70.650164

Google Scholar

[5] A. De Luca, R. M and G. Oriolo: Stabilization of underactuated robots: Theory and experiments for a planar 2R manipulator IEEE Int. Conf on Robotics and Automation., New Mexico, April 1997, pp.3274-3280.

DOI: 10.1109/robot.1997.606788

Google Scholar

[6] Zeng Xiaojun, Madan G. Singh: Approximation theory of fuzzy systems- MIMO case IEEE Transaction on Fuzzy Systems. Vol. 3(1995), pp.219-235.

DOI: 10.1109/91.388175

Google Scholar
