Operating System for the Dynamic Belt Measurement

Abstract:

Firstly, The core model, structure module, performance characteristics and JTAG debug interface of the microprocessor were described by this article. Then, the system power supply module, prior to the passage weighing signal and tachometer signal circuits were designed in this paper. Secondly, according to the operational needs of the belt scale system, the external memory circuit and the TFT-LCD touch screen circuit modules were studied. Finally, the high-speed circuit board PCB designed to solve EMC problems. And it described the data collection and weighing controller bus communication test situation and established the communications test platform of Profibus-DP, introduced the test experimental procedures, experiment shows the communication between master and slave test results are correct.The computing speed and accuracy, data processing compared with traditional electronic belt scale, information exchange, integration, reliability and stability will be greatly improved by the advanced embedded technology and so on.

You might also be interested in these eBooks

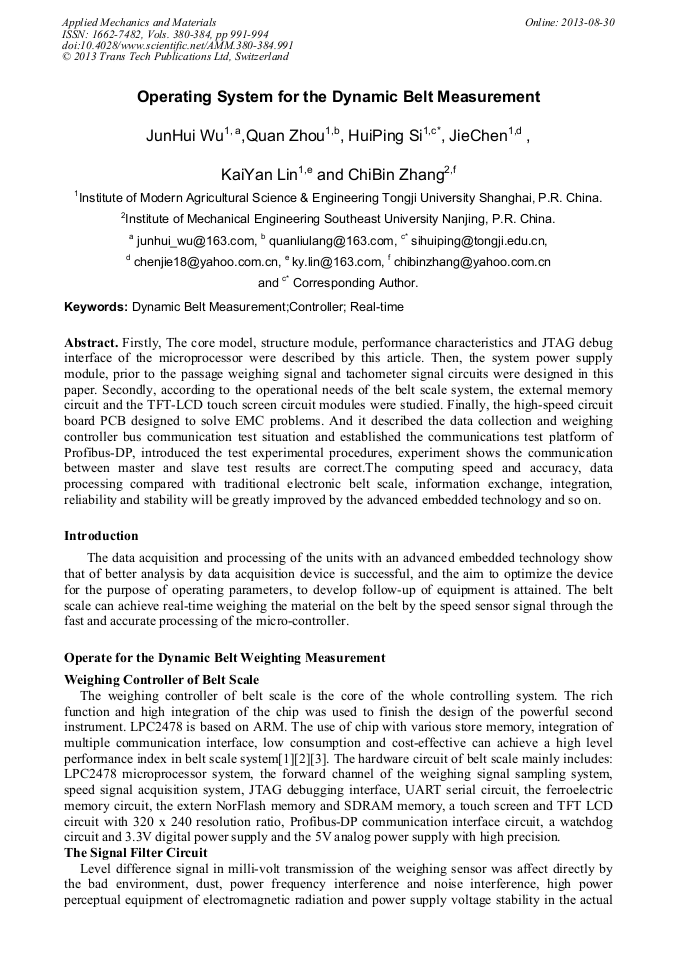

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 380-384)

Pages:

991-994

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.380-384.991

Citation:

Cite this paper

Online since:

August 2013

Authors:

Jun Hui Wu, Quan Zhou, Hui Ping Si, Jie Chen, Kai Yan Lin, Chi Bin Zhang

Keywords:

Controller, Dynamic Belt Measurement, Real-Time

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Giannis Sinevriotis and Thanos Stouraitis. Low-Energy Software Optimization for the ARM7 Processor: The Software Scheduling Approach[J]. System-Level Power Optimization for Wireless Multimedia Communication. 2002, 87-95.

DOI: 10.1007/0-306-47720-3_6

Google Scholar

[2] GuidianFengbao Union Lab. ARM principle and embedded applicationsbased on LPC2400 series processor and IAR development environment[M]. Beijing: Electronic Industry Press, (2008).

Google Scholar

[3] NXP Semiconductors. LPC24xx User Manual. October29, (2007).

Google Scholar

[4] Sunhexu, Liangtao, Yunlijun. The Design and Development of Field Bus Control System[M]. Beijing: National Defence Industry Press, (2007).

Google Scholar
