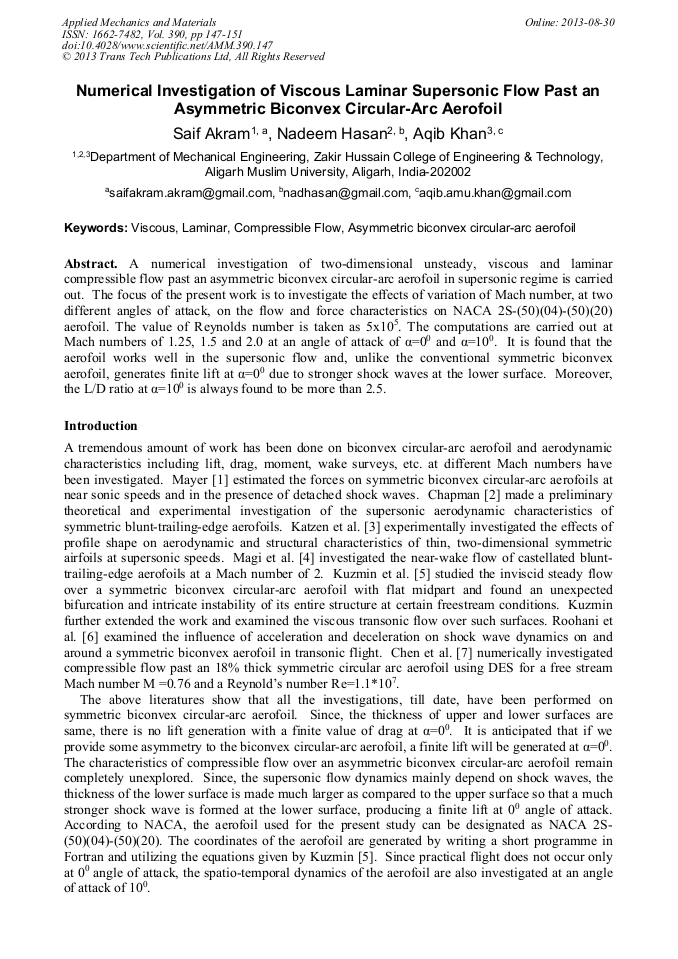

Numerical Investigation of Viscous Laminar Supersonic Flow Past an Asymmetric Biconvex Circular-Arc Aerofoil

Abstract:

A numerical investigation of two-dimensional unsteady, viscous and laminar compressible flow past an asymmetric biconvex circular-arc aerofoil in supersonic regime is carried out. The focus of the present work is to investigate the effects of variation of Mach number, at two different angles of attack, on the flow and force characteristics on NACA 2S-(50)(04)-(50)(20) aerofoil. The value of Reynolds number is taken as 5x10⁵. The computations are carried out at Mach numbers of 1.25, 1.5 and 2.0 at an angle of attack of α=0° and α=10°. It is found that the aerofoil works well in the supersonic flow and, unlike the conventional symmetric biconvex aerofoil, generates finite lift at α=0° due to stronger shock waves at the lower surface. Moreover, the L/D ratio at α=10° is always found to be more than 2.5.

• Periodical: Applied Mechanics and Materials (Volume 390)
• Pages: 147-151
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.390.147
• Online since: August 2013
• Authors: Saif Akram, Nadeem Hasan, Aqib Khan
• Keywords: Asymmetric Biconvex Circular-Arc Aerofoil, Compressible Flow, Laminar, Viscous

References

[1] Mayer, J. P., Estimation of lift and drag of airfoils at near sonic speeds and in the presence of detached shock waves, NACA RM No. L8L07, February (1949).

[2] Chapman, D. R., Reduction of profile drag at supersonic velocities by the use of airfoil sections having a blunt trailing edge, NACA TN 3503, September (1955).

[3] Katzen, E. D., Kuehn, D. M., Hill, W. A., Investigation of the effects of profile shape on the aerodynamic and structural characteristics of thin, two-dimensional airfoils at supersonic speeds, NACA TN 4039, September (1957).

[4] Magi, E. C. and Gai, S. L., Flow behind castellated blunt­trailing­edge aerofoils at supersonic speeds, Journal of Fluid Mechanics (1998), 375, p.85­111 doi: 10. 1017/ S0022112098002699.

DOI: 10.1017/s0022112098002699

[5] Kuzmin, A., Bifurcations of Transonic Flow Past Flattened Airfoils, Keynote Lecture at the Fifth International Conference on Computational Fluid Dynamics, July 8, 2008, Seoul National University, Korea.

[6] Roohani, H., Skews, B. W., The influence of acceleration and deceleration on shock wave movement on and around aerofoils in transonic flight, Shock Waves (2009) 19: 297–305 DOI 10. 1007/s00193-009-0207-9.

DOI: 10.1007/s00193-009-0207-9

[7] Li-Wei Chen, Chang-Yue Xu and Xi-Yun Lu, Numerical investigation of the compressible flow past an aerofoil, J. Fluid Mech. (2010), vol. 643, p.97–126. Cambridge University Press 2009, doi: 10. 1017/S0022112009991960.

DOI: 10.1017/s0022112009991960
