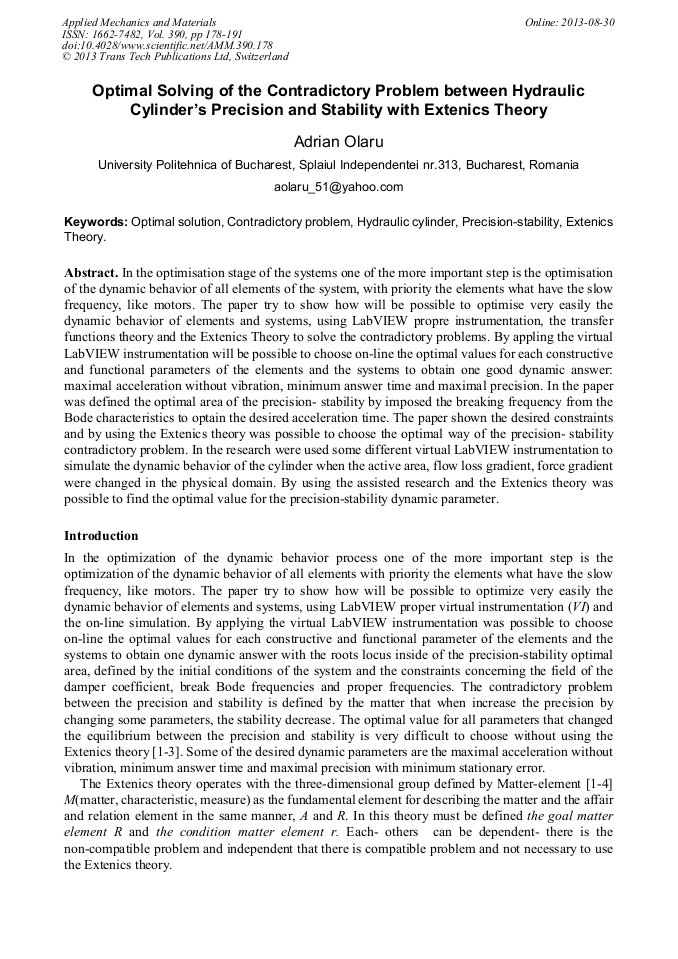

Optimal Solving of the Contradictory Problem between Hydraulic Cylinder's Precision and Stability with Extenics Theory

Abstract:

In the optimisation stage of the systems one of the more important step is the optimisation of the dynamic behavior of all elements of the system, with priority the elements what have the slow frequency, like motors. The paper try to show how will be possible to optimise very easily the dynamic behavior of elements and systems, using LabVIEW propre instrumentation, the transfer functions theory and the Extenics Theory to solve the contradictory problems. By appling the virtual LabVIEW instrumentation will be possible to choose on-line the optimal values for each constructive and functional parameters of the elements and the systems to obtain one good dynamic answer: maximal acceleration without vibration, minimum answer time and maximal precision. In the paper was defined the optimal area of the precision-stability by imposed the breaking frequency from the Bode characteristics to optain the desired acceleration time. The paper shown the desired constraints and by using the Extenics theory was possible to choose the optimal way of the precision-stability contradictory problem. In the research were used some different virtual LabVIEW instrumentation to simulate the dynamic behavior of the cylinder when the active area, flow loss gradient, force gradient were changed in the physical domain. By using the assisted research and the Extenics theory was possible to find the optimal value for the precision-stability dynamic parameter.

• Periodical: Applied Mechanics and Materials (Volume 390)
• Pages: 178-191
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.390.178
• Online since: August 2013
• Authors: Adrian Olaru
• Keywords: Contradictory Problem, Extenics Theory, Hydraulic Cylinder, Optimal Solution, Precision-Stability

References

[1] Cai Wen, The Extension Set and Non- compatible Problems, Editor Chien Weizang, Advances Mathematics and Mechanics in China (Vol. 2), International Academic Publisher, 1990, pp.1-21.

[2] Cai Wen, Matter-element Models and Their Applications, Beijing: Science and Technology Document, Publishing House, (1994).

[3] Cai Wen, Introduction of matter- element analysis. Artificial Intelligent, 1983, p.2.

[4] Yang Chunyan, Cai Wen, Extenics: Theory, Method and Application, Science Press, 2002, (P.R. China).

[5] Olaru A., Assisted optimization of the elements and systems with LabVIEW instrumentation, Bren Publishing house, Bucharest, (2000).

[6] Olaru, A., Olaru, S., Assisted optimization of the electro-hydraulic servo driving with LabVIEW instrumentation, The 6th Iranian Aerospace Society Conference- Feb. 2007-K.N. Toosi University of Technology, Teheran, Iran, (2007).

[7] Olaru A., Olaru S., Assisted dynamic behavior optimization of the robots elements and systems with the virtual instrumentation, 15th Annual (International) Mechanical Engineering Conference May 2007, Amirkabir University of Technology, Tehran, Iran, (2007).

[8] Olaru, A. & Olaru, S., Research of the global dynamic compliance and the viscose global dynamic damper coefficient of the industrial robot- DAAAM Intelligent Manufacturing & Automation: Focus on Mechatronics & Robotics, 08-11th November 2006, Viena, Austria.

[9] Olaru A., Olaru S., Research of the industrial robot fourier spectrum with LabVIEW Instrumentation, First Regional Conference of Mechanical Engineering Islamic Azad University, Majlessi New Town Branch December 13th, (2006).

[10] Olaru A., Assisted research of the industrial robots global dynamic compliance with LabVIEW Instrumentation, Proceedings ICMaS Published by Editura Academiei Romane, University Politehnica of Bucharest, Romania, 26 - 27 October, (2006).

[11] Olaru, A., Assisted research with virtual LabVIEW instrumentation of the industrial robots vibration behavior, Acta Mechannica Slovaca, Vishe Ruzbachy, Slovacia (2004).

[12] Olaru A., Olaru S., Peli Al., Paune D. 3D complex trajectory by using the robots and perirobots components, 9th International Conference on Automation/ Robotics in Theory and Practice, Slovakia 2008, pp.431-444.

[13] Olaru, A, Olaru S., Ciupitu, L., Assisted research of the neural network by back propagation Algorithm, OPTIROB2010 International Conference, Calimanesti, Romania, RPS Singapore Book, pp.194-200, 2010 (ISI clasification).

DOI: 10.4028/www.scientific.net/amr.463-464.1151
