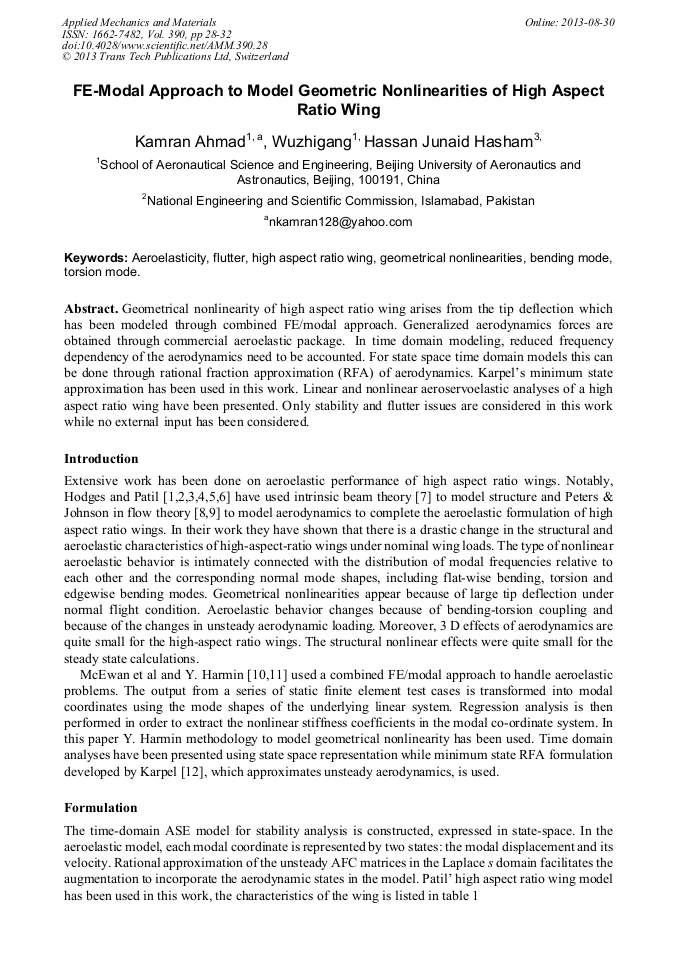

FE-Modal Approach to Model Geometric Nonlinearities of High Aspect Ratio Wing

Abstract:

Geometrical nonlinearity of high aspect ratio wing arises from the tip deflection which has been modeled through combined FE/modal approach. Generalized aerodynamics forces are obtained through commercial aeroelastic package. In time domain modeling, reduced frequency dependency of the aerodynamics need to be accounted. For state space time domain models this can be done through rational fraction approximation (RFA) of aerodynamics. Karpels minimum state approximation has been used in this work. Linear and nonlinear aeroservoelastic analyses of a high aspect ratio wing have been presented. Only stability and flutter issues are considered in this work while no external input has been considered.

• Periodical: Applied Mechanics and Materials (Volume 390)
• Pages: 28-32
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.390.28
• Online since: August 2013
• Authors: Kamran Ahmad, Zhi Gang Wu, Hassan Junaid Hasham
• Keywords: Aeroelasticity, Bending Mode, Flutter, Geometrical Nonlinearities, High Aspect Ratio Wing, Torsion Mode

References

[1] M.J. Patil, D.H. Hodges, and C.E.S. Cesnik, Characterizing the Effects of Geometrical Nonlinearities on Aeroelastic Behavior of High-Aspect-Ratio Wings, Aerospace Engineering, p.1–13, (1999).

[2] M.J. Patil and D.H. Hodges, On the importance of aerodynamic and structural geometrical nonlinearities in aeroelastic behavior of high-aspect-ratio wings, Journal of Fluids and Structures, vol. 19, p.905–915, Aug. (2004).

DOI: 10.1016/j.jfluidstructs.2004.04.012

[3] M. J. Patil, D. H. Hodges, and C. E. S. Cesnik, Nonlinear aeroelastic analysis of aircraft with high-aspect-ratio wings , in Proceedings of the 39th Structures, Structural Dynamics, and Materials Conference, 1998, p.20–23.

DOI: 10.2514/6.1998-1955

[4] M.J. Patil and D.H. Hodges, Nonlinear Aeroelastic Analysis of Complete Aircraft in Subsonic Flow , Journal of Aircraft, vol. 37, no. 5, (2000).

DOI: 10.2514/2.2685

[5] M. J. Patil and D. H. Hodges, Flight Dynamics of Highly Flexible Flying Wings., Journal of Aircraft, vol. 43, no. 6, p.1790–1799, (2006).

DOI: 10.2514/1.17640

[6] M.J. Patail D H. Hodges, Limit-cycle oscillations in high-aspect-ratio wings, Journal of fluids and structures, p.107–132, (2001).

DOI: 10.1006/jfls.2000.0329

[7] Hodges Dewey H, A Mixed Variational Formulation Based On Exact Intrinsic quationsFor Dynamics Of Moving Beams., journal of solid and Structures, vol. 26, no. 11, p.1253–1273, (1990).

DOI: 10.1016/0020-7683(90)90060-9

[8] M.J. Peters, D, and Johnson, Finite-State Airloads for Deformable Airfoils on Fixed and Rotating Wings, Aeroelasticity and Fluid/ Structure Interaction, American Society of Mechanical Engineers, p.1–28, (1994).

[9] David A. Peters and Wen-Ming Cao, Finite State Induced Flow Models Part I: Two- Dimensional Thin Airfoil., Journal of Aircraft, vol. 32, no. 2, p.313–322, (1995).

DOI: 10.2514/3.46718

[10] M. Mcewan, a Combined Modal/Finite Element Analysis Technique for the Dynamic Response of a Non-Linear Beam To Harmonic Excitation, Journal of Sound and Vibration, vol. 243, no. 4, p.601–624, Jun. (2001).

DOI: 10.1006/jsvi.2000.3434

[11] Y. Harmin and J E Cooper, Efficient Prediction of Aeroelastic Behaviour Including Geometric Non-Linearities ., AIAA Journal, April, p.1–13, (2010).

[12] M. Karpel, Design for active flutter suppression and gust alleviation using state-space aeroelastic modeling, Journal of Aircraft, vol. 19, no. 3, p.221–227, (1982).

DOI: 10.2514/3.57379

[13] Zona Technology Inc, ZAERO Theoretica Manual. (2008).

[14] Kamran Ahmad Wuzhigang Hammad Rahman, Aeroelastic Analysis of High Aspect Ratio Wing, in Proceedings of 10th International Bhurban Conference on Science and Technology, 15-19 Jan, p-219-223, (2013).

DOI: 10.1109/ibcast.2013.6512157
