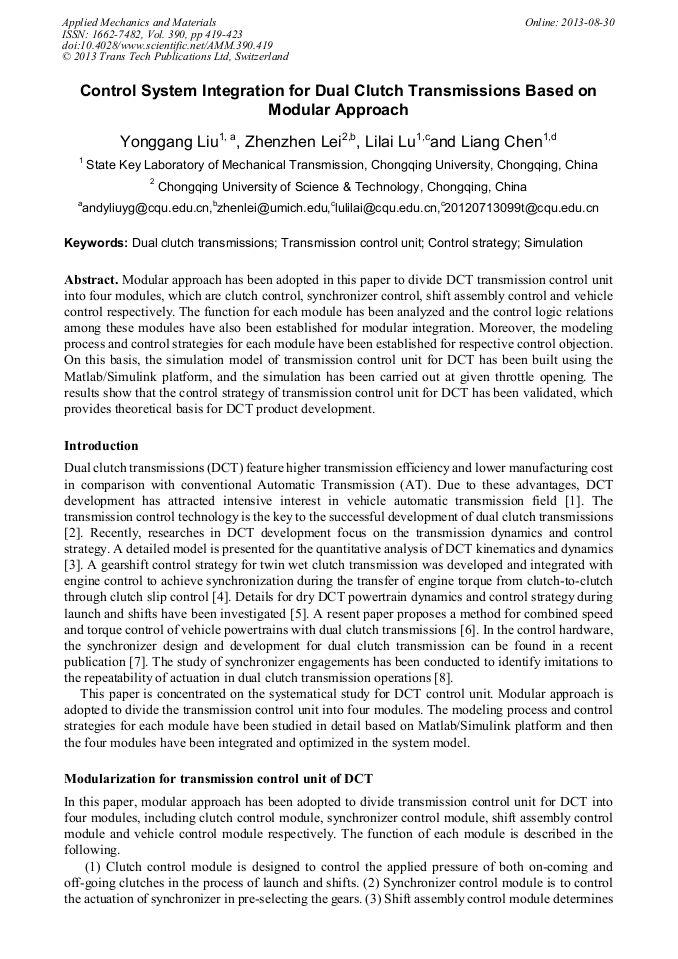

Control System Integration for Dual Clutch Transmissions Based on Modular Approach

Abstract:

Modular approach has been adopted in this paper to divide DCT transmission control unit into four modules, which are clutch control, synchronizer control, shift assembly control and vehicle control respectively. The function for each module has been analyzed and the control logic relations among these modules have also been established for modular integration. Moreover, the modeling process and control strategies for each module have been established for respective control objection. On this basis, the simulation model of transmission control unit for DCT has been built using the Matlab/Simulink platform, and the simulation has been carried out at given throttle opening. The results show that the control strategy of transmission control unit for DCT has been validated, which provides theoretical basis for DCT product development.

• Periodical: Applied Mechanics and Materials (Volume 390)
• Pages: 419-423
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.390.419
• Online since: August 2013
• Authors: Yong Gang Liu, Zhen Zhen Lei, Li Lai Lu, Liang Chen
• Keywords: Control Strategy, Dual Clutch Transmissions, Simulation, Transmission Control Unit

References

[1] Wheals J, Turner A, Ramasy K, et al. Double Clutch Transmission Using Multiplexed Linear Actuation Technology and Dry Clutches for High Efficiency and Low Cost. SAE paper No. 2007-01-1096.

DOI: 10.4271/2007-01-1096

[2] Goetz M, Levesley M, Crolla D. Integrated Powertrain Control of Gearshifts on Twin Clutch Transmissions. Transmission & Driveline Systems Symposium 2004, SAE paper No. 2004-01-1637.

DOI: 10.4271/2004-01-1637

[3] E. Galvagno, M. Velardocchia, A. Vigliani. Dynamic and kinematic model of a dual clutch transmission. Mechanism and Machine Theory, 2011, (46): 794-805.

DOI: 10.1016/j.mechmachtheory.2011.01.013

[4] Goetz M, Levesley M, Crolla D. Dynamics and Control of Gearshift on Twin-Clutch Transmissions, " Journal of Automobile Engineering, 2005, 219(8): 951-963.

DOI: 10.1243/095440705x34720

[5] Liu Y, Qin D, Jiang H, Zhang Y. A Systematic Model for Dynamics and Control of Dual Clutch Transmissions. Journal of Mechanical Design, Transaction of ASME, 2009, Vol. 131, No. 061012.

DOI: 10.1115/1.3125883

[6] Paul D. Walker, Nong Zhang, Richard Tamba. Control of gear shifts in dual clutch transmission powertrains. Mechanical Systems and Signal Processing, 2011, (25): 1923-(1936).

DOI: 10.1016/j.ymssp.2010.08.018

[7] Razzacki S, Hottenstein J. Synchronizer Design and Development for Dual Clutch Transmission (DCT), SAE paper No. 2007-01-0114.

DOI: 10.4271/2007-01-0114

[8] Paul D. Walker, Nong Zhang. Engagement and control of synchroniser mechanisms in dual clutch transmissions. Mechanical Systems and Signal Processing, 2012, (26): 320-332.

DOI: 10.1016/j.ymssp.2011.07.016
