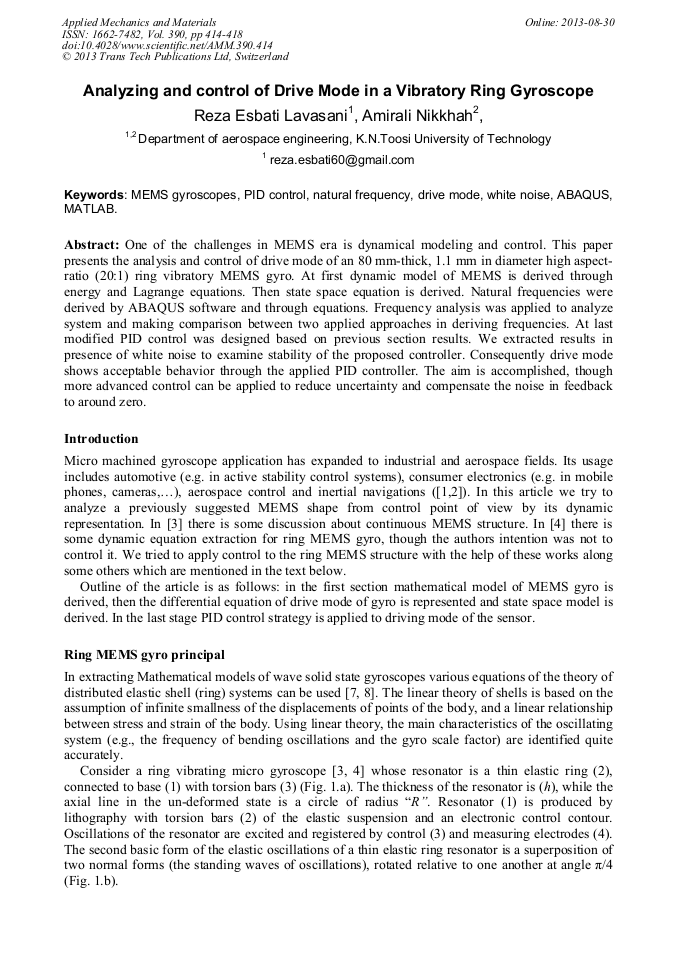

Analyzing and Control of Drive Mode in a Vibratory Ring Gyroscope

Abstract:

One of the challenges in MEMS era is dynamical modeling and control. This paper presents the analysis and control of drive mode of an 80 mm-thick, 1.1 mm in diameter high aspect-ratio (20:1) ring vibratory MEMS gyro. At first dynamic model of MEMS is derived through energy and Lagrange equations. Then state space equation is derived. Natural frequencies were derived by ABAQUS software and through equations. Frequency analysis was applied to analyze system and making comparison between two applied approaches in deriving frequencies. At last modified PID control was designed based on previous section results. We extracted results in presence of white noise to examine stability of the proposed controller. Consequently drive mode shows acceptable behavior through the applied PID controller. The aim is accomplished, though more advanced control can be applied to reduce uncertainty and compensate the noise in feedback to around zero.

• Periodical: Applied Mechanics and Materials (Volume 390)
• Pages: 414-418
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.390.414
• Online since: August 2013
• Authors: Reza Esbati Lavasani, Amirali Nikkhah
• Keywords: ABAQUS, Drive Mode, MATLAB, MEMS Gyroscopes, Natural Frequency, PID Control, White Noise

References

[1] Cenk Acar, Andrei Shkel, MEMS Vibratory Gyroscopes, 2009 Springer Science, Business Media, LLC.

[2] A. M. Shkel, Type I and Type II Micromachined Vibratory Gyroscopes, in the Proceeding of 2006 IEEE/ION Position, Location, and Navigation Symposium, 2006, pp.586-593.

DOI: 10.1109/plans.2006.1650648

[3] Farrokh Ayazi, and Khalil Najafi, A HARPSS Polysilicon Vibrating Ring Gyroscope High Aspect-Ratio Combined Poly and Single-Crystal, journal of Micro electromechanical systems, vol. 10, No2, June 2001, pa 169.

DOI: 10.1109/84.925732

[4] Mohammad Faisal Zaman, Degree-Per-Hour Mode-Matched Micro machined Silicon Vibratory Gyroscopes, Georgia Institute of Technology, April 2008‏.

[5] Sang Won Yoon, Vibration Isolation and Shock Protection for MEMS, submitted in partial fulfillment of the requirements for the degree of Doctor of Philosophy (Electrical Engineering) in The University of Michigan (2009).

[6] Werner Soedel, Vibrations of Shells and Plates, Third Edition, Revised and Expanded, Dept. of Mechanical Engineer ring, Purdue University, Indiana, 2004 by Marcel Dekker , Inc.

[7] Katsuhiko Ogata, Modern Control Engineering, Fifth Edition, 2002, 1997, 1990, 1970 Pearson Education, Inc.

[8] Reza Esbati Lavasani, Adaptive control of drive mode of a vibrational MEMS gyroscope with continuous structure, a dissertation submitted in partial fulfillment of degree of Master of Science (Aerospace Engineering), in the K.N. TOOSI UNIVERSITY OF TECHNOLOGY, February 2012‏.
