Characterization of Fracture Properties of Epoxy-Alumina Polymer Nanocomposite

Dharmendra Kumar Shukla; pankaj sonia; Vijay Verma

doi:10.4028/www.scientific.net/AMM.390.557

Paper Titles

Uniaxial Mechanical Response of Polycrystalline Shape Memory Alloys
p.537

Thermo-Mechanical Behaviour of an Innovant Straw Lime Composite for Thermal Insulation Applications
p.542

Investigation of Mechanical Properties and Microstructure of AA2024 and AA7075
p.547

Preparation of TiO₂/Bio-Composite Film by Sol-Gel Method in VOCs Photocatalytic Degradation Process
p.552

Characterization of Fracture Properties of Epoxy-Alumina Polymer Nanocomposite
p.557

Damage Induced Anisotropy of Elastic Wave Velocities in Geomaterials under Uniaxial Compression: Numerical Investigation by a Quasi-Micromechanical Approach
p.562

Strengthening and Toughening of Unsaturated Polyester by Using Some Additives in Gear Application
p.567

The Finite Element Analysis for Dimensional Accuracy in Roll Bending of Aluminum-Polymer Laminated Sheet
p.574

Tool Selection for Machining of Free Form Surfaces
p.581

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 390Characterization of Fracture Properties of...

Characterization of Fracture Properties of Epoxy-Alumina Polymer Nanocomposite

Abstract:

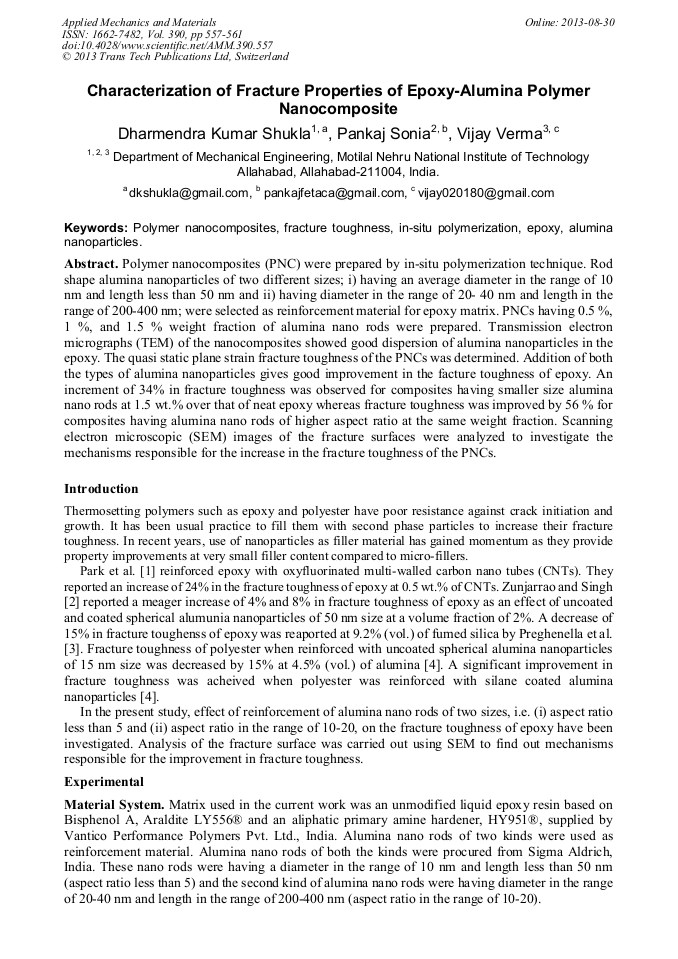

Polymer nanocomposites (PNC) were prepared by in-situ polymerization technique. Rod shape alumina nanoparticles of two different sizes; i) having an average diameter in the range of 10 nm and length less than 50 nm and ii) having diameter in the range of 20-40 nm and length in the range of 200-400 nm; were selected as reinforcement material for epoxy matrix. PNCs having 0.5 %, 1 %, and 1.5 % weight fraction of alumina nanorods were prepared. Transmission electron micrographs (TEM) of the nanocomposites showed good dispersion of alumina nanoparticles in the epoxy. The quasi static plane strain fracture toughness of the PNCs was determined. Addition of both the types of alumina nanoparticles gives good improvement in the facture toughness of epoxy. An increment of 34% in fracture toughness was observed for composites having smaller size alumina nanorods at 1.5 wt.% over that of neat epoxy whereas fracture toughness was improved by 56 % for composites having alumina nanorods of higher aspect ratio at the same weight fraction. Scanning electron microscopic (SEM) images of the fracture surfaces were analyzed to investigate the mechanisms responsible for the increase in the fracture toughness of the PNCs.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 390)

Pages:

557-561

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.390.557

Citation:

Cite this paper

Online since:

August 2013

Authors:

Dharmendra Kumar Shukla, pankaj sonia, Vijay Verma

Keywords:

Alumina Nanoparticles, Epoxy, Fracture Toughness, In Situ Polymerization, Polymer Nanocomposites

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S.J. Park, H.J. Jeong and C. Nah C: Mater. Sci. and Engg. A Vol. 385 (2004), p.13.

Google Scholar

[2] S.C. Zunjarrao and R.P. Singh: Comp. Sci. Tech. Vol. 66 (2006), p.296.

Google Scholar

[3] M. Preghenella, A. Pegoretti and C. Migliaresi: Polymer Vol. 46 (2005), p.12065.

Google Scholar

[4] M. Zhang and R.P. Singh: Mater. Letter Vol. 58 (2002), p.408.

Google Scholar

[5] D5045-99, Standard test methods for plane-strain fracture toughness and energy release rate of plastic materials, Annual Book of ASTM Standards (American Society of Testing and Materials, West Conshohocken, 2004).

DOI: 10.1520/d5045-99r07e01

Google Scholar
