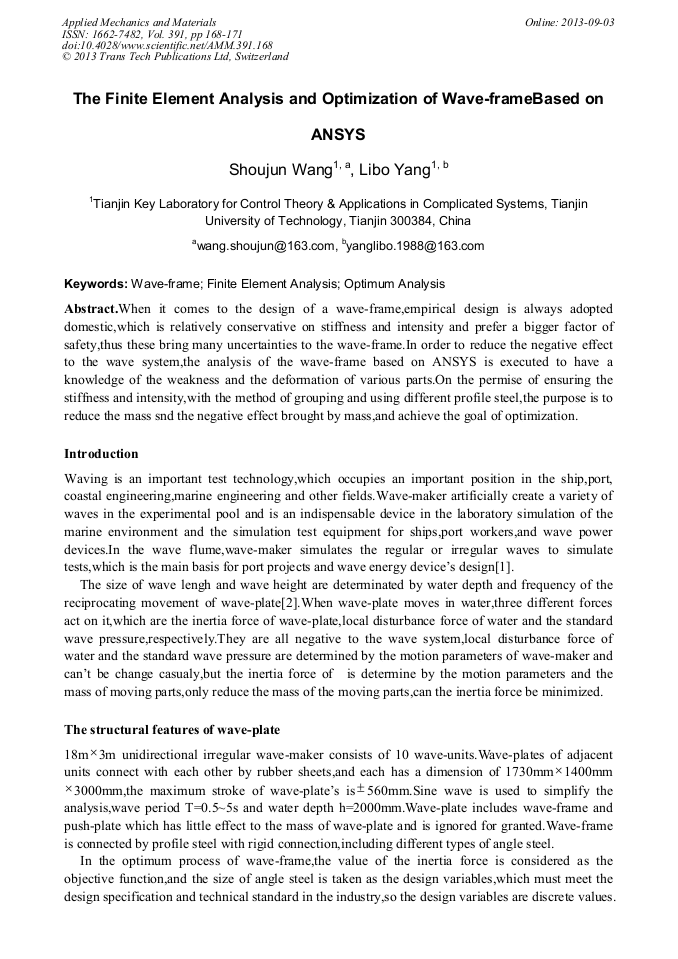

The Finite Element Analysis and Optimization of Wave-Framebased on ANSYS

Abstract:

When it comes to the design of a wave-frame,empirical design is always adopted domestic,which is relatively conservative on stiffness and intensity and prefer a bigger factor of safety,thus these bring many uncertainties to the wave-frame.In order to reduce the negative effect to the wave system,the analysis of the wave-frame based on ANSYS is executed to have a knowledge of the weakness and the deformation of various parts.On the permise of ensuring the stiffness and intensity,with the method of grouping and using different profile steel,the purpose is to reduce the mass snd the negative effect brought by mass,and achieve the goal of optimization.
