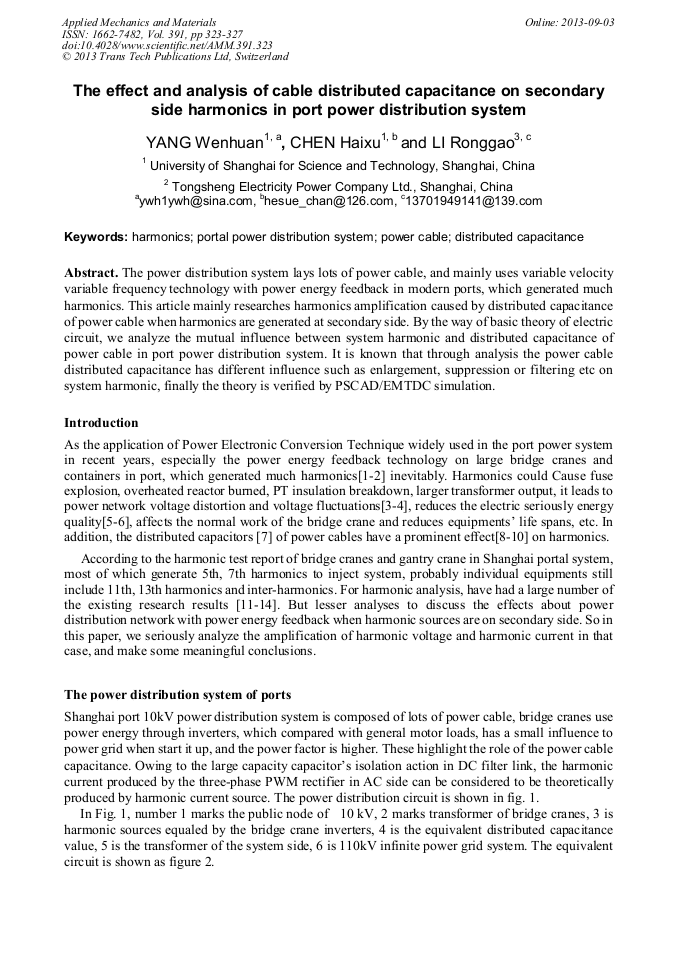

The Effect and Analysis of Cable Distributed Capacitance on Secondary Side Harmonics in Port Power Distribution System

Abstract:

The power distribution system lays lots of power cable, and mainly uses variable velocity variable frequency technology with power energy feedback in modern ports, which generated much harmonics. This article mainly researches harmonics amplification caused by distributed capacitance of power cable when harmonics are generated at secondary side. By the way of basic theory of electric circuit, we analyze the mutual influence between system harmonic and distributed capacitance of power cable in port power distribution system. It is known that through analysis the power cable distributed capacitance has different influence such as enlargement, suppression or filtering etc on system harmonic, finally the theory is verified by PSCAD/EMTDC simulation.

• Periodical: Applied Mechanics and Materials (Volume 391)
• Pages: 323-327
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.391.323
• Online since: September 2013
• Authors: Wen Huan Yang, Hai Xu Chen, Rong Gao Li
• Keywords: Distributed Capacitance, Harmonics, Portal Power Distribution System, Power Cable

References

[1] George J Wakileh, XU Zheng(trans), Power system harmonics: fundamentals, analysis and filter design. Beijing: China Machine Press, (2010).

[2] Arrillaga J, Watson N. R. Power System Harmonics. Wiley: Chichester. (2003).

[3] GB/T 12326-2008. Power quality—Voltage fluctuation and flicker[S]. Beijing: China Standard Press. (2008).

[4] Shmilovitz, D, On the definition of total harmonic distortion and its effects on measurement interpretation., IEEE Trans. Power Deliver. Vol. 1, 2005, p.526–528.

DOI: 10.1109/tpwrd.2004.839744

[5] GB/T 14549-1993. Quality of electric energy supply— Harmonics in public supply network[S]. Beijing: China Standard Press. (1993).

[6] GB/T 24337-2009. Power quality—Inter-harmonics in public supply network[S]. Beijing: China Standard Press. (2009).

[7] Chunjiang Wang, Electric wire and cable manual, Beijing: China Machine Press, (2001).

[8] Xiaodong Yuan, Xiaoping Zhang, Guoqing Tang. Three-phase harmonic power flow based power quality simulation and decision-making system, Automation of Electric Power System, vol. 29, 2005, pp.30-34.

[9] Liyi Chen, Wenyi Li, Desheng Chen, Distribution system harmonic magnification analysis and calculation, Automation of Electric Power System, vol. 19, 1995. pp.15-19.

[10] Jie Xu, Yangbo Yu, Analysis of Qujing 110kV electricity electrified railway harmonic hazard, Power System Technology, vol. 30, 2006. pp.505-508.

[11] Qionglin Li, Huijin Liu, Zhenhuan Zhang, Interharmonic analysis in the AC/DC/AC system based on intermodulation theory, Proceedings of the CSEE, vol. 34, 2007, pp.107-114.

[12] Shujuan Deng, Longfu Luo, Yong Li, Characteristic analysis on inter-harmonics and sub-Harmonics in the new type of industry converting system, Power System Technology, vol. 33, 2009, pp.28-43.

[13] Yamei Liu, Jin Hui, Honggeng Yang, Multilayer DFT interpolation correction approach for power system harmonic analysis, Proceedings of the CSEE, vol. 32, 2012, pp.182-188.

[14] Yao Chen, Yibin Tong, Xinmin Jin, A novel algorithm of SVPWM harmonic analysis based on PWM rectifier, Proceedings of the CSEE, vol. 27, 2007, pp.76-80.

[15] Caixia Yang, Kaipei Liu, Dongxu Wang, Harmonic Resonance Circuit's Modeling and Simulation, APPEEC 2009/IEEE Conference Publications, vol. 108, 2009, pp.1-5.

DOI: 10.1109/supergen.2009.5347906

[16] Wilsun Xu, Dahai Zhang, A modal analysis method for harmonic resonance assessment, Proceedings of the CSEE, vol. 25, 2005, pp.89-93.
