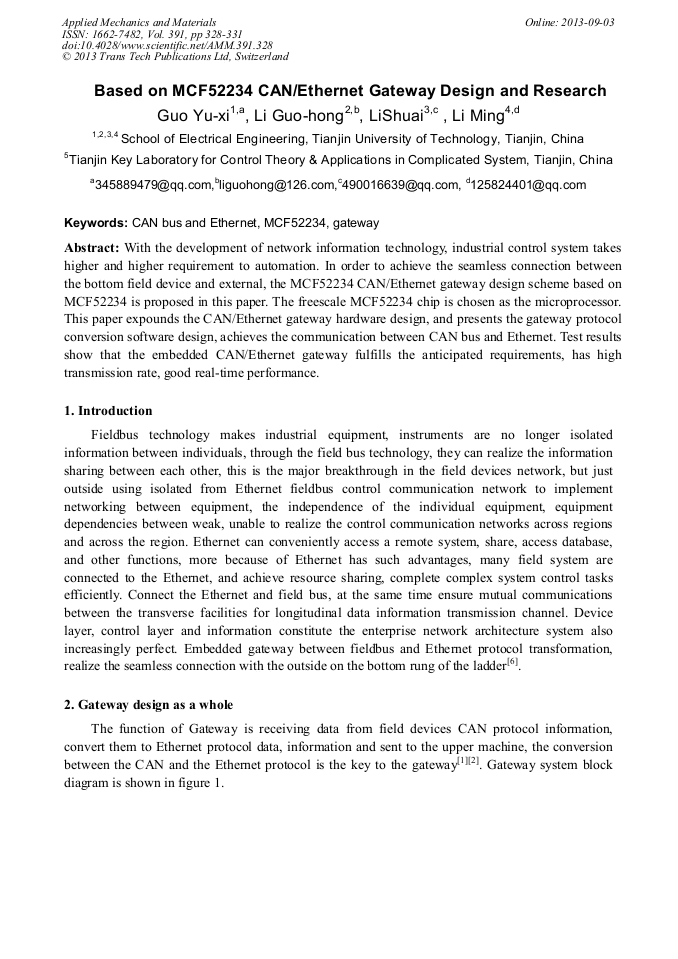

Based on MCF52234 CAN/Ethernet Gateway Design and Research

Abstract:

With the development of network information technology, industrial control system takes higher and higher requirement to automation. In order to achieve the seamless connection between the bottom field device and external, the MCF52234 CAN/Ethernet gateway design scheme based on MCF52234 is proposed in this paper. The freescale MCF52234 chip is chosen as the microprocessor. This paper expounds the CAN/Ethernet gateway hardware design, and presents the gateway protocol conversion software design, achieves the communication between CAN bus and Ethernet. Test results show that the embedded CAN/Ethernet gateway fulfills the anticipated requirements, has high transmission rate, good real-time performance.

• Periodical: Applied Mechanics and Materials (Volume 391)
• Pages: 328-331
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.391.328
• Online since: September 2013
• Authors: Yu Xi Guo, Guo Hong Li, Shuai Li, Ming Li
• Keywords: CAN Bus, Ethernet, Gateway, MCF52234

References

[1] Li Zhengjun: Field bus and its application technology, Mechanical Industry Publishing house, (2005).

[2] Zheng Kai, Zhao Hongwei , Based on the research of MPC565 of CAN bus intelligent node, embedded network technology application, 2009 No. 1.

[3] Zhang Dapeng, CAN bus and Ethernet interconnection key technology research, nanjing university of aeronautics and astronautics, (2006).

[4] Chen Guangsha, Ethernet/CAN bus network card based on DSP is designed, Harbin industrial university, 2007 No. 5.

[5] Li Guangxin, Qin Guihe, Liu WenJing, zhang dong, design and implementation of CAN bus gateway, journal of jilin university information science edition, 2010, No. 3.

[6] Sun Bai, Gateway based on embedded Ethernet and CAN bus design, dalian maritime university master's thesis, (2008).
