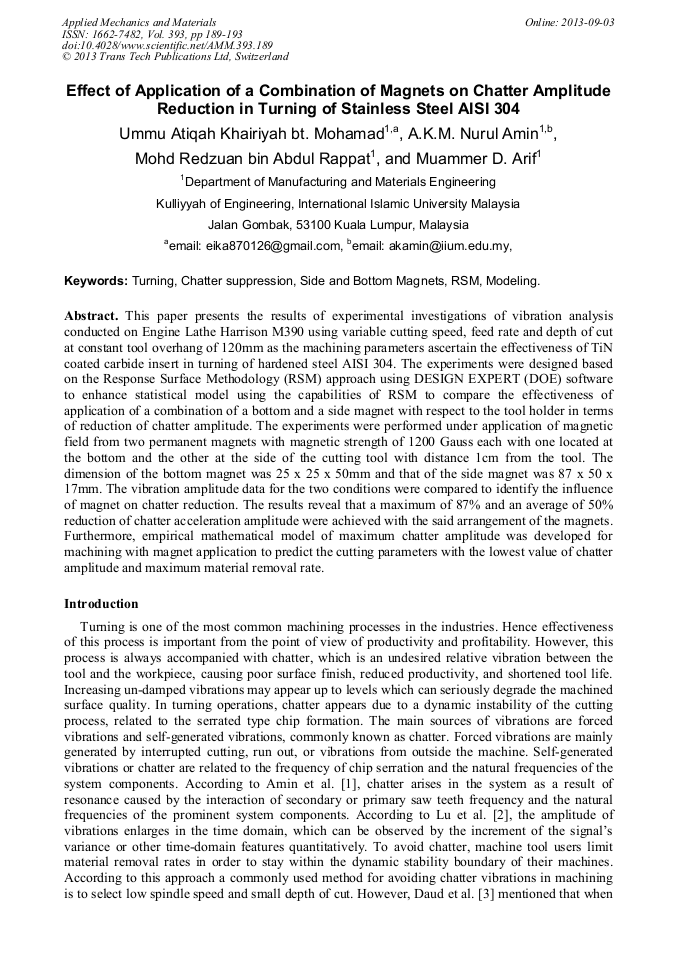

Effect of Application of a Combination of Magnets on Chatter Amplitude Reduction in Turning of Stainless Steel AISI 304

Abstract:

This paper presents the results of experimental investigations of vibration analysis conducted on Engine Lathe Harrison M390 using variable cutting speed, feed rate and depth of cut at constant tool overhang of 120mm as the machining parameters ascertain the effectiveness of TiN coated carbide insert in turning of hardened steel AISI 304. The experiments were designed based on the Response Surface Methodology (RSM) approach using DESIGN EXPERT (DOE) software to enhance statistical model using the capabilities of RSM to compare the effectiveness of application of a combination of a bottom and a side magnet with respect to the tool holder in terms of reduction of chatter amplitude. The experiments were performed under application of magnetic field from two permanent magnets with magnetic strength of 1200 Gauss each with one located at the bottom and the other at the side of the cutting tool with distance 1cm from the tool. The dimension of the bottom magnet was 25 x 25 x 50mm and that of the side magnet was 87 x 50 x 17mm. The vibration amplitude data for the two conditions were compared to identify the influence of magnet on chatter reduction. The results reveal that a maximum of 87% and an average of 50% reduction of chatter acceleration amplitude were achieved with the said arrangement of the magnets. Furthermore, empirical mathematical model of maximum chatter amplitude was developed for machining with magnet application to predict the cutting parameters with the lowest value of chatter amplitude and maximum material removal rate.

• Periodical: Applied Mechanics and Materials (Volume 393)
• Pages: 189-193
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.393.189
• Online since: September 2013
• Authors: Ummu Atiqah Khairiyah B. Mohammad, A.K.M. Nurul Amin, Mohd Redzuan Bin Abdul Rappat, Muammer D. Arif
• Keywords: Bottom Magnets, Chatter Suppression, Modeling, RSM, Side, Turning

References

[1] A.K.M. N Amin, I.H. Jaafar, A.U. Patwar, W.W.D. Zubaire, Role of discrete nature of chip formation and natural vibrations of system components in chatter formation during metal cutting, IIUM Engineering Journal, Vol. 11, No. 1 (2010).

DOI: 10.31436/iiumej.v11i1.53

[2] K. Lu, M. Jing, Y.Q. Zhang, H. Liu, Industrial applications of chatter stability prediction and monitoring system during turning processes, Proceedings of the 2011 IEEE International Conference on Mechatronics and Automation, China (2011).

DOI: 10.1109/icma.2011.5986274

[3] R. Daud, N.K. Hasfa, S.H. Tomadi, M.A. Hassan, K. Kadirgama, M.M. Noor, M.R.M. Rejab, Prediction of chatter in CNC machining based on dynamic cutting force for ball end milling, Proceedings of the International Multi Conference of Engineers and Computer Scientists 2009, Hong Kong, (2009).

[4] R.P. H, N. Faassen, J.A.J. Oosterling, H. Nijmeijer, Prediction of regenerative chatter by modeling and analysis of high-speed milling, International Journal of Machine Tools & Manufacture 43 (2003) 1437–1446.

DOI: 10.1016/s0890-6955(03)00171-8
