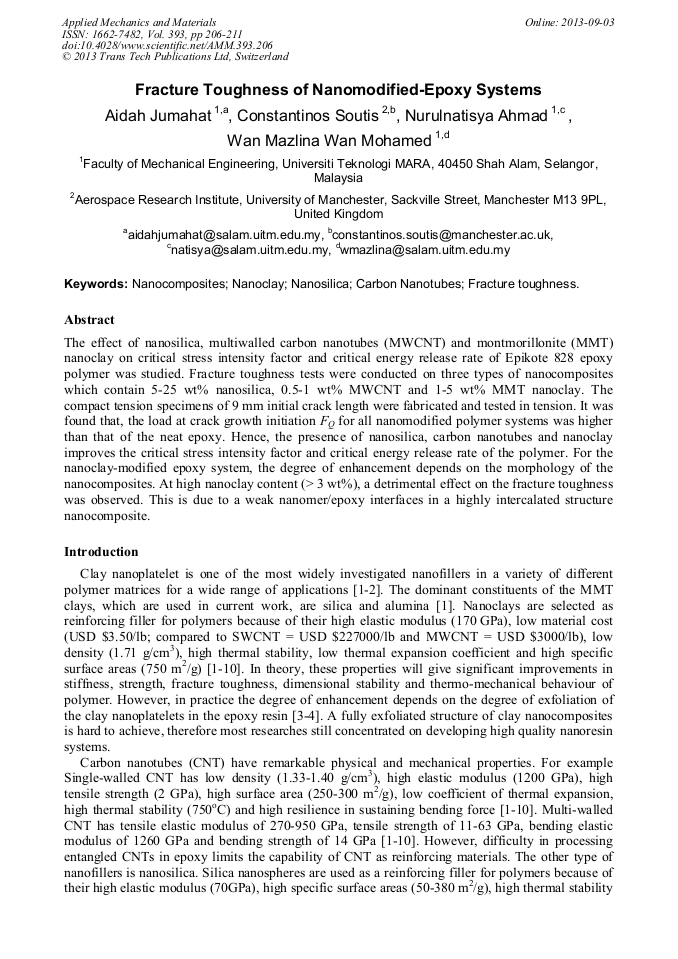

Fracture Toughness of Nanomodified-Epoxy Systems

Abstract:

The effect of nanosilica, multiwalled carbon nanotubes (MWCNT) and montmorillonite (MMT) nanoclay on critical stress intensity factor and critical energy release rate of Epikote 828 epoxy polymer was studied. Fracture toughness tests were conducted on three types of nanocomposites which contain 5-25 wt% nanosilica, 0.5-1 wt% MWCNT and 1-5 wt% MMT nanoclay. The compact tension specimens of 9 mm initial crack length were fabricated and tested in tension. It was found that, the load at crack growth initiation F_Q for all nanomodified polymer systems was higher than that of the neat epoxy. Hence, the presence of nanosilica, carbon nanotubes and nanoclay improves the critical stress intensity factor and critical energy release rate of the polymer. For the nanoclay-modified epoxy system, the degree of enhancement depends on the morphology of the nanocomposites. At high nanoclay content (> 3 wt%), a detrimental effect on the fracture toughness was observed. This is due to a weak nanomer/epoxy interfaces in a highly intercalated structure nanocomposite.

• Periodical: Applied Mechanics and Materials (Volume 393)
• Pages: 206-211
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.393.206
• Online since: September 2013
• Authors: Aidah Jumahat, Constantinos Soutis, Ahmad Nurulnatisya, Wan Mazlina Wan Mohamed
• Keywords: Carbon Nanotube (CN), Fracture Toughness, Nanoclay, Nanocomposite, Nanosilica

References

[1] T.J. Pinnavaia, G.W. Beall, Polymer-clay nanocomposites. John Wiley & sons, (2000).

[2] J.H. Koo, Polymer nanocomposites processing, characterization and applications, McGraw Hill, (2006).

[3] A. Jumahat, C. Soutis, F.R. Jones, A. Hodzic, Compressive behaviour of a nanoclay-modified aerospace grade epoxy polymer, Plastics, Rubber and Composites 41 (2012) 225-232.

DOI: 10.1179/1743289811y.0000000028

[4] A. Jumahat, C. Soutis, J. Mahmud, N. Ahmad, Compressive properties of nanoclay/epoxy nanocomposites, Procedia Engineering 41 (2012) 1607-1613.

DOI: 10.1016/j.proeng.2012.07.357

[5] A. Jumahat, C. Soutis, S.A. Abdullah, S. Kasolang, Tensile properties of nanosilica/epoxy nanocomposites, Procedia Engineering 41 (2012) 1634-1640.

DOI: 10.1016/j.proeng.2012.07.361

[6] A. Jumahat, C. Soutis, F.R. Jones, A. Hodzic, Effect of silica nanoparticles on compressive properties of an epoxy polymer, Journal of Materials Science 45 (2010) 5973-5983.

DOI: 10.1007/s10853-010-4683-1

[7] A. Jumahat, Effect of nanofillers on thermo-mechanical properties of polymers and composite laminates, University of Sheffield, United Kingdom, PhD thesis, (2011).

[8] F. Hussain, M. Hojjati, M. Okamoto, R.E. Gorga, Review article: Polymer-matrix nanocomposites, processing, manufacturing, and application: An overview, Journal of Composite Materials 40 (2006) 1511-1575.

DOI: 10.1177/0021998306067321

[9] A. Yasmin, J.J. Luo, J.L. Abot, I.M. Daniel, Mechanical and thermal behavior of clay/epoxy nanocomposites, Composites Science and Technology 66 (2006) 2415–2422.

DOI: 10.1016/j.compscitech.2006.03.011

[10] S.A. Abdullah, A. Jumahat, N.R. Abdullah, L. Frormann, Determination of shape fixity and shape recovery rate of carbon nanotube-filled shape memory polymer nanocomposites, Procedia Engineering 41 (2012) 1641-1646.

DOI: 10.1016/j.proeng.2012.07.362

[11] British Standard BS EN ISO 13586: 2000, Plastics–Determination of fracture toughness (G1C and K1C) – Linear elastic fracture mechanics (LEFM) approach.

DOI: 10.3403/30340788
