HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 393Co-Fe Nanoparticles Coated on Copper Substrate:...

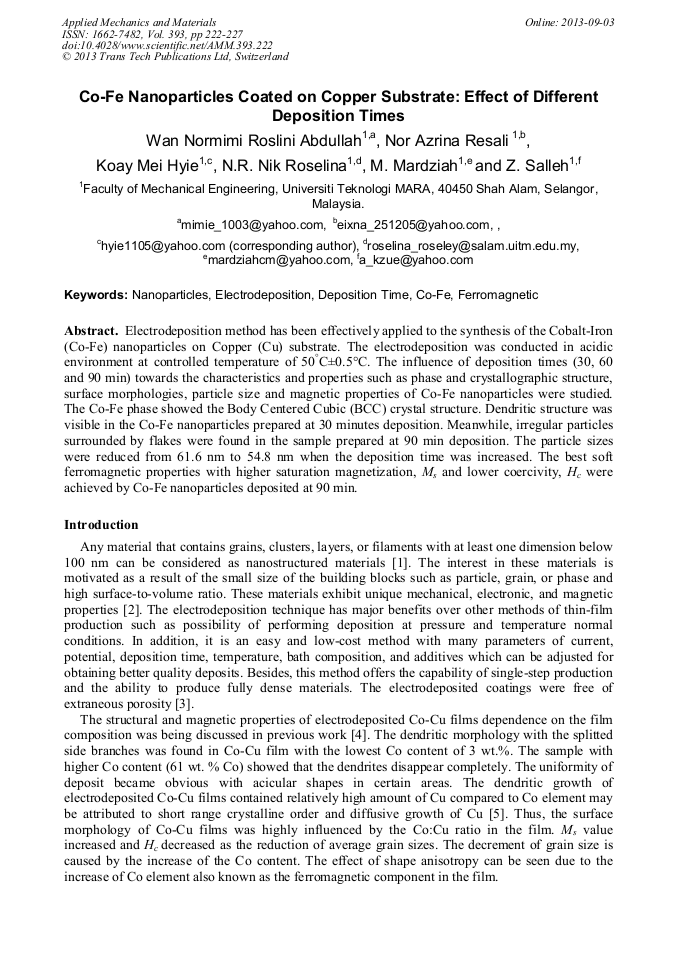

Co-Fe Nanoparticles Coated on Copper Substrate: Effect of Different Deposition Times

Abstract:

Electrodeposition method has been effectively applied to the synthesis of the Cobalt-Iron (Co-Fe) nanoparticles on Copper (Cu) substrate. The electrodeposition was conducted in acidic environment at controlled temperature of 50^°C±0.5°C. The influence of deposition times (30, 60 and 90 min) towards the characteristics and properties such as phase and crystallographic structure, surface morphologies, particle size and magnetic properties of Co-Fe nanoparticles were studied. The Co-Fe phase showed the Body Centered Cubic (BCC) crystal structure. Dendritic structure was visible in the Co-Fe nanoparticles prepared at 30 minutes deposition. Meanwhile, irregular particles surrounded by flakes were found in the sample prepared at 90 min deposition. The particle sizes were reduced from 61.6 nm to 54.8 nm when the deposition time was increased. The best soft ferromagnetic properties with higher saturation magnetization, M_s and lower coercivity, H_c were achieved by Co-Fe nanoparticles deposited at 90 min.

You might also be interested in these eBooks

Advances in Manufacturing and Mechanical Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 393)

Pages:

222-227

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.393.222

Citation:

Cite this paper

Online since:

September 2013

Authors:

Wan Normimi Roslini Abdullah, Nor Azrina Resali, Koay Mei Hyie, N.R. Nik Roselina, C.M. Mardziah, Z. Salleh

Keywords:

Co-Fe, Deposition Time, Electrodeposition, Ferromagnetic, Nanoparticle

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] C. N. R. Rao, A. Muller, and A. K. Cheetham, The Chemistry of Nanomaterials. Hoboken, NJ: Wiley-VCH Verlag, 1 (2002) 1.

Google Scholar

[2] N. S. Nalwa, Nanostructured Materials and Nanotechnology. New York: Academic, 2002, 1.

Google Scholar

[3] A. Robertson, U. Erb and G. Palumbo, Practical Applications for Electrodeposited Nanocrystalline Materials, Nanostructured Materials 12 (1999) 1035.

DOI: 10.1016/s0965-9773(99)00294-9

Google Scholar

[4] O. Karaagac, H. Kockar, and M. Alper, Composition Dependence of Structural and Magnetic Properties of Electrodeposited Co-Cu Films, IEEE Transactions on Magnetics 46 (12) (2010) 3973-3977.

DOI: 10.1109/tmag.2010.2073479

Google Scholar

[5] N. D. Nikolic, K. I. Popov, L. J. Pavlovic, and M. G. Pavlovic, Morphologies of Copper Deposits Obtained by Electrodeposition at High Overpotentials, Surface Coating Technology 201 (2006) 560–566.

DOI: 10.1016/j.surfcoat.2005.12.004

Google Scholar

[6] Y. Zhu, H. Zheng, Q. Yang, A. Pan, Z. Yang and Y. Qian, Growth of Dendritic Cobalt Nanocrystals at Room Temperature, Journal of Crystal Growth 260 (2004) 427–434.

DOI: 10.1016/j.jcrysgro.2003.08.037

Google Scholar

[7] M. Alper, H. Kockar, T. Sahin, and O. Karaagac, Properties of Co-Fe films: Dependence of Cathode Potentials, IEEE Transactions Magnetic 46 (2) (2010) 390–393.

DOI: 10.1109/tmag.2009.2033711

Google Scholar

[8] I. Z. Rahman, M. V. Khaddem-Mousavi, A. A. Gandhi, T. F. Lynch and M. A. Rahman, Growth of Electrodeposited Ni-Co and Fe-Co Magnetic Films on Cu Substrates, Journal of Physics: Conference Series 61 (2007) 523–528.

DOI: 10.1088/1742-6596/61/1/106

Google Scholar

[9] G. Herzer, Magnetomechanical Damping in Amorphous Ribbons with Uniaxial Anisotropy, Journal of Materials Engineering 2 (2) (1993) 193-198.

DOI: 10.1016/s0921-5093(96)10697-3

Google Scholar

[10] G. Fortas, S. Sam, Z. Fekih, N. Gabouze, Electrodeposition of CoNiFe alloys on n-type Silicon, Materials Science Forum 609 (2009) 207-212.

DOI: 10.4028/www.scientific.net/msf.609.207

Google Scholar

[11] L. Ricq et al., Influence of Sodium Saccharine on the Electrodeposited and Characterization of CoFe Magnetic Films, Surface and Coatings Technology 138 (2001) 278-283.

DOI: 10.1016/s0257-8972(00)01170-1

Google Scholar

[12] H. Karami and E.M. Zadeh, Synthesis of Cobalt Nanorods by the Pulsed Current Electrochemical Method, International Journal Electrochemical Science 5 (2010) 1032–1045.

Google Scholar

[13] X. Liu, R. Yi, Y. Wang, G. Qiu, N. Zhang, and X. Li, Highly Ordered Snowflakelike Metallic Cobalt Microcrystal, Journal Physical Chemistry C 111 (2006) 163-167.

DOI: 10.1021/jp0643597

Google Scholar

[14] I.A. Ovid'ko, C.S. Pande and R.A. Masumura, Grain boundaries in Nanomaterials in: Y. Gogotsi (Eds. ), Nanomaterials Handbook, CRC Press, (2006).

DOI: 10.1201/9781420004014.ch18

Google Scholar
