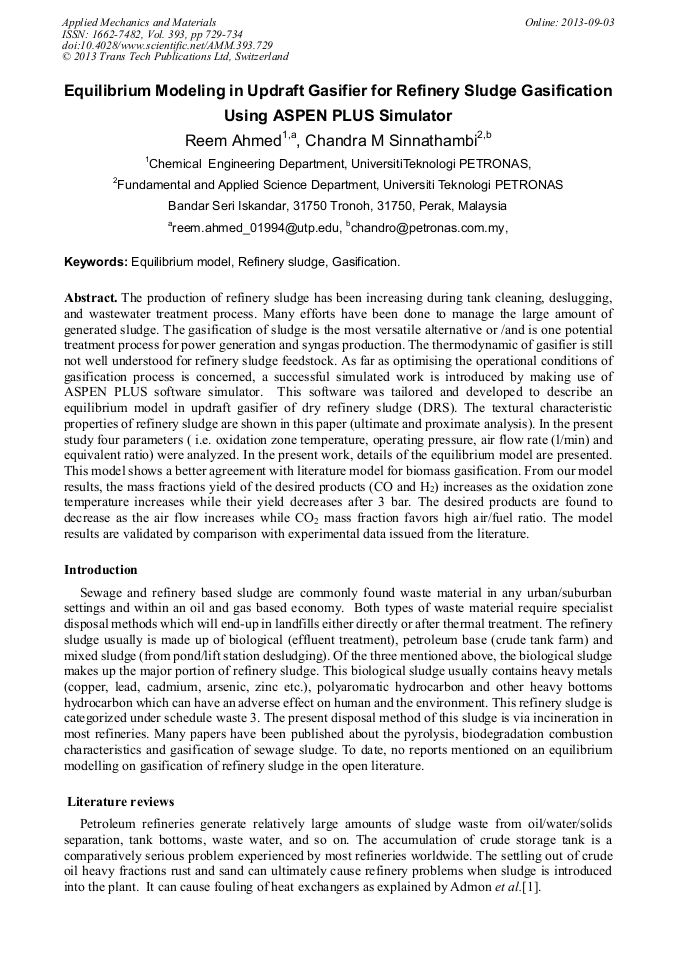

Equilibrium Modeling in Updraft Gasifier for Refinery Sludge Gasification Using ASPEN PLUS Simulator

Abstract:

The production of refinery sludge has been increasing during tank cleaning, deslugging, and wastewater treatment process. Many efforts have been done to manage the large amount of generated sludge. The gasification of sludge is the most versatile alternative or /and is one potential treatment process for power generation and syngas production. The thermodynamic of gasifier is still not well understood for refinery sludge feedstock. As far as optimising the operational conditions of gasification process is concerned, a successful simulated work is introduced by making use of ASPEN PLUS software simulator. This software was tailored and developed to describe an equilibrium model in updraft gasifier of dry refinery sludge (DRS). The textural characteristic properties of refinery sludge are shown in this paper (ultimate and proximate analysis). In the present study four parameters ( i.e. oxidation zone temperature, operating pressure, air flow rate (l/min) and equivalent ratio) were analyzed. In the present work, details of the equilibrium model are presented. This model shows a better agreement with literature model for biomass gasification. From our model results, the mass fractions yield of the desired products (CO and H₂) increases as the oxidation zone temperature increases while their yield decreases after 3 bar. The desired products are found to decrease as the air flow increases while CO₂ mass fraction favors high air/fuel ratio. The model results are validated by comparison with experimental data issued from the literature.

• Periodical: Applied Mechanics and Materials (Volume 393)
• Pages: 729-734
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.393.729
• Online since: September 2013
• Authors: Reem Ahmed, Mohan Sinnathambi Chandra
• Keywords: Equilibrium Model, Gasification, Refinery Sludge

References

[1] Admon S , Green. M , Avnimelech Y . Biodegradation Kinetics of Hydrocarbons in Soil during Land Treatment of Oily Sludge, Bioremediation Journal [J], 2001, 5(3): 193–209.

DOI: 10.1080/20018891079285

[2] Nikoo, M.B. and N. Mahinpey. Simulation of biomass gasification in fluidized bed reactor using ASPEN PLUS. Biomass Bioenergy, 32: 1245-1254, (2008).

DOI: 10.1016/j.biombioe.2008.02.020

[3] Atnaw, S.M. and S.A. Sulaiman. Modeling and simulation study of downdraft gasifier using oil-palm fronds, proceedings of the 3rd International conference on Energy and Enviroment, Dec. 7-8, Malacca, Malaysia, pp: 325-330, (2009).

DOI: 10.1109/iceenviron.2009.5398634

[4] Samson Mehbib Atnaw, Shaharin Anwar Sulaiman and Suzana Yusup A simulation study of downdraft gasification of oil-palm fronds using ASPEN PLUS, J. Applied Sci., 11 (11): 1913-1920, (2011).

DOI: 10.3923/jas.2011.1913.1920

[5] Khadse, A., P. Parulekar, P. Aghalayam and A. Ganesh. Equilibrium model for Biomass gasification. Department of chemical Engineering, Bombay, India, (2006).

[6] Mathieu, P. and R. Dubuisson. Performance analysis of a biomass gasifier. Energy Conversion Manage., 43(2002): 1291-1299.

DOI: 10.1016/s0196-8904(02)00015-8

[7] Zainal, Z.A., R. Ali, C.H. Lean and K.N. Seetharamu, 200. Prediction of performance of a downdraft gasifier using equilibrium modeling for different biomass materials. Energy Conversion Manage., 43: 1499-151.

DOI: 10.1016/s0196-8904(00)00078-9

[8] Konda, R.E., Sulaiman. S.A., and Ariwahjoedi. B. Syngas production from gasification of Oil palm fronds with an Updraft gasifier. J. Applied Sci., 11 (11): 1812-5654, (2012).

DOI: 10.3923/jas.2012.2555.2561

[9] Lijun, W., C.L. Weller, D.D. Jones and M.A. Hanna. Review: contemporary issues in thermal gasification of biomass and its application to electricity and fuel production. Biomass bioenergy, 32(2008): 573-581.

DOI: 10.1016/j.biombioe.2007.12.007

[10] Higman, C. and M. Van Der Burgt. Gasaification 2nd Edn, Gulf Professional Publishing, Barlington, MA, (2008).
